House Plan 4702: MERCEDES

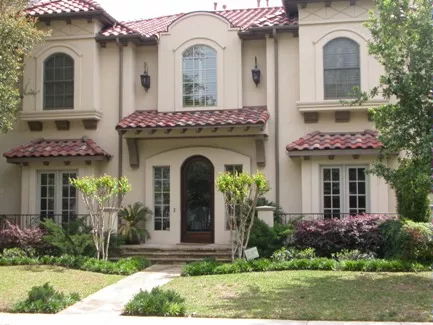

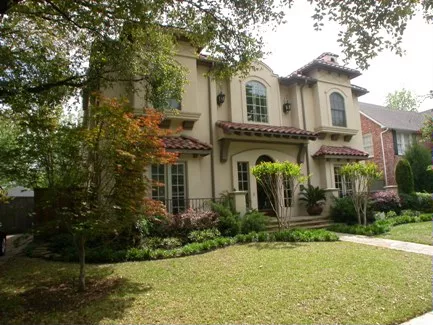

You will feel right at home when you enter this stunning Tuscan style home. In the two story foyer, your eyes are immediately drawn to the spiral staircase. The foyer is flanked by the spacious living room and study. Beyond the foyer through a barrel vaulted area, an elevator is an alternate way to get to the second floor.  Read more >

House Plan Details

Sq. Ft.
5,131
Beds
5
Baths
5.1
Stories
2
Garages
2
Width
49' 6"
Depth
75' 1"
1st Floor
2,497
2nd Floor
2,634
Garage
457
Porch
249
Select Plan Package
Plan PDF Package
$2420
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $2420

PLAN IMAGES

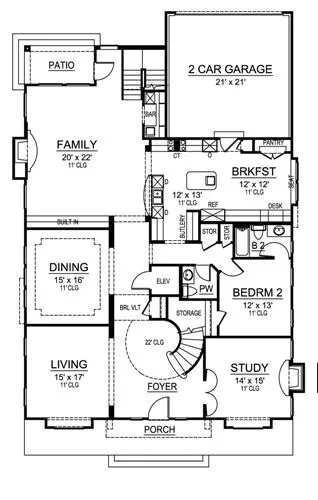

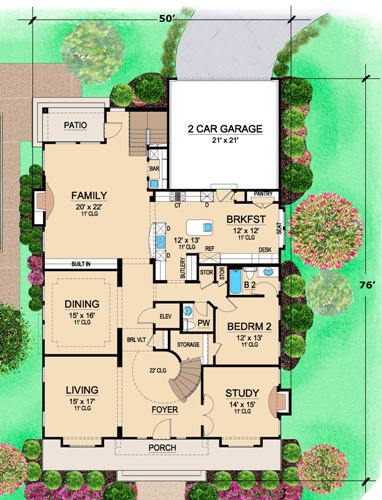

First Floor

First Floor
© copyright by designer

Plan Details

Basic Information
Bedrooms: 5
Bathrooms: 5.1
Garage: 2
Stories: 2
Exterior Style
Mediterranean
Tuscan
Dimensions
Width: 49' 6"
Height: 34' 5"
Depth: 75' 1"
Heated Living Space
Total Sq. Ft: 5,131
1st Floor: 2,497
2nd Floor: 2,634
Unheated Living Space
Garage: 457
Porch: 249
Patio: 77
Ceiling
Upper Ceiling Ft: 10
Main Ceiling Ft: 11
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Double Vanity Sink
His and Hers Master Closets
Master Bdrm Upstairs
Sitting Area
Split Bedrooms
Walk-in Closet
Kitchen Features
Butler's Pantry
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Additional Room Features
2 Story Volume
Arches
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
In-law Suite
Rec Room
Vaulted Ceilings
Garage Location
Rear
Garage Features
Rear-entry
Lot Features
Suited for corner lot
Suited for narrow lot
Roof Pitch
Primary: 8
Secondary: 5
