Sq Ft
5,193 FT²
Bed
0
Bath
0
Stories
2
Garage
3
Depth
75'
Width
60'
On Sale
$2,057.00
$2,420.00
© copyright by designer
View All 5 Images | Photographs may reflect modified home
Sq Ft
5,193 FT²
From
$2,057.00
Bed
0
Bath
0
Stories
2
Garage
3
Depth
75'
Width
60'

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

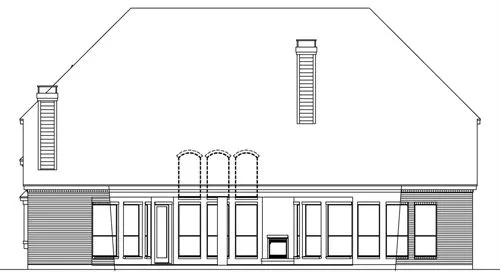

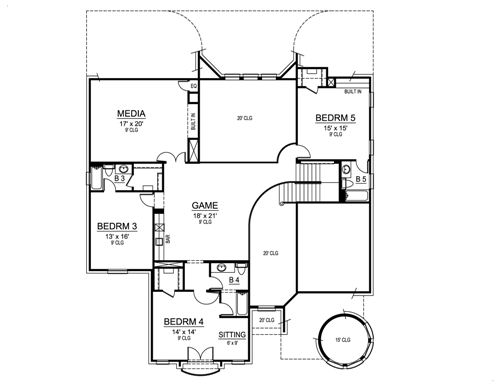

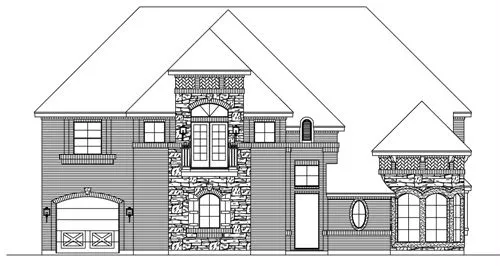

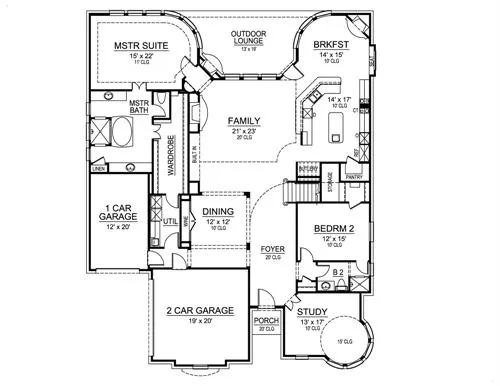

This luxury starter castle has three total alternative elevations, Fairfax Grove, Fairfax Ridge and Fairfax Valley. When you enter through this two-story foyer, your eyes are immediately drawn to the elegant dining room with direct access to the wine room. This estate house plan is wide open, as you see when you enter. The quiet study has a bayed area, next to the large bank of windows up the 15' ceiling. The family gathering rooms consisting of the kitchen, dining room, and family room are open to one another, separated only by the free standing eating bar in the kitchen. The large bank of windows on the back of this luxury house plan has views onto the outdoor lounge. The master suite boasts a lavish master bath with separate shower and tub, his and her vanities, a large wardrobe and utility room. Access to the one-car garage is easily accessible from the master suite. A two-car garage completes this level of this luxury estate house plan. Upstairs three family bedrooms with full baths and walk-in closets flank the game room with built-ins and storage space. A media room completes this level of this luxury estate.


FEATURES & DETAILS

Kitchen features
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Foundation Options
Slab
Additional features
2 Story Volume
Dining Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Vaulted Ceilings
Garage Location
Side
Garage Options
Attached
Side-entry
6,192 Ft
2
Total Structure
5,193 Ft
2
Total Heated
3,145 Ft
2
1st Floor
2,048 Ft
2
2nd Floor
3
Garage
2
Stories
60' 0"
Width
75' 0"
Depth
35' 0"
Height
10' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
12
Primary Roof Pitch
8
Secondary Roof Pitch
Single
Dwelling Number

Unheated Living Space
699 Ft
2
Garage


Plan Package Options

 Select Plan Package
$2,180
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,180
$2,360
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,360
$3,270
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,270
 Need To Reverse Plan? (Optional)
$200
Readable Reverse

Reverse house plans with readable text and dimensions

$200
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
