Sq Ft
5,293 FT²
Bed
5
Bath
5.5
Stories
2
Garage
3
Depth
75'
Width
60'
On Sale
$2,057.00
$2,420.00
© copyright by designer
View All 5 Images | Photographs may reflect modified home
Sq Ft
5,293 FT²
From
$2,057.00
Bed
5
Bath
5.5
Stories
2
Garage
3
Depth
75'
Width
60'

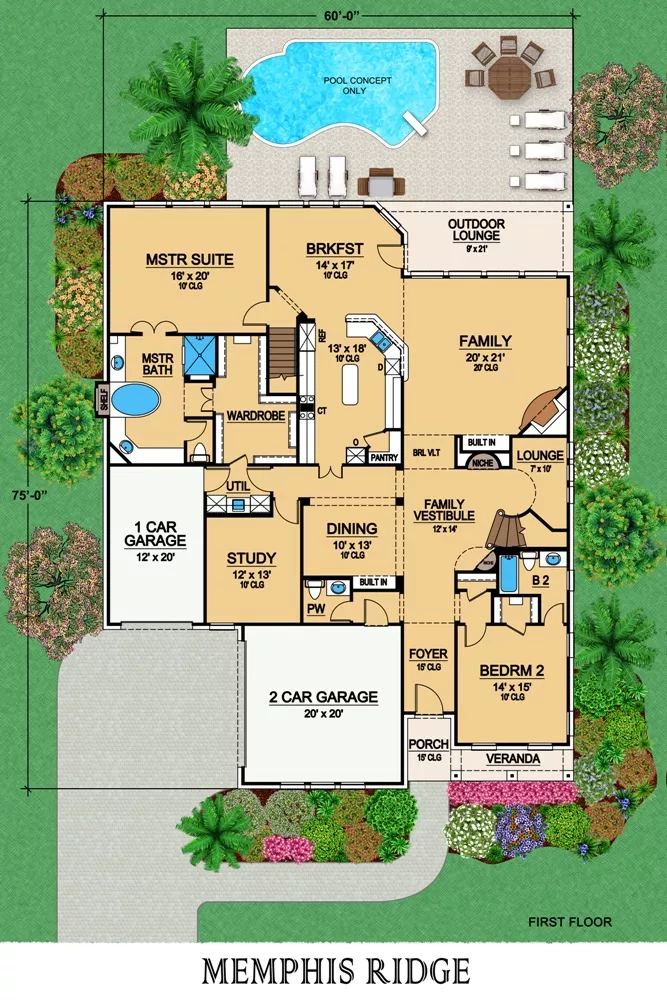

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

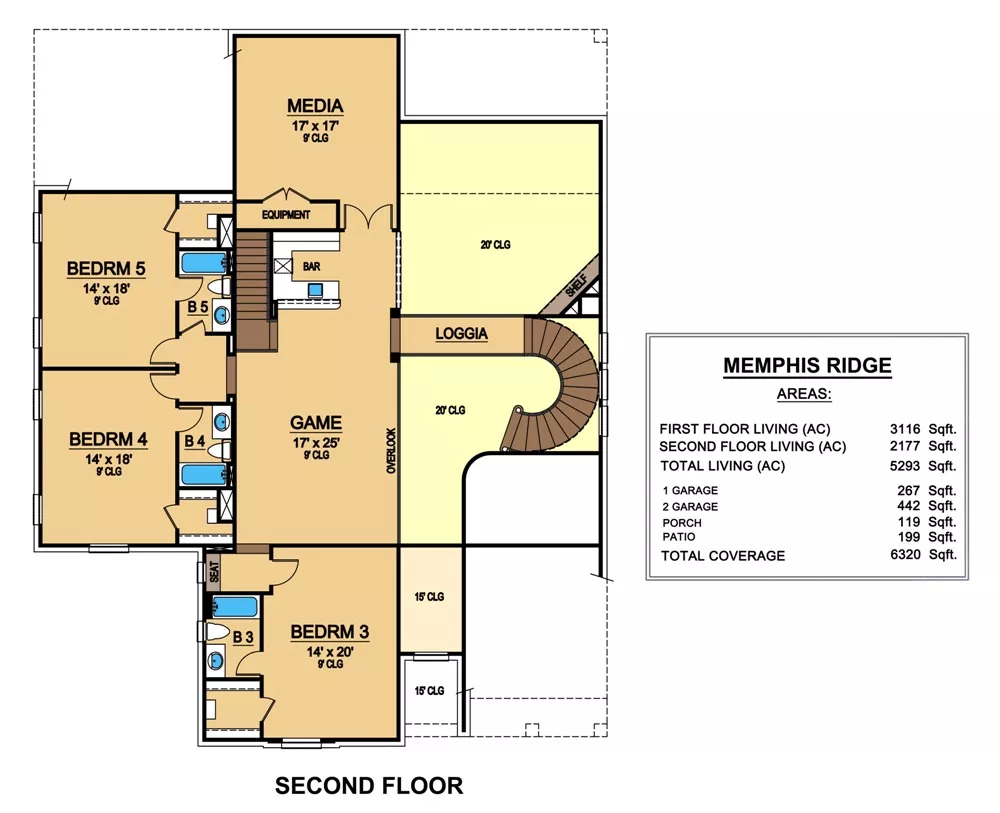

Feel right at home as you walk into this stunning European luxury mansion. The 15' tall foyer opens to a family vestibule with a corner lounge perfect for reading your favorite books, and is covered by the curved stairs leading to the second level. Large decorative pillars define the elegant dining room, separating it from the family vestibule. Through the barrel vault off the family vestibule, is the family room with a corner fireplace and a built-in. In the kitchen is a free-standing island and a breakfast bar adding counter space to this gourmet kitchen, while having a view of the family and breakfast rooms. The spacious master suite boasts a lavish master bath complete with his and hers vanities, a large wardrobe, and separate shower and bathtub. A door from the wardrobe leads to the utility room, study and the one-car garage. A front family bedroom with large walk-in closet, private full bath, and veranda views, can be converted to an in-law suite. A two-car garage completes this level of this mansion house plan. The second floor houses three family bedrooms, all offering walk-in closets and private full bathrooms. They are accompanied with a bar, game room, media room that features an equipment closet, and a loggia for overlook views to below.


FEATURES & DETAILS

Kitchen features
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Bedroom features
Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Exterior features
Front Porch
Rear Porch
Foundation Options
Slab
Lot Options
Suited for corner lot
Additional features
Dining Room
Family Room
Fireplace
Home Office
Laundry 1st Fl
Library/Media Rm
Garage Location
Front
Garage Options
Attached
Front-entry
Side-entry
6,320 Ft
2
Total Structure
5,293 Ft
2
Total Heated
3,116 Ft
2
1st Floor
2,177 Ft
2
2nd Floor
5
Bedrooms
5.5
Bathrooms
3
Garage
2
Stories
60' 0"
Width
75' 0"
Depth
35' 0"
Height
10' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
12
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
709 Ft
2
Garage


Plan Package Options

 Select Plan Package
$2,180
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,180
$2,360
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,360
$3,270
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,270
 Need To Reverse Plan? (Optional)
$200
Readable Reverse

Reverse house plans with readable text and dimensions

$200
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
