Sq Ft
5,108 FT²
Bed
3
Bath
3.5
Stories
1
Garage
2
Depth
103'
Width
115'
On Sale
$2,057.00
$2,420.00
© copyright by designer

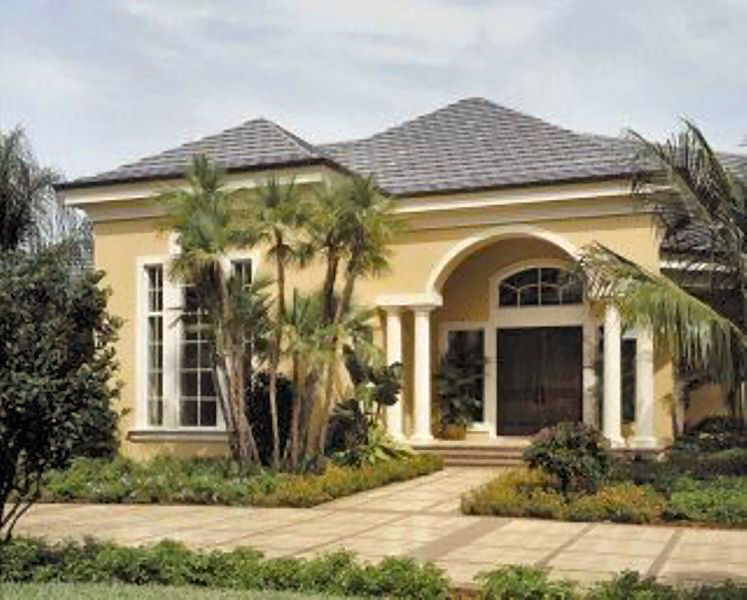

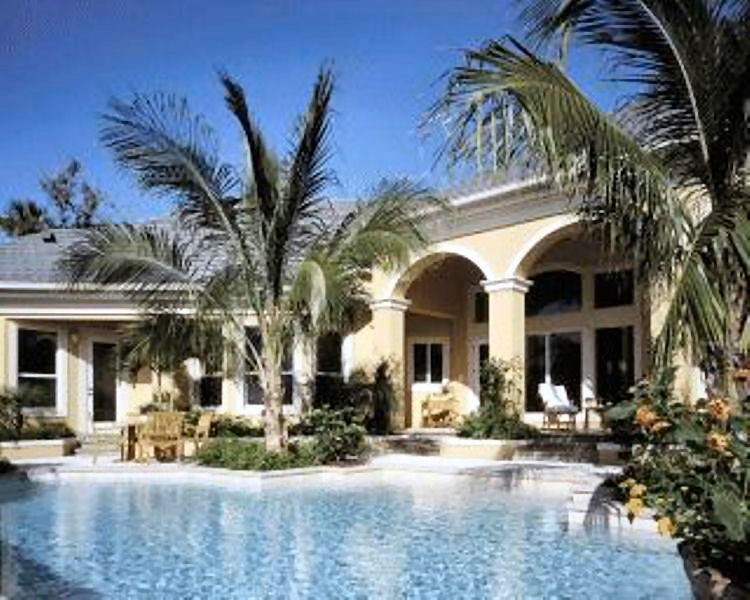

View All 4 Images | Photographs may reflect modified home
Sq Ft
5,108 FT²
From
$2,057.00
Bed
3
Bath
3.5
Stories
1
Garage
2
Depth
103'
Width
115'

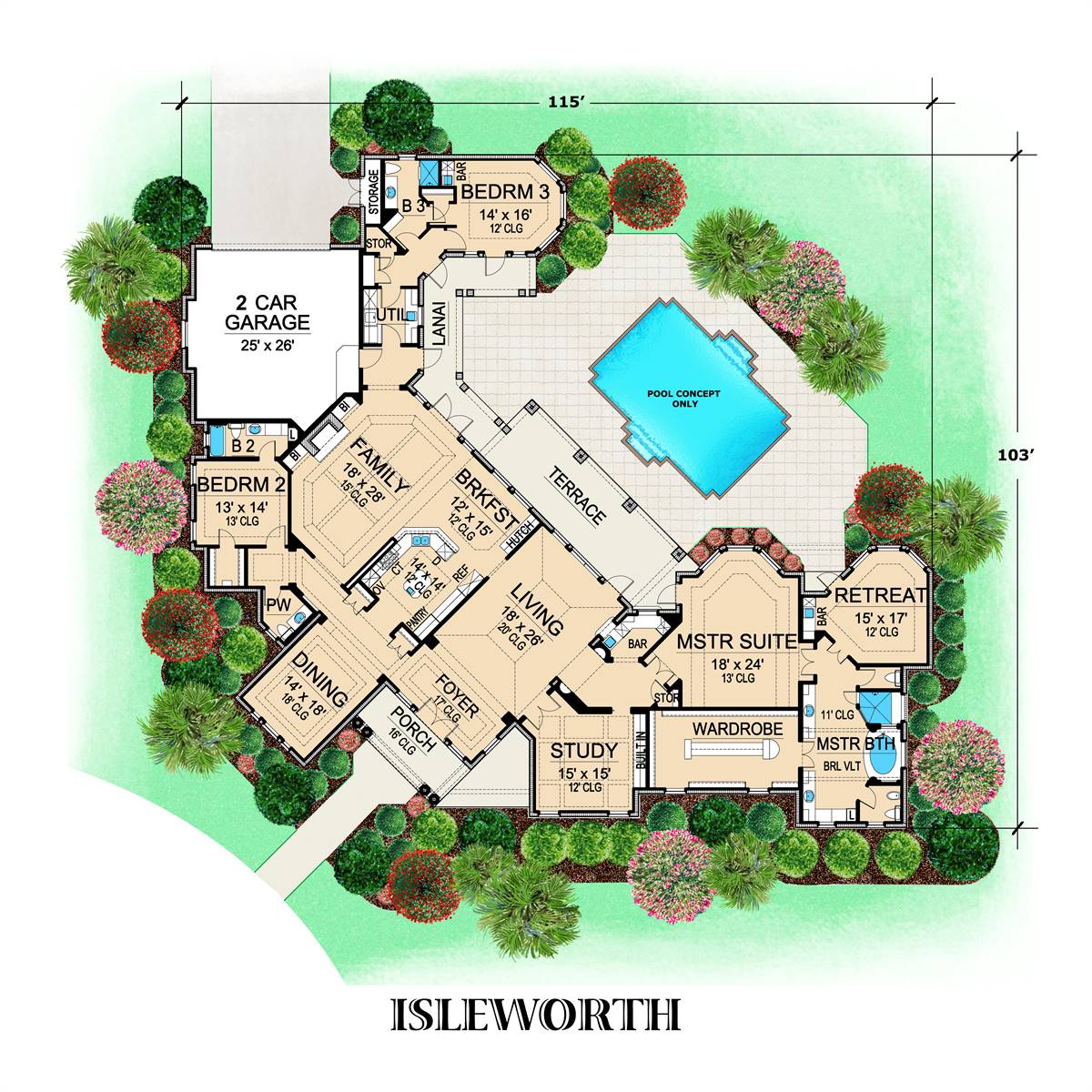

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

This Mediterranean luxury mansion house plan has a wonderful flow for family living. Interesting ceiling detail throughout adds to the architectural value of this design; whether it's trey, vaulted, barrel vault, or coffered, all these styles enhance the height and size of these rooms. The foyer opens to a large living room with its large bank of windows and door that leads to the terrace. Large decorative pillars surround the lanai and terrace. Off the living room through French doors is the quiet study with built-ins. A formal, elegant dining room lads into the kitchen and pantry for ease in serving. The large kitchen breakfast bar is shared with the family room and breakfast area. The breakfast area has a built-in hutch to store your favorite dishes and crystal, while the family room offers built-in bookcases, a warming fireplace, and French doors to the lanai. Two private bedrooms with private baths and walk-in closets share this rear wing with a utility room and one-car garage. Outside the elegant master suite is a bar, so grab a glass of wine come on in. The bayed sitting area in the master suite offers an open view to the great outdoors. A quiet retreat offers an entrance to the outdoor (concept) pool area, a private bar, a lavish bath that boats his and hers vanities, separate shower and garden tub, and large wardrobe complete this luxury mansion house plan.


FEATURES & DETAILS

Kitchen features
Kitchen Island
Nook / Breakfast Area
Bedroom features
Master Bdrm Main Floor
Sitting Area
Split Bedrooms
Exterior features
Front Porch
Foundation Options
Slab
Additional features
Bonus Room
Family Room
Fireplace
Formal LR
Foyer
Laundry 1st Fl
Garage Location
Rear
Garage Options
Attached
6,768 Ft
2
Total Structure
5,108 Ft
2
Total Heated
3
Bedrooms
3.5
Bathrooms
2
Garage
1
Stories
115' 0"
Width
103' 0"
Depth
28' 0"
Height
11' 0"
Main Floor Ceiling
8" Block/Wood
Framing
Combination
Roof Framing
8
Primary Roof Pitch
5
Secondary Roof Pitch
Single
Dwelling Number

Unheated Living Space
698 Ft
2
Garage
Exterior Styles
Collections


Plan Package Options

 Select Plan Package
$2,180
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,180
$2,360
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,360
$3,270
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,270
 Need To Reverse Plan? (Optional)
$200
Readable Reverse

Reverse house plans with readable text and dimensions

$200
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
