Sq Ft
5,057 FT²

Beds
5

Baths
4.5

Stories
2

Garage
3

Depth
100'

Width
78'
On Sale
$1,936.00
$2,420.00
© copyright by designer

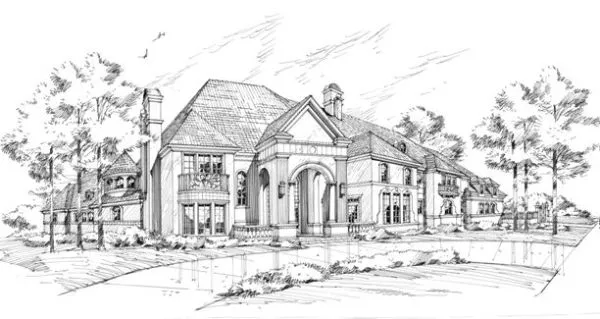

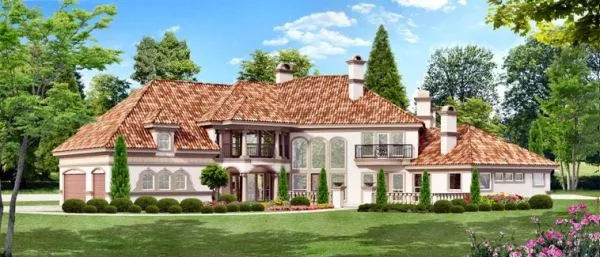

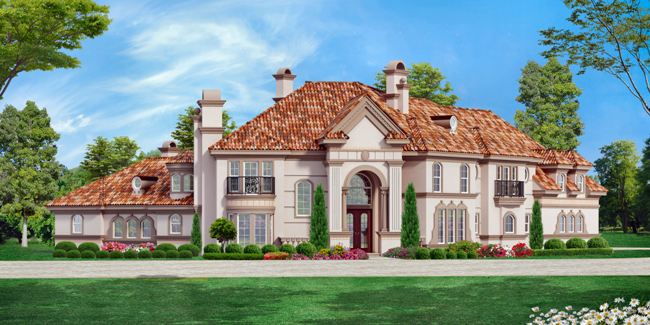

View All 3 Images | Photographs may reflect modified home
Sq Ft
5,057 FT²
From
$1,936.00
Beds
5
Baths
4.5
Stories
2
Garage
3
Depth
100'
Width
78'

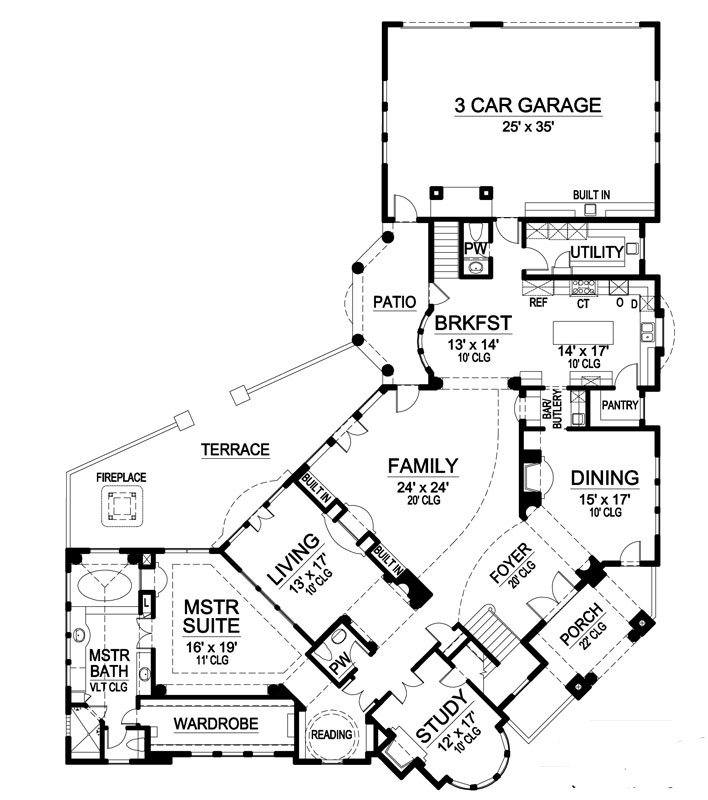

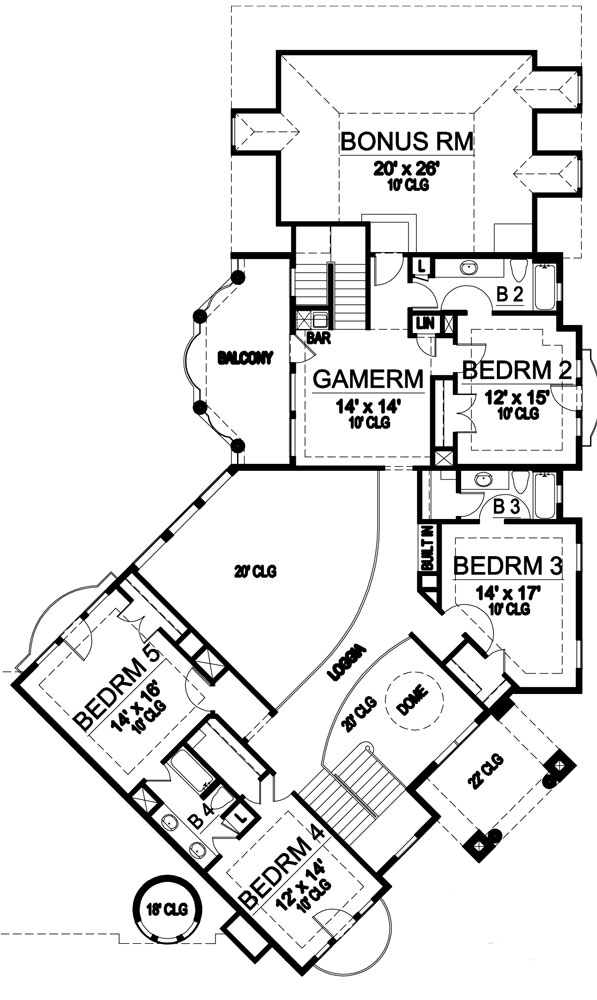

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

This Tuscan-style mansion house plan has many elegant amenities. Through the private front porch double doors the open two-story foyer with dome ceiling leads into the family room, offering a dramatic view. The foyer is flanked by a cozy study with bayed windows and a warming fireplace, and an elegant dining room with direct access to the bar/butlery, kitchen and pantry for ease in serving. You'll enjoy having guests for dinner with sparking logs in the fireplace. A two-way fireplace between the living room and family room offers warmth to the already stunning area. The terrace can be accessed through the family room or living room, and with its fireplace, will increase your outdoor time to be year-around. Separated only by large decorative pillars, the family room leads into the kitchen and breakfast rooms that are open to one another. Enjoy a good book in the reading room under the circular trey ceiling with a window for a view of the garden. The master suite offers a trey ceiling with a vaulted master bath. A separate shower and garden tub share the master bath with his and her vanities. The large wardrobe is accessible through the bathroom. Off the garage is a laundry room and powder room. Upstairs there are four bedrooms - two share a Jack and Jill bath, and two have full baths. All bedrooms have closets and trey ceilings, full baths and closets. Three of the four bedrooms offer access to their private balconies. A large bonus room, game room with bar, large balcony, and loggia offer great views to the main floor and complete this level of this luxury mansion house plan.


FEATURES & DETAILS

Kitchen features
Butler's Pantry
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry
Bedroom features
Double Vanity Sink
Primary Bdrm Main Floor
Walk-in Closet
Exterior features
Covered Front Porch
Rear Porch
Foundation Options
Slab
Additional features
Dining Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Garage Location
Rear
Garage Options
Attached
Oversized
7,084 Ft
2
Total Structure
5,057 Ft
2
Total Heated
3,379 Ft
2
1st Floor
1,678 Ft
2
2nd Floor
5
Bedrooms
4.5
Bathrooms
3
Garage
2
Stories
78' 0"
Width
100' 0"
Depth
36' 0"
Height
10' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
8
Primary Roof Pitch
11
Secondary Roof Pitch
Single
Dwelling Number

Unheated Living Space
938 Ft
2
Garage
591 Ft
2
Bonus Room
Exterior Styles
Collections


Plan Package Options

 Select Plan Package
Sale: $1,744
PDF Single Build
$2,180

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $1,744
Sale: $1,888
5 Printed Sets
$2,360

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $1,888
Sale: $2,616
CAD Single Build
$3,270

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $2,616
 Need To Reverse Plan? (Optional)
$200
Readable Reverse

Reverse house plans with readable text and dimensions

$200
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
