Search Plans


Sq Ft
5,067 FT²

Beds
3

Baths
3

Stories
2

Garage
3

Depth
125'

Width
50'
From
$2,420.00
© copyright by designer

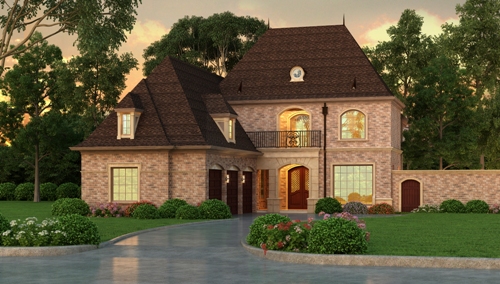

View All 5 Images | Photographs may reflect modified home
Sq Ft
5,067 FT²
From
$2,420.00
Beds
3
Baths
3
Stories
2
Garage
3
Depth
125'
Width
50'

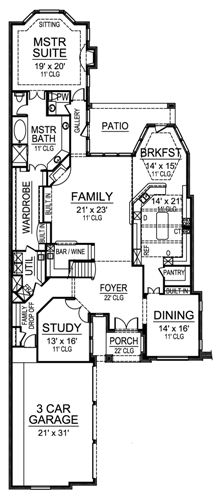

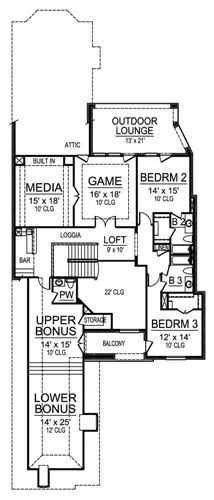

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

This is a Texas-inspired luxury house plan, designed for a zero lot line. The stunning two-story porch opens to a two-story foyer. On one side lies a quiet study. On the other side, the elegant dining room with built-ins and double doors leads to the pantry and kitchen for ease in serving. The family gathering area consists of the large family room with built-ins and a corner fireplace. The kitchen boasts a large breakfast bar and free-standing island for plenty of counter space. The breakfast area has direct access to the patio. The family room also hosts the bar/wine room. Off the family room is a gallery with the second door to the patio. The gallery leads to the master suite with bayed sitting area and warming fireplace. Through the double doors into the lavish master bath are his and hers sinks, a separate shower, tub, and a large wardrobe with built-ins. The utility room is accessible from the wardrobe, with a family drop off area off the utility room. Upstairs are the upper and lower bonus room with a full bath and balcony. From the second story bar, loggia and loft, enjoy the views of the main level below. The media and game rooms are wonderful for entertaining. Enjoy the outdoor lounge from the game room and one of the bedrooms. There is plenty of storage in the attic. Two family bedrooms with walk-in closets and full baths complete this level of this luxury house plan.


FEATURES & DETAILS

Kitchen features
Kitchen Island
Nook / Breakfast Area
Bedroom features
Primary Bdrm Main Floor
Separate Tub and Shower
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Foundation Options
Slab
Additional features
2 Story Volume
Arches
Bonus Room
Dining Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Options
Attached
Side-entry
7,410 Ft
2
Total Structure
5,067 Ft
2
Total Heated
3,363 Ft
2
1st Floor
1,704 Ft
2
2nd Floor
3
Bedrooms
3
Bathrooms
3
Garage
2
Stories
50' 0"
Width
125' 0"
Depth
40' 0"
Height
11' 0"
Main Floor Ceiling
10' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
Single
Dwelling Number

Unheated Living Space
758 Ft
2
Garage
62 Ft
2
Porch
467 Ft
2
Deck
261 Ft
2
Patio
795 Ft
2
Bonus Room


Plan Package Options

 Select Plan Package
$2,180
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,180
$2,360
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,360
$3,270
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,270
 Need To Reverse Plan? (Optional)
$200
Readable Reverse

Reverse house plans with readable text and dimensions

$200
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
