HOUSE PLANS
START AT $2,420
SQ FT
5,041
BEDS
5
BATHS
5.5
STORIES
2
CARS
2
WIDTH
78' 2"
DEPTH
75' 6"
© copyright by designer

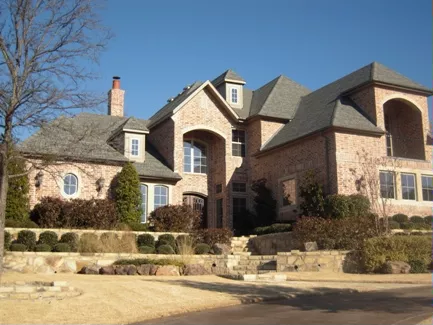

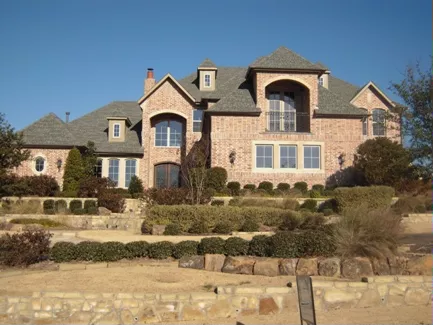

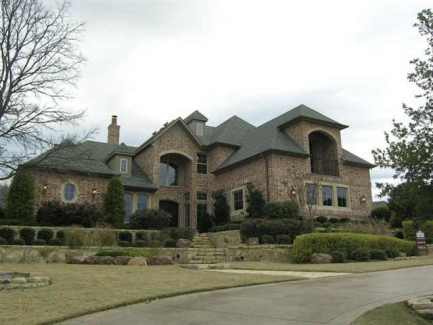

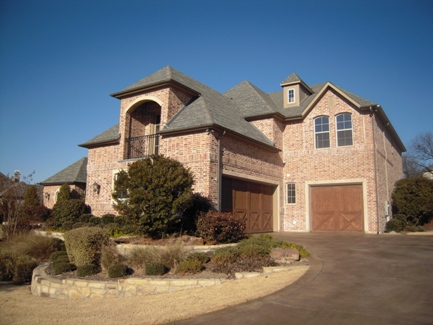

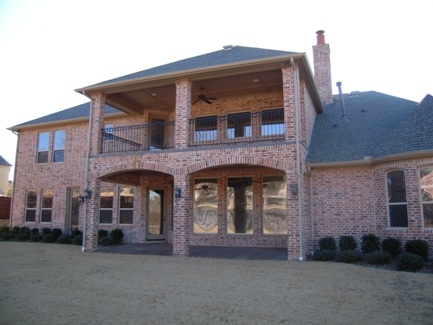

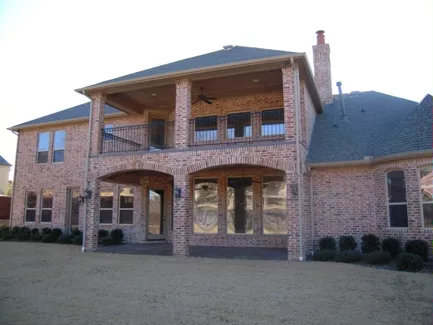

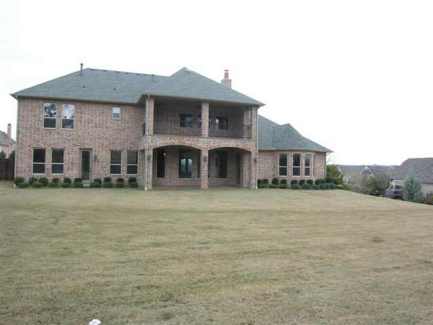

Photographs may reflect modified homes.   View all 21 photos
SQ FT
5,041
BEDS
5
BATHS
5.5
STORIES
2
CARS
2



House Plan 4698: MAYFAIR

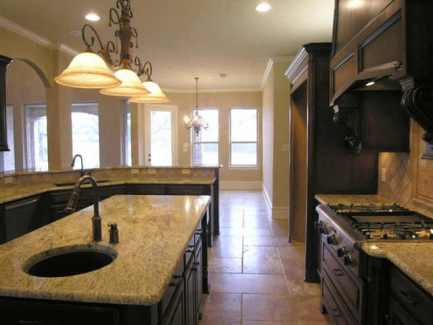

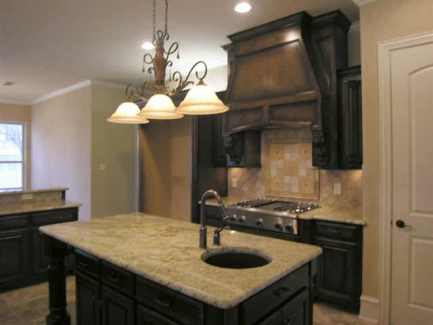

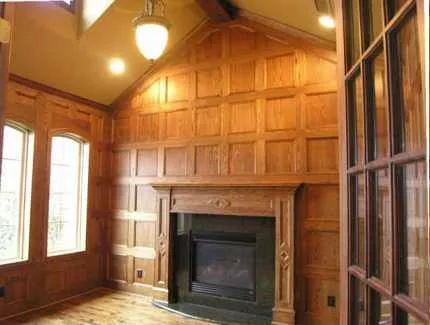

You will feel right at home as you enter this stunning traditional luxury home. The perimeter of the elegant dining room is defined by the large pillars and tray ceiling. Grab some wine from the bar off the dining room and go into the cozy study with its vaulted ceiling to sit by the fire for a spell. The gourmet island kitchen includes a breakfast bar for added counter space. The built-ins and fi...  Read more >

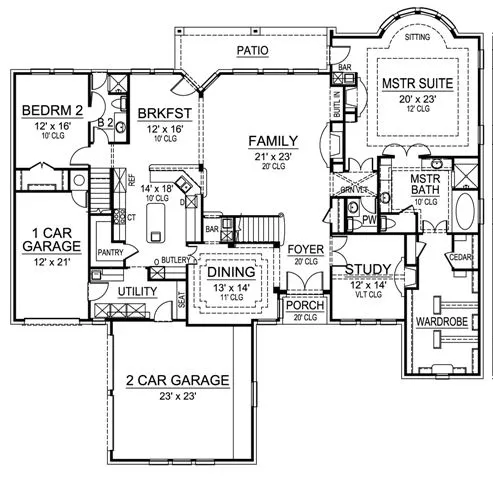

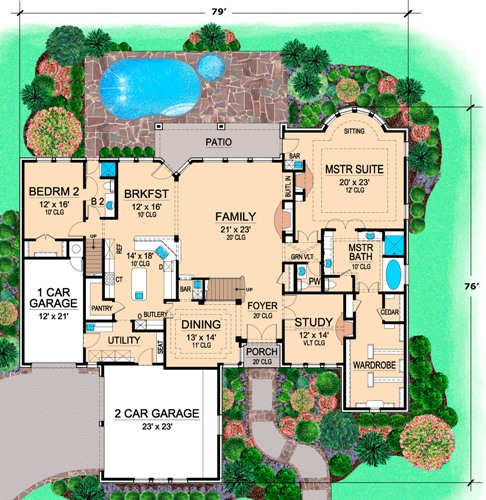

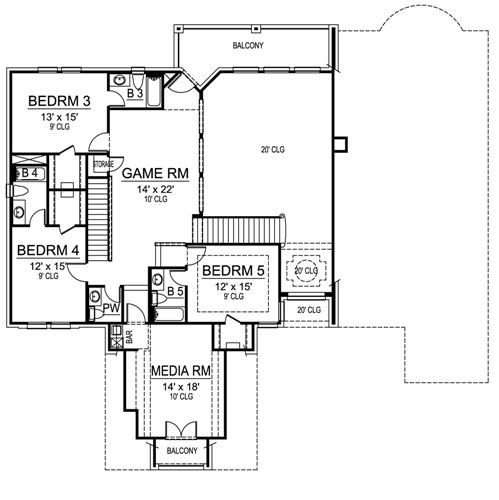

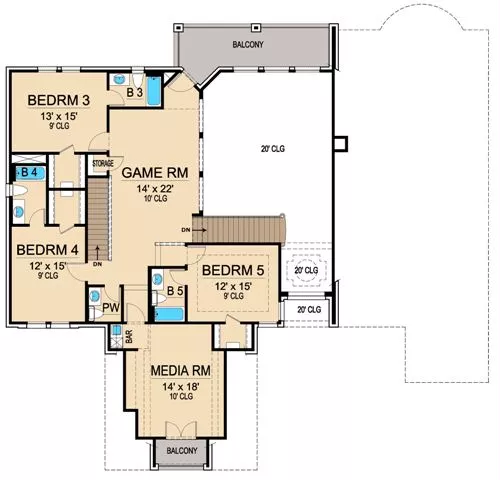

Click to Zoom In on Floor Plan

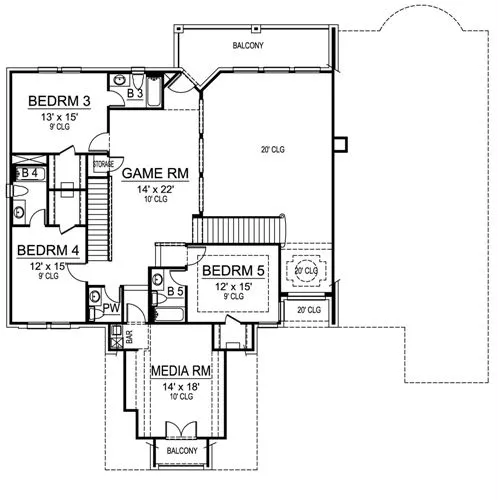

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$2,420

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$2,620

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$3,630
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$200
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry
Bedroom features
Double Vanity Sink
Guest Suite
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms

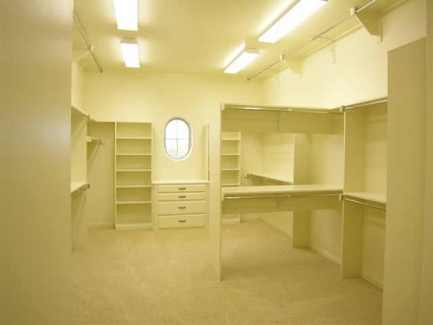

Walk-in Closet
Lot features
Suited for corner lot
Suited for sloping lot
Suited for view lot
Additional features
2 Story Volume
Arches
Dining Room
Family Room
Fireplace
Foyer
Great Room
Home Office
In-law Suite
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Open Floor Plan
Rec Room
Vaulted Ceilings
Garage Location
Front
Garage Features
Attached
Front-entry
Side-entry

Hide Plan Features
Details:
View All Plan Details
6,367 Ft
2
Total Structure:
5,041 Ft
2
Total Heated:
3,277 Ft
2
1st Floor:
1,764 Ft
2
2nd Floor:
5
Bedrooms:
5.5
Bathrooms:
2
Garage:
2
Stories:
78' 2"
Width:
75' 6"
Depth:
35' 2"
Height:
10
Main Floor Ceiling:
9
Upper Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
12
Primary Roof Pitch:
8
Secondary Roof Pitch:
16
Dormer Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
865 Ft
2
Garage:
33 Ft
2
Porch:
241 Ft
2
Deck:
187 Ft
2
Patio:
Exterior Styles
European
French Country
Traditional
Collections
Split Bedroom

Hide Plan Details
