HOUSE PLANS SALE
START AT $920.00
SQ FT
3,084
BEDS
4
BATHS
3
STORIES
2
CARS
2
WIDTH
66'
DEPTH
88' 10"
Front Rendering Front Rendering
© copyright by designer
Photographs may reflect modified home | View all 2 images
SQ FT
3,084
BEDS
4
BATHS
3
STORIES
2
CARS
2

Details & Features
Reverse Plan
View All 2 Images
Print Plan
Recent Plans
Advanced Search
Explore Architect Preferred Products For This Plan >

House Plan 4100:

Foyer bridges courtyard and formal spaces. Master win off the formal living room creates privacy and seclusion. Island kitchen looks out to courtyard as does the nook, and features a walk in pantry. Choose from 2 second floor layouts.

Note: many options included with this plan, extended courtyard entry or side entry garage, additional bedroom at loft and an additional elevation option.
Modify This Home Plan
Cost To Build Estimate
Preferred Products
View Plan Package Options
HOUSE PLANS
START AT $920
Modify This Plan
Cost To Build
Details & Features
Reverse Plan
View All 2 Images
Print Plan
Recent Plans
Advanced Search
Explore Architect Preferred Products For This Plan >
Click to Zoom In on Floor Plan
Floor Plans

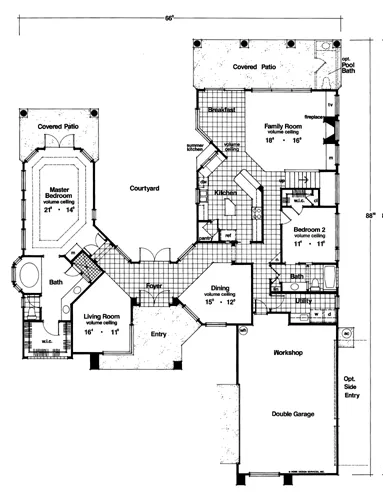

First Floor Plan

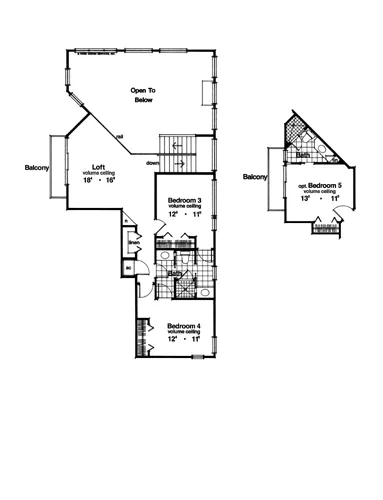

Second Floor Plan
© copyright by designer
Plan Packages
 Select Plan Package
PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set
PDFs NOW!™
Digital set of plans for bidding purposes only
 $700
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
PDFs NOW!™
Most recommended package
 $1,150
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
 $1,350
5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF
PDFs NOW!™
Digital plans plus 5 printed sets
 $1,500
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build
2D electronic editable computer files
 $2,300
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
IMPORTANT INFO BEFORE YOU BUY
Features:
View All Plan Features
Kitchen features
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry
Bedroom features
Double Vanity Sink
Guest Suite
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet
Additional features
Arches
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Laundry 1st Fl
Loft / Balcony
Open Floor Plan
Vaulted Ceilings
Exterior features
Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Front Porch
Rear Porch
Garage Location
Front
Garage Options
Attached
Side-entry
Foundation Options
Slab
Lot Options
Suited for view lot

Hide Plan Features
Details:
View All Plan Details
4,224 Ft
2
Total Structure:
3,084 Ft
2
Total Heated:
2,264 Ft
2
1st Floor:
820 Ft
2
2nd Floor:
4
Bedrooms:
3
Bathrooms:
2
Garage:
2
Stories:
66' 0"
Width:
88' 10"
Depth:
27' 0"
Height:
14' 0"
Main Floor Ceiling:
9' 0"
Upper Floor Ceiling:
2x4
Framing:
Truss
Roof Framing:
6/12
Primary Roof Pitch:
Single
Dwelling Number:
None
Bonus Access:
Unheated Living Space
473 Ft
2
Garage:
172 Ft
2
Porch:
36 Ft
2
Deck:
459 Ft
2
Patio:
Exterior Styles
Beach
Contemporary
Mediterranean
Collections
Florida
Luxury
Open Floor Plan
Outdoor Living
Split Bedroom
