Recently Viewed Plans | Advanced Plan Search

Sq Ft
3,060 FT²

Beds
4

Baths
3

Stories
1

Garage
3

Depth
74' 8"

Width
64' 8"

From
$1,300.00

Front Exterior

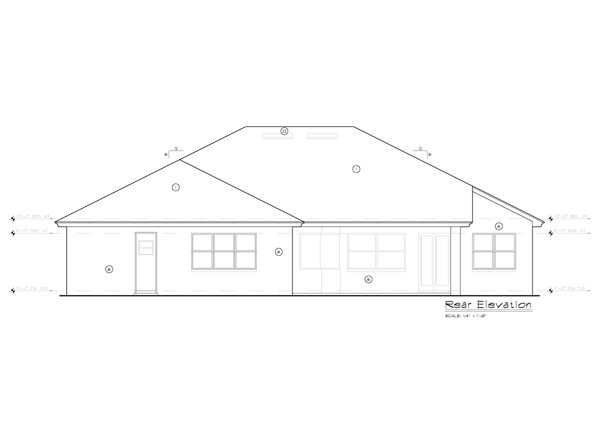

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

3,060 FT²

From

$1,300.00

Beds

Baths

Stories

Garage

Depth

74' 8"

Width

64' 8"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

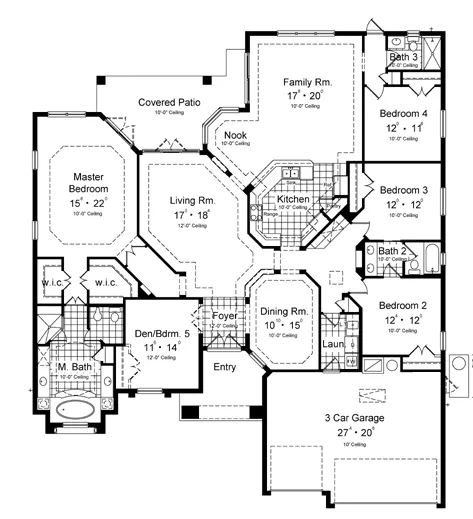

First Floor Plan

About This Plan

This Mediterranean is a real beauty. Upon entering the foyer the beauty of this home makes itself known with the tray ceilings in the main living areas, the drywall detail work in the soffits and arches. To the right is the formal dining room and to the left is the den which could be converted to a 5th bedroom. Straight ahead is the large formal living room with access to the family room. The master suite is off to the left thru it's own vestibule with built-in niche. The master bedroom is large with tray ceiling and access to the covered patio. The master bath has two good sized walk-in closets. A large tub with columns on either side is the center piece of this luxury bath complete with his and her vanities, make-up area and walk-in shower. The private toilet chamber also has room for a bidet. A vestibule between the dining room and kitchen leeds to a centered niche and the secondary bedrooms 2 and 3. Note the built-in desk / study area outside bedroom 3. A large kitchen with breakfast bar and pantry opens to the family room and mitered glass nook area. Bedroom 4 is off the family room and shares a bath.

FEATURES & DETAILS

Kitchen features

Nook / Breakfast Area
Peninsula / Eating Bar

Bedroom features

Double Vanity Sink
His and Hers Primary Closets
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet

Exterior features

Covered Rear Porch
Rear Porch

Foundation Options

Slab

Lot Options

Suited for view lot

Additional features

Arches
Dining Room
Family Room
Formal LR
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Mud Room
Open Floor Plan
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry

3,060 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

64' 8"

Width

74' 8"

Depth

Block

Framing

Truss

Roof Framing

Single

Dwelling Number

Unheated Living Space

605 Ft

Garage

113 Ft

Porch

222 Ft

Patio

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$700

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$700

$1,300

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,300

$1,500

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,500

$1,650

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,650

$2,600

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,600

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
