Sq Ft
3,087 FT²
Bed
4
Bath
3.5
Stories
2
Garage
2
Depth
52'
Width
42'
On Sale
$1,105.00
$1,300.00
© copyright by designer
View All 1 Images | Photographs may reflect modified home
Sq Ft
3,087 FT²
From
$1,105.00
Bed
4
Bath
3.5
Stories
2
Garage
2
Depth
52'
Width
42'

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

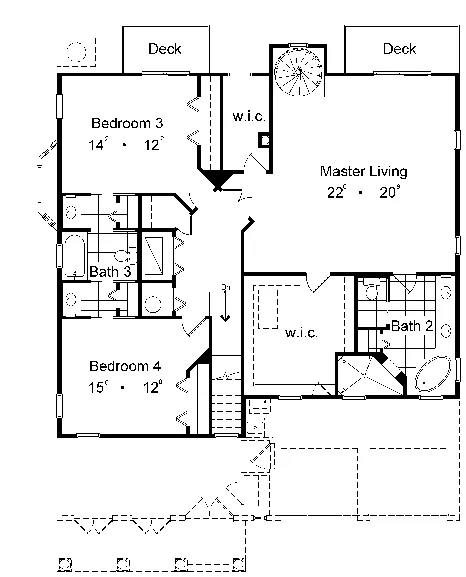

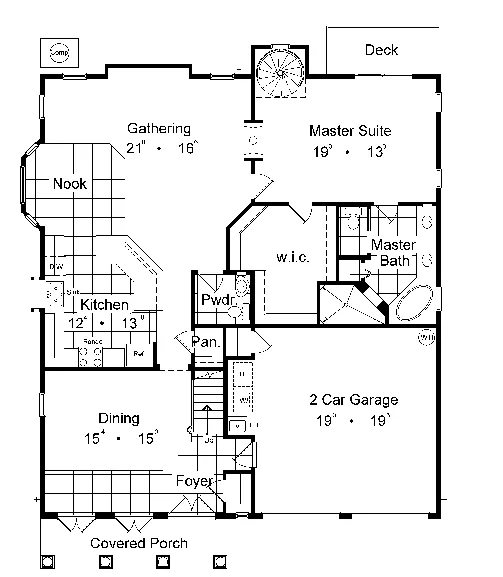

An excellent narrow lot 2 story with a double master suite. The covered front porch leads you to the foyer / gallery and the formal dining room. The open stair leeds to the 2nd floor secondary bedrooms that each have private vanity areas and a shared tub / toilet room. The second master suite / living area is also on this floor. The open kitchen, nook and gathering area is cozy with a thru fireplace shared with the 1st floor master suite. The 1st floor master suite has a large 11'-6"x12'-6" walk-in closet. The master bath has a corner tub, duel lav vanity, large walk-in shower and private toilet chamber. The spiral stair leeds to the second floor master above which has a matching walk-in closet and bath as on the first floor.


FEATURES & DETAILS

Foundation Options
Slab
Lot Options
Suited for narrow lot
Garage Location
Front
Garage Options
Attached
Front-entry
3,087 Ft
2
Total Heated
1,596 Ft
2
1st Floor
1,491 Ft
2
2nd Floor
4
Bedrooms
3.5
Bathrooms
2
Garage
2
Stories
42' 0"
Width
52' 0"
Depth
Other
Framing
Truss
Roof Framing
4/12
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
422 Ft
2
Garage
105 Ft
2
Porch
165 Ft
2
Patio
Collections


Plan Package Options

 Select Plan Package
$700
PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$700
$1,300
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,300
$1,500
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,500
$1,650
5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,650
$2,600
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,600
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
