Recently Viewed Plans | Advanced Plan Search

Sq Ft
6,184 FT²

Beds
5

Baths
5.5

Stories
2

Garage
4

Depth
102'

Width
101' 2"

From
$2,900.00

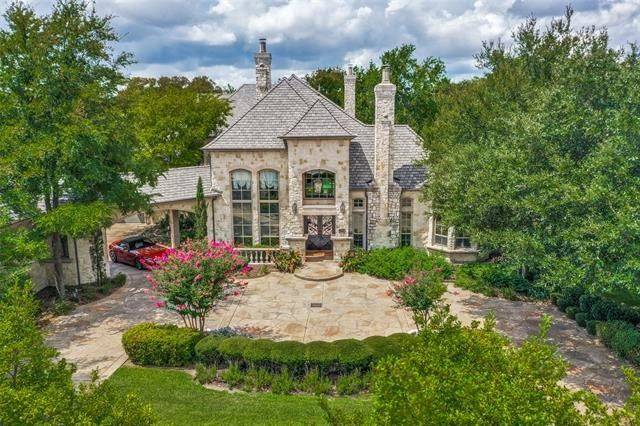

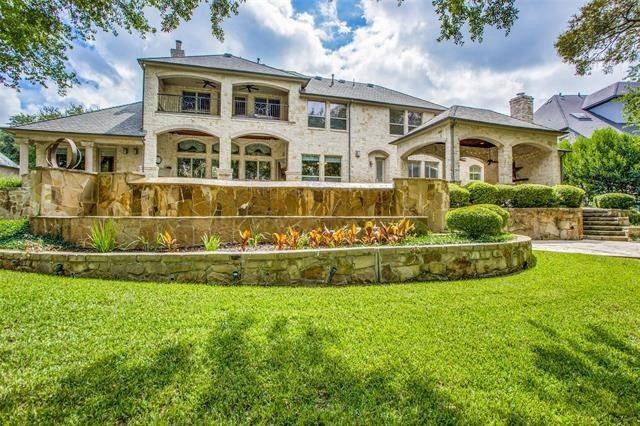

View All 33 Images | Photographs may reflect modified home

Sq Ft

6,184 FT²

From

$2,900.00

Beds

Baths

5.5

Stories

Garage

Depth

102'

Width

101' 2"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

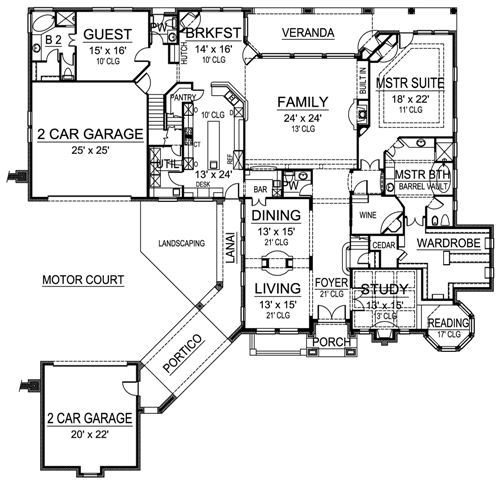

First Floor

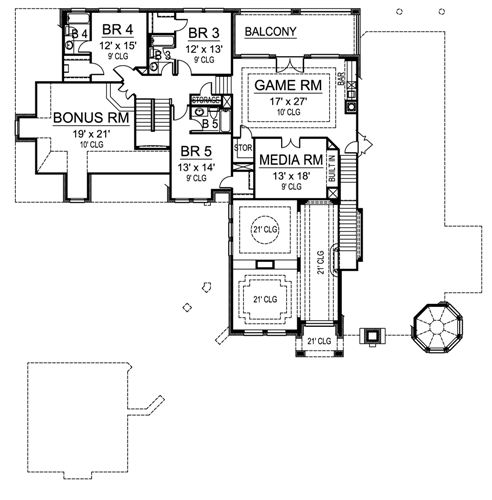

Second Floor

First Floor

Second Floor

About This Plan

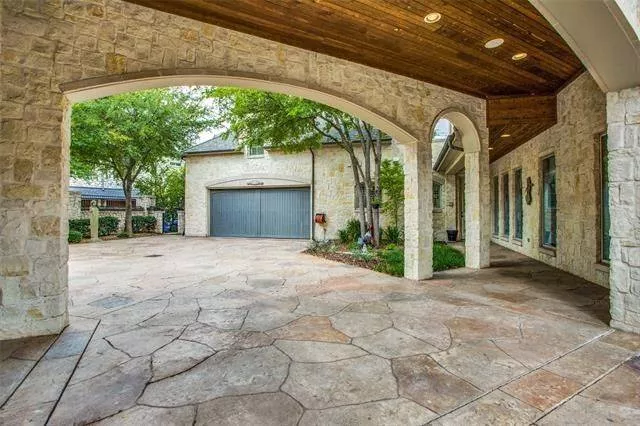

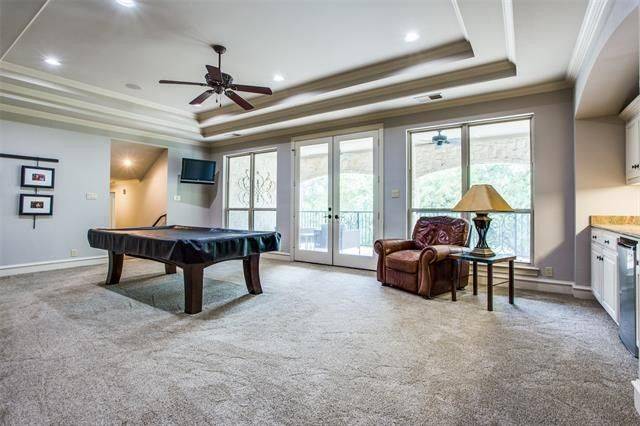

This opulent mansion brings your dreams to your doorstep. When you drive up through the portico to the motor court, two double bay garages will accommodate needs for a large family. This home is designed with a full guest suite styled as a second mini master. Entertaining is a breeze with large outdoor patio space, a game room, and a media room. Ask us how to convert the bonus into a 6th bedroom, craft room, child playroom, or anything else you may find need for to make this home even better than it already is.

See All Plan Options

FEATURES & DETAILS

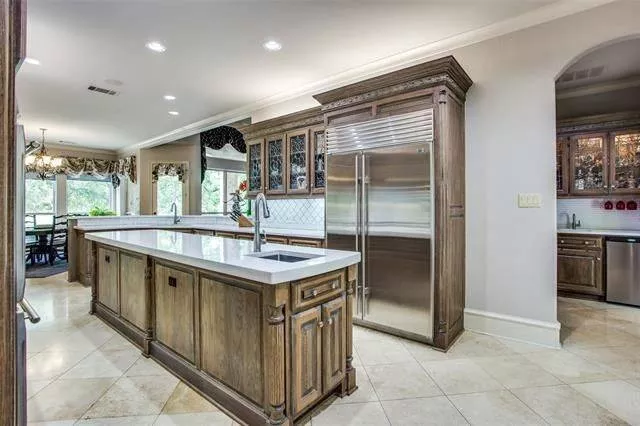

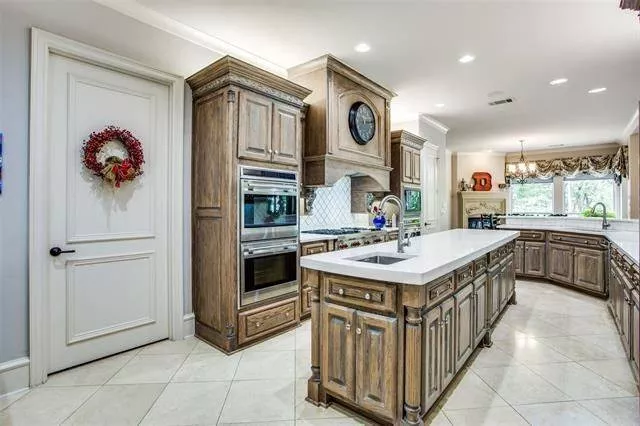

Kitchen features

Butler's Pantry
Kitchen Island

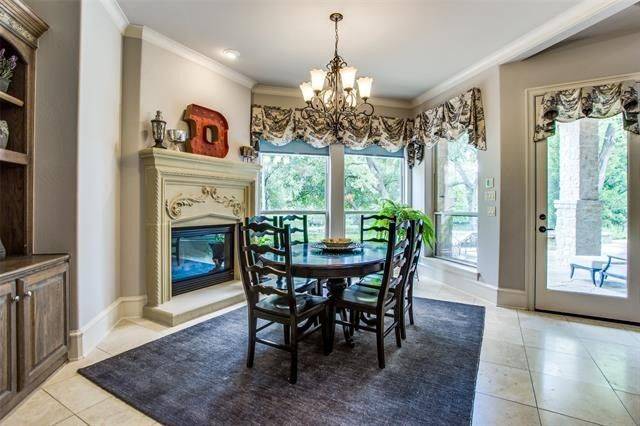

Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry

Bedroom features

Double Vanity Sink

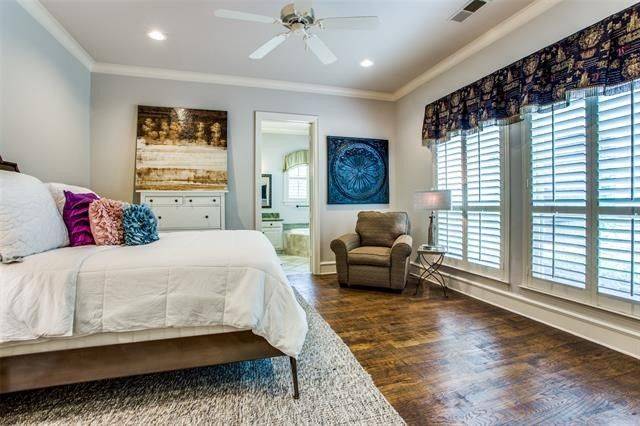

Guest Suite
Primary Bdrm Main Floor

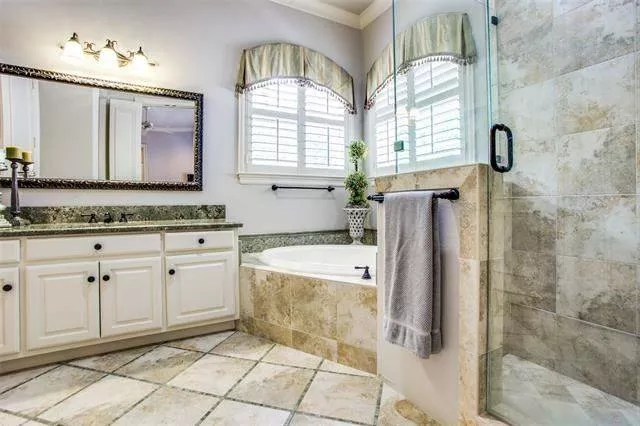

Separate Tub and Shower
Sitting Area
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch

Foundation Options

Slab

Additional features

2 Story Volume
Arches

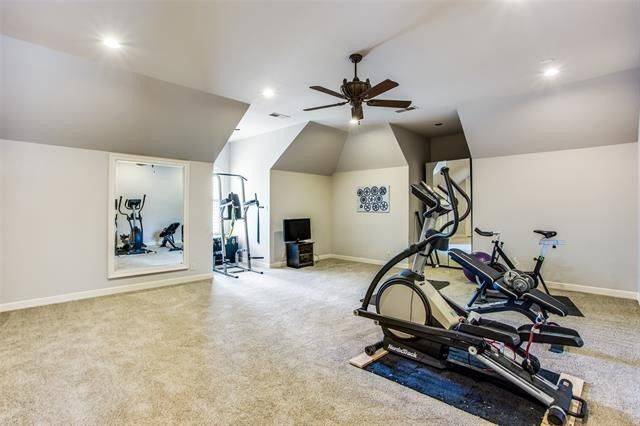

Bonus Room

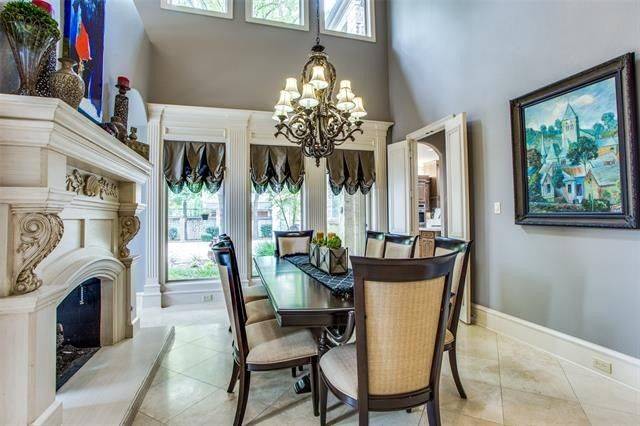

Dining Room
Family Room
Fireplace
Formal LR

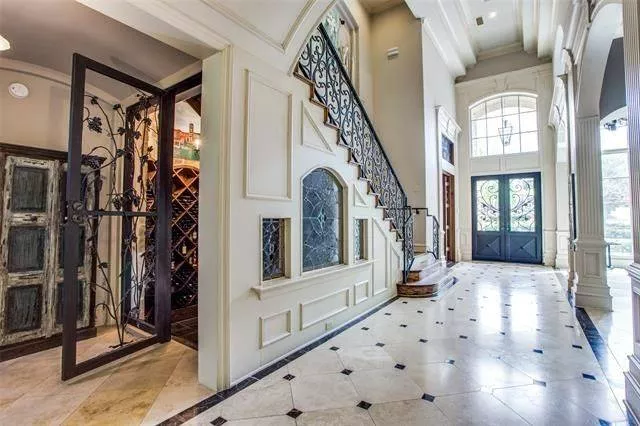

Foyer

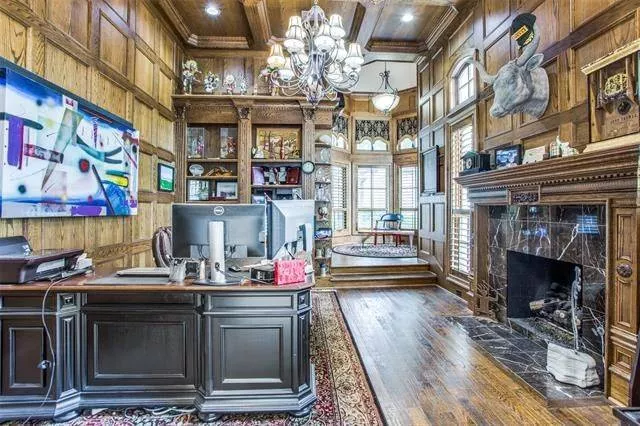

Home Office
In-law Suite
Laundry 1st Fl

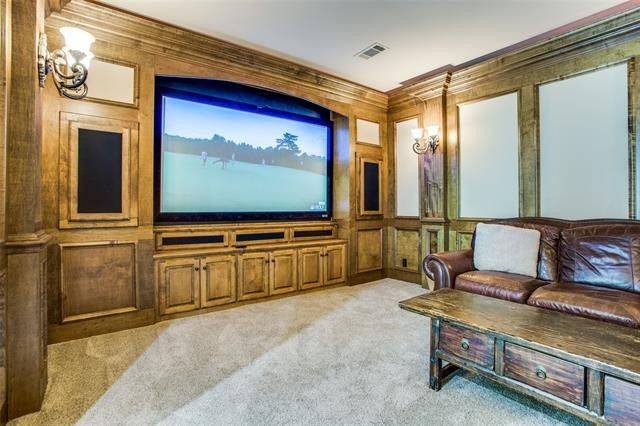

Library/Media Rm

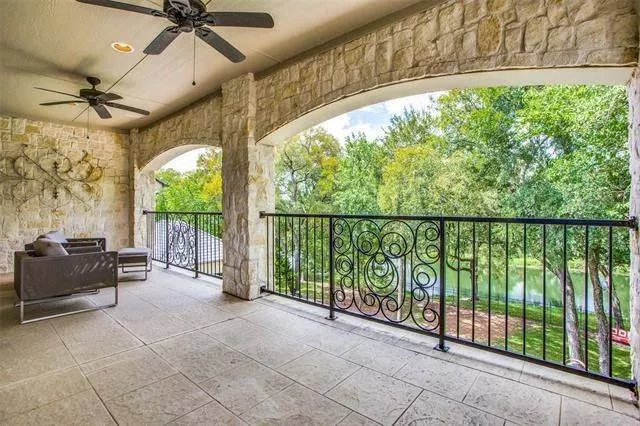

Loft / Balcony
Open Floor Plan
Storage Space
Unfinished Space
Vaulted Ceilings

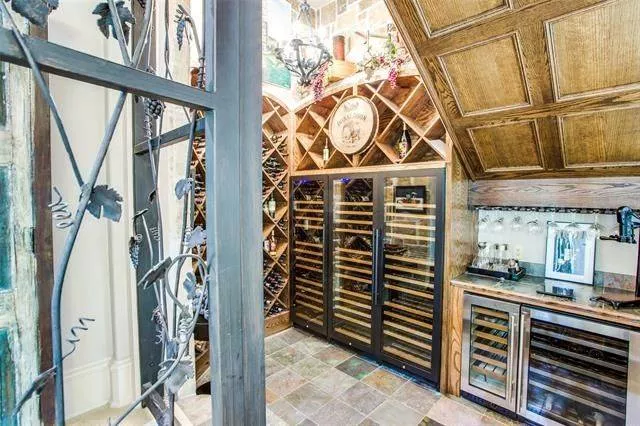

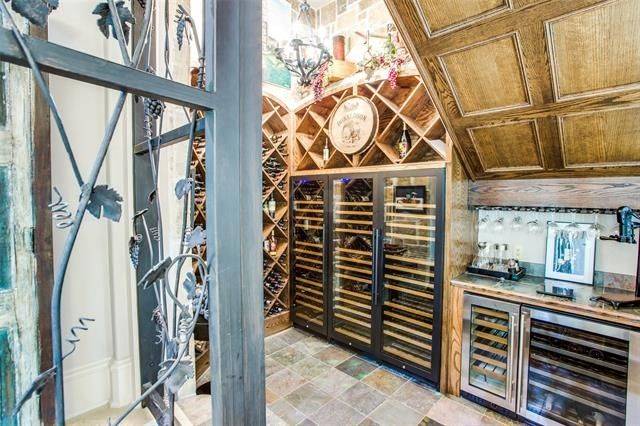

Wine Cellar

Garage Location

Side

Garage Options

Attached
Detached
Front-entry
Rear-entry

9,054 Ft

Total Structure

6,184 Ft

Total Heated

4,384 Ft

1st Floor

1,800 Ft

2nd Floor

Bedrooms

5.5

Bathrooms

Garage

Stories

101' 2"

Width

102' 0"

Depth

34' 10"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x4 or 2x6

Framing

Stick

Roof Framing

Primary Roof Pitch

Secondary Roof Pitch

Dormer Roof Pitch

Porch Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

1,185 Ft

Garage

69 Ft

Porch

371 Ft

Patio

544 Ft

Bonus Room

Exterior Styles

Traditional

Collections

Luxury

Old House Classics

Plan Package Options

Important info before you buy

Select Plan Package

$2,900

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,900

$4,440

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$4,440

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$4,440

Need To Reverse Plan? (Optional)

$250

Readable Reverse

Reverse house plans with readable text and dimensions

$250

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
