Search Plans

Sq Ft
6,233 FT²
Bed
4
Bath
5
Stories
2
Garage
3
Depth
92'
Width
91'
From
$2,860.00
© copyright by designer

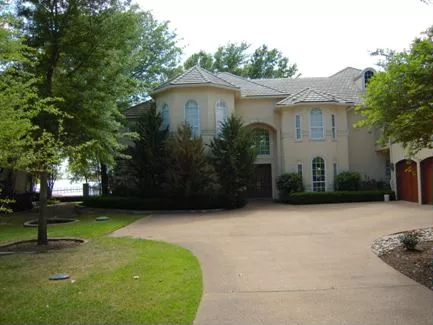

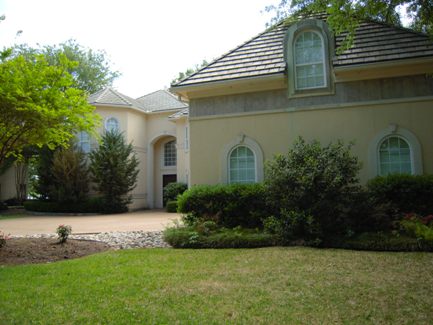

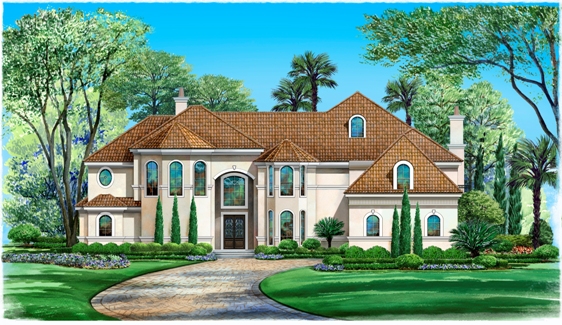

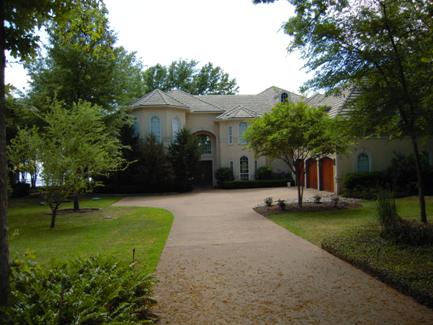

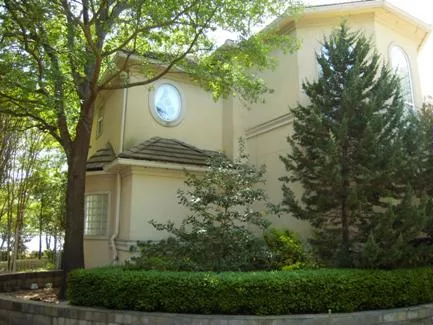

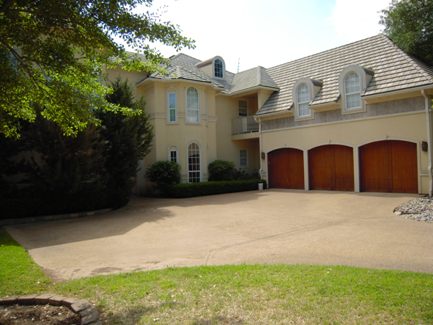

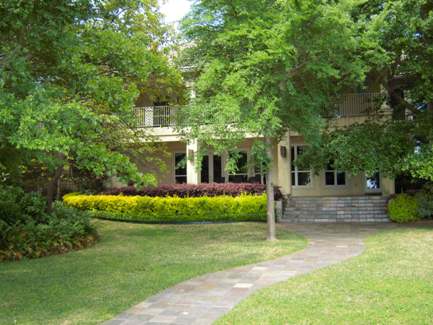

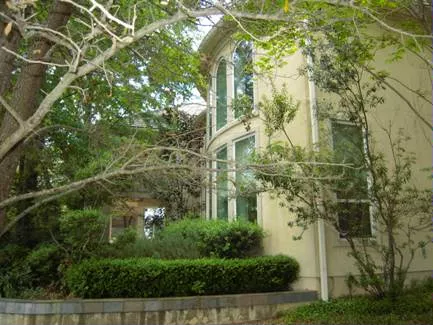

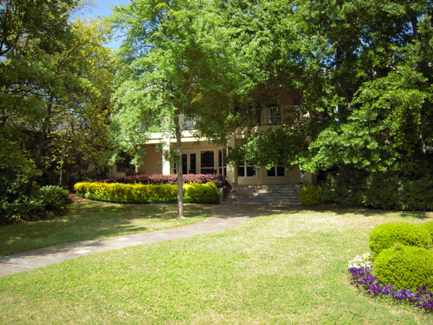

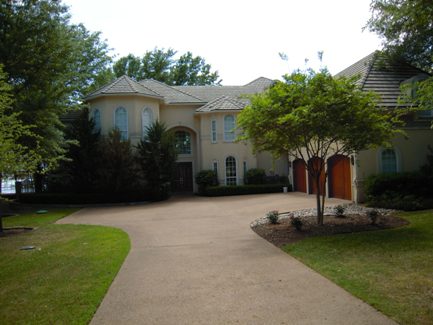

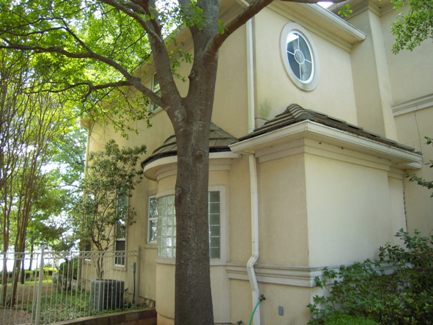

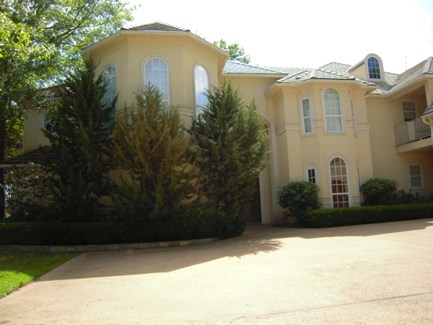

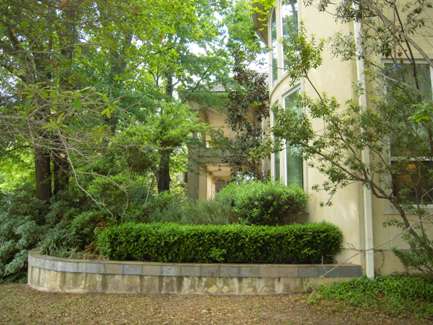

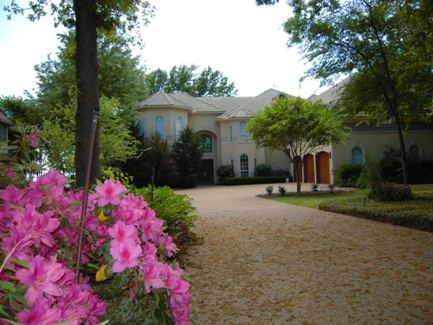

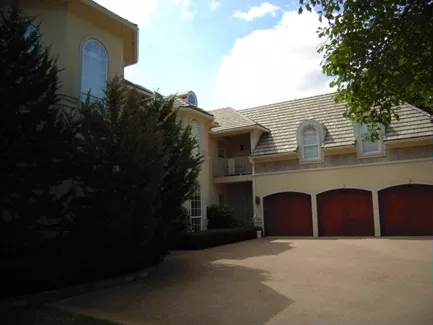

View All 19 Images | Photographs may reflect modified home
Sq Ft
6,233 FT²
From
$2,860.00
Bed
4
Bath
5
Stories
2
Garage
3
Depth
92'
Width
91'

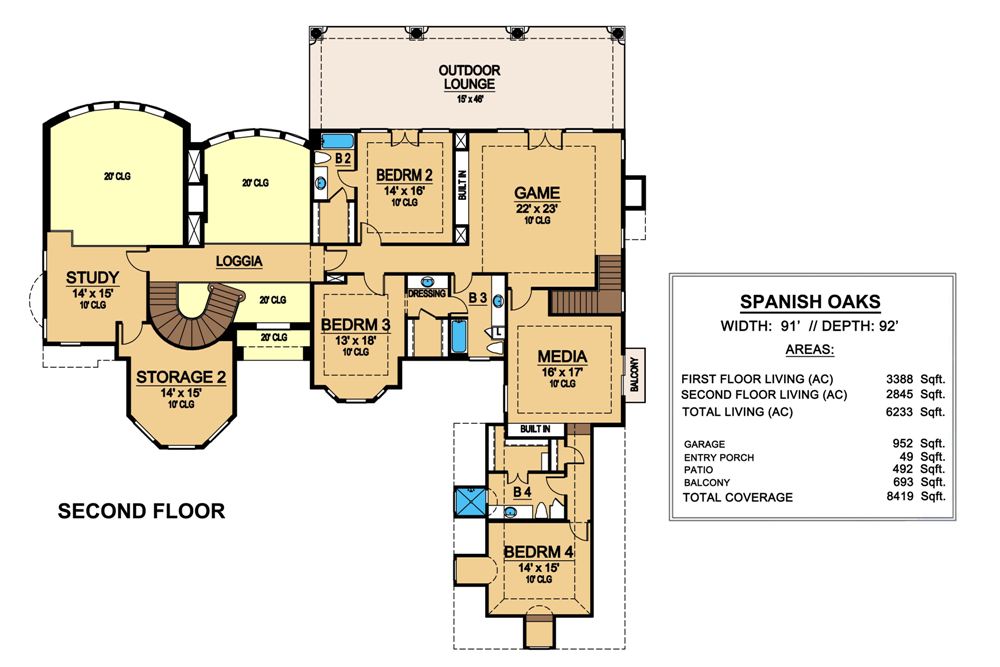

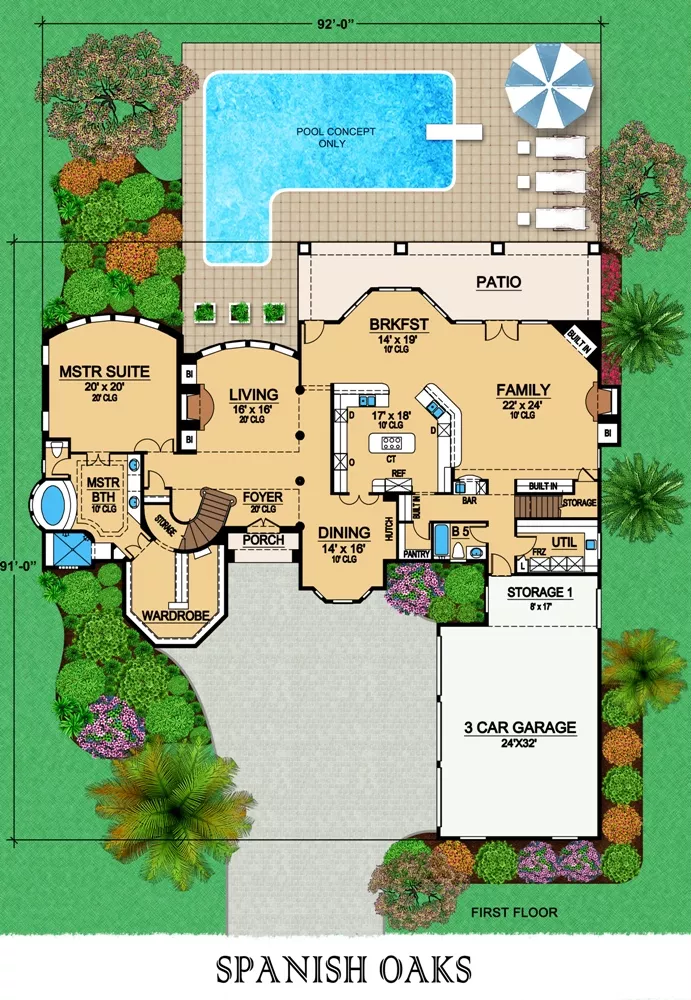

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

Your search for the perfect Mediterranean luxury house plan ends here. Entering the two-story Foyer, your eyes are immediately drawn to the curved staircase and large decorative pillars that divides the Dining room and the Living room. The Living room is directly ahead of the Foyer and has built-ins that flank the fireplace and is accompanied by a large bank of windows for great views of your backyard. The elegant Dining room is to the right of the Foyer, and is in close proximity to the pantry and Kitchen, ideal for serving dinner to family or guests. The Family gathering area consists of the gourmet Kitchen, a cozy Breakfast area and the Family room. The family room has many built-in shelves that are on either side of the warming fireplace. The Kitchen's island adds to the counter space and houses the cook top stove, while the two peninsula bars separate the Kitchen from the Breakfast area. Just behind the Breakfast area and Family room is a large patio, which provides some much needed shade in the summer's heat. The luxurious master suite boasts a bayed window and a lavish master bathroom that features his and hers vanity sinks, a separate shower, a garden tub, and a spacious wardrobe. To finish up the first floor of this house plan is a three car garage and a small storage space. On the second floor are three family bedrooms, all complete with a walk-in closets and a full bathroom. Also located upstairs is the Game room, Study, a large Storage room, and a Media room with its own small balcony. You'll enjoy the view of the Foyer and Living room as you look down on them from the loggia; you'll also enjoy the view of the backyard with the large outdoor lounge, which completes this luxurious Mediterranean style home.


FEATURES & DETAILS

Kitchen features
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Bedroom features
Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Foundation Options
Slab
Additional features
2 Story Volume
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Storage Space
Garage Location
Front
Garage Options
Attached
Side-entry
8,419 Ft
2
Total Structure
6,233 Ft
2
Total Heated
3,388 Ft
2
1st Floor
2,845 Ft
2
2nd Floor
4
Bedrooms
5
Bathrooms
3
Garage
2
Stories
91' 0"
Width
92' 0"
Depth
37' 0"
Height
10' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
8
Primary Roof Pitch
12
Secondary Roof Pitch
Single
Dwelling Number

Unheated Living Space
952 Ft
2
Garage


Plan Package Options

 Select Plan Package
$2,965
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,965
$3,145
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$3,145
$4,455
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$4,455
 Need To Reverse Plan? (Optional)
$250
Readable Reverse

Reverse house plans with readable text and dimensions

$250
  Select Foundation Option
  Add-Ons (Optional)

Free Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
