Sq Ft
6,093 FT²
Bed
0
Bath
0
Stories
2
Garage
3
Depth
86'
Width
77'
On Sale
$2,431.00
$2,860.00
© copyright by designer
View All 29 Images | Photographs may reflect modified home
Sq Ft
6,093 FT²
From
$2,431.00
Bed
0
Bath
0
Stories
2
Garage
3
Depth
86'
Width
77'

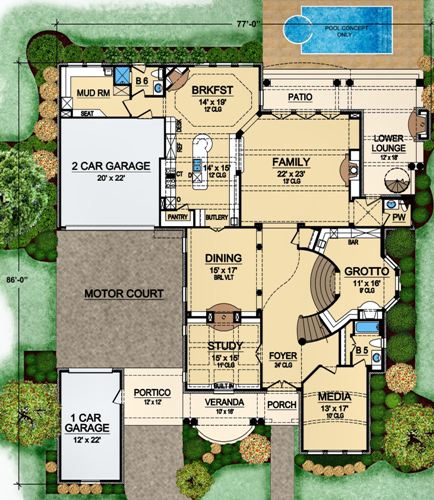

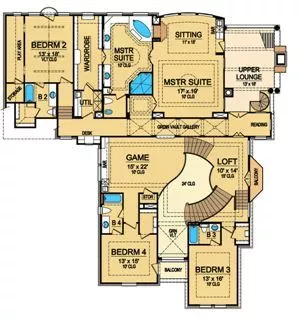

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

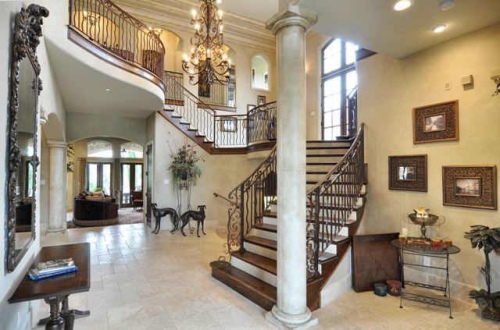

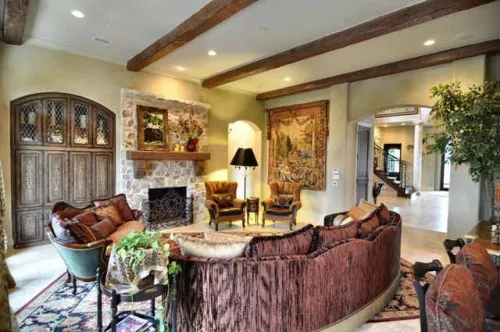

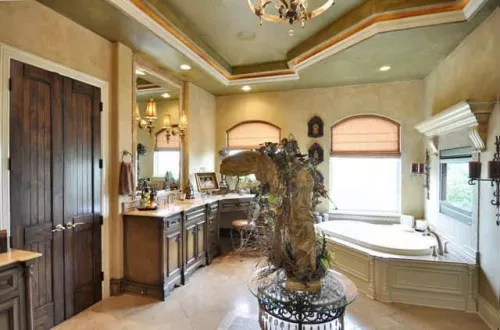

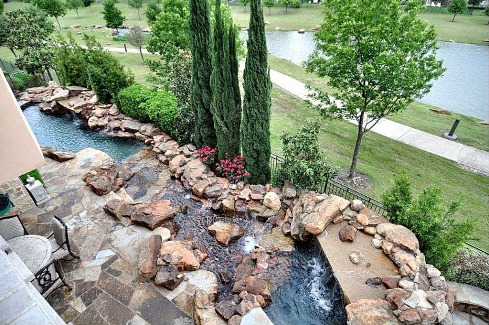

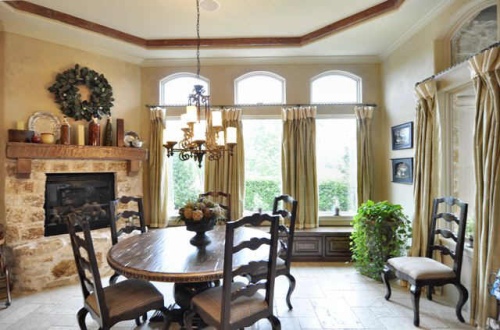

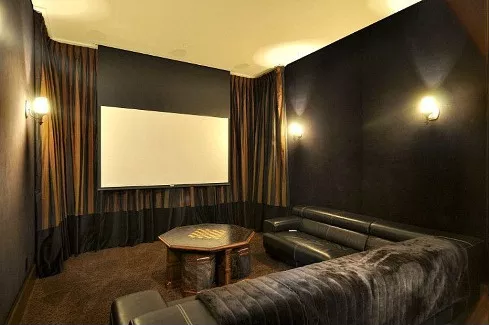

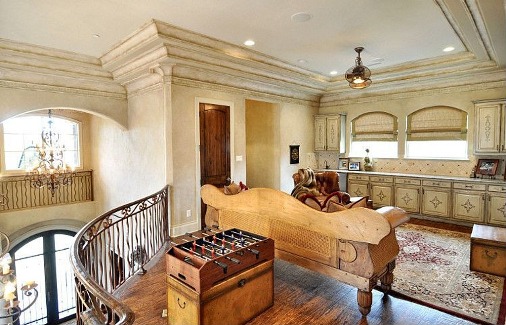

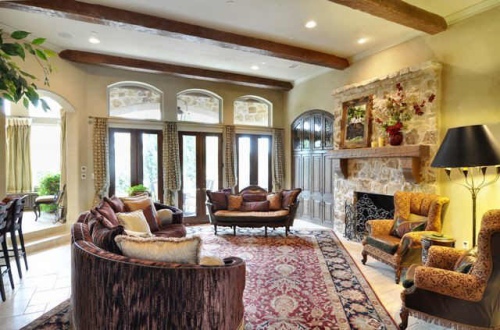

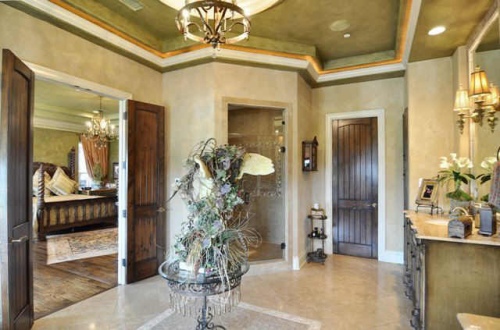

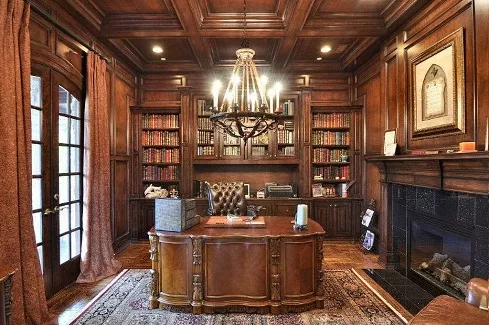

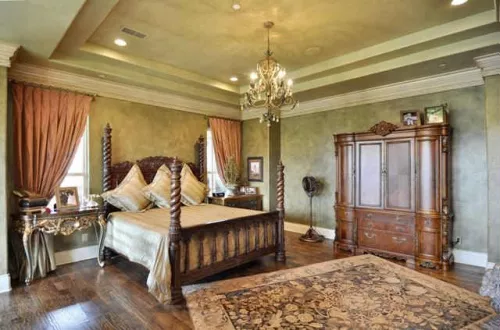

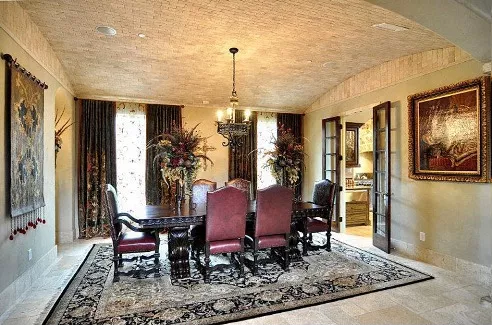

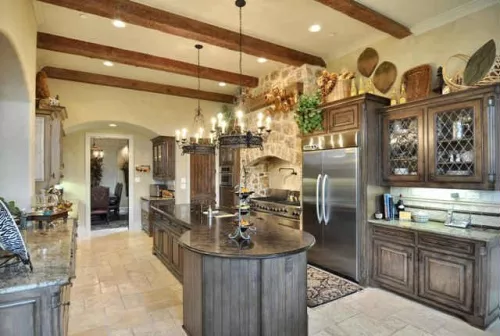

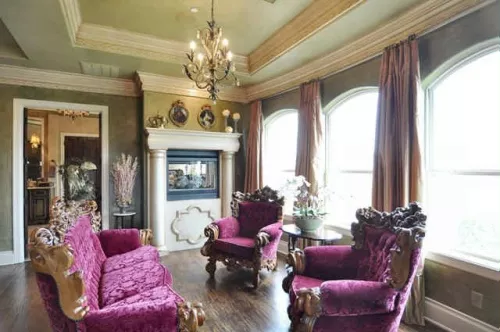

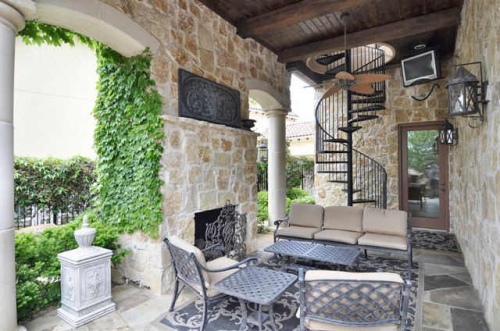

This Tuscan luxury mansion provides varied ceiling treatments throughout. The two-story foyer has a stunning view of the grotto. A quiet study shares a two-way fireplace with the formal dining room, and large decorative pillars define the perimeter. A media room with full bath is situated at the front of the house off the foyer. Beyond the grotto is the family room with fireplace and outdoor lower lounge and patio access. A spiral staircase in the lounge and warming fireplace adorn this area. The kitchen and breakfast area share a fireplace and free-standing island. The kitchen provides built-ins, a butlery and pantry in close proximity to the dining room for ease in serving. A mud room and powder room sit behind the two-car garage. Across the motor court is a one-car garage and portico that leads to the front veranda. Upstairs, three family bedrooms with walk-in closets, full baths and trey ceilings, share space with balconies, a game room with bar, loft, upper lounge, built-ins and a reading room. The luxurious master suite boasts a bayed window with fireplace, trey ceilings, center dome, lavish master bath with his and hers vanities, separate shower, corner garden tub, and a large wardrobe with utility room, completing this Mediterranean luxury mansion house plan.


FEATURES & DETAILS

Kitchen features
Butler's Pantry
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Bedroom features
Primary Bdrm Upstairs
Separate Tub and Shower
Sitting Area
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Foundation Options
Slab
Additional features
2 Story Volume
Arches
Dining Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Vaulted Ceilings
Garage Location
Side
Garage Options
Attached
8,137 Ft
2
Total Structure
6,093 Ft
2
Total Heated
3,107 Ft
2
1st Floor
2,986 Ft
2
2nd Floor
3
Garage
2
Stories
77' 0"
Width
86' 0"
Depth
34' 0"
Height
10' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
12
Primary Roof Pitch
6
Secondary Roof Pitch
Single
Dwelling Number

Unheated Living Space
806 Ft
2
Garage


Plan Package Options

 Select Plan Package
$2,965
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,965
$3,145
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$3,145
$4,455
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$4,455
 Need To Reverse Plan? (Optional)
$250
Readable Reverse

Reverse house plans with readable text and dimensions

$250
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
