Sq Ft
9,832 FT²
Bed
5
Bath
7
Stories
2
Garage
4
Depth
104'
Width
124'
On Sale
$3,553.00
$4,180.00
© copyright by designer
View All 31 Images | Photographs may reflect modified home
Sq Ft
9,832 FT²
From
$3,553.00
Bed
5
Bath
7
Stories
2
Garage
4
Depth
104'
Width
124'

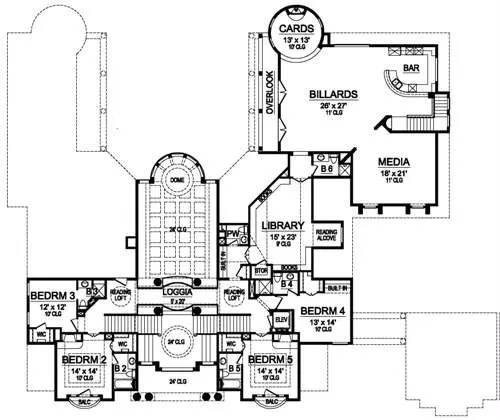

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

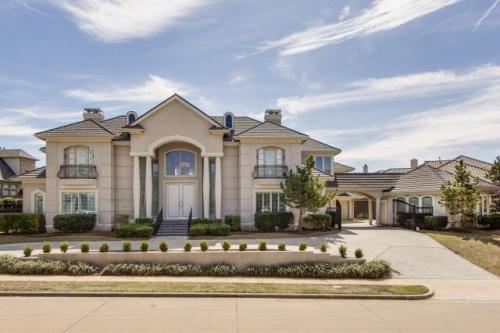

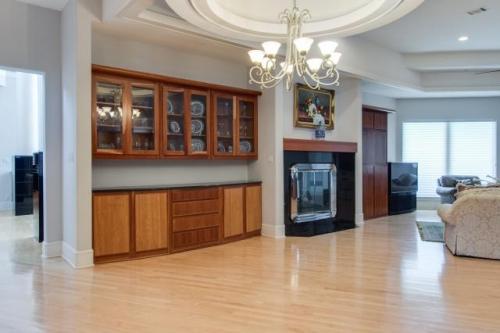

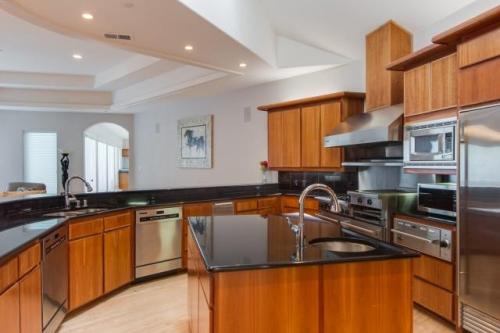

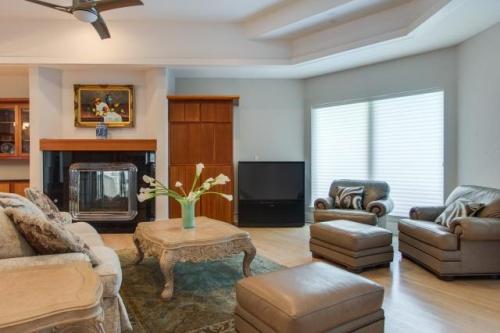

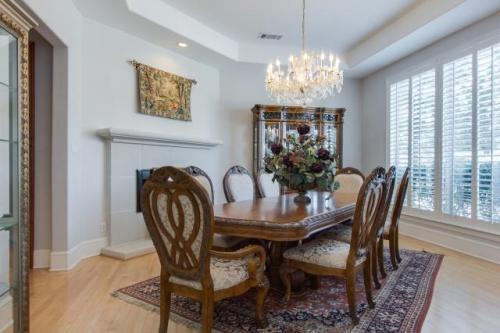

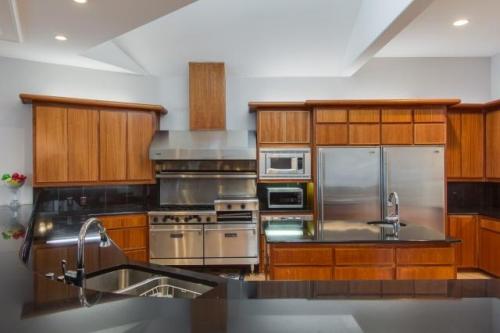

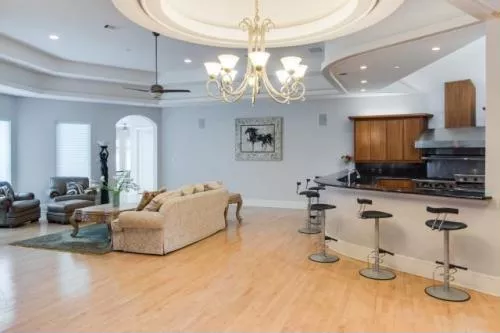

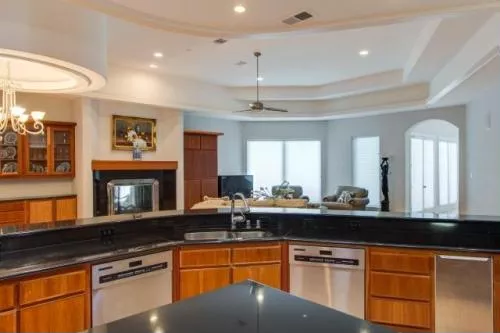

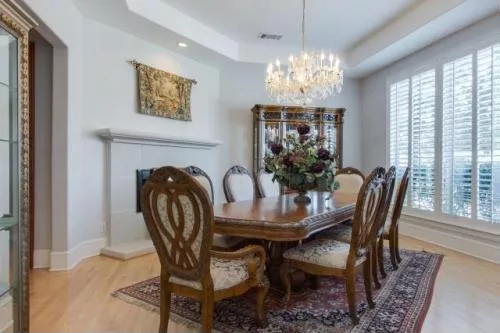

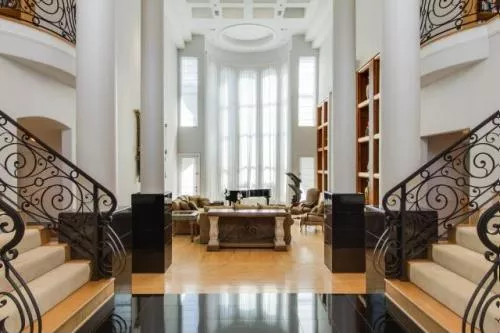

This opulent luxury mansion home plan offers varied ceiling treatments and two-story ceilings adding volume to your living spaces. Balconies, fireplaces and plenty of built-ins are just some of the amenities in this luxury home. The elegant two-story foyer is flanked by a private living room and quiet study with see-through fireplace to the left, and a formal dining room with corner fireplace to the right. The wine bar and butlery off the dining room provide ease in serving your family and guests those special dinners. Adjacent is the gallery that leads to the gourmet kitchen with breakfast bar and free-standing island for plenty of counter space for any chef. The breakfast area and family room share space on the opposite side of the breakfast bar, and feature built-ins and a fireplace that lends warmth to both rooms. The family room offers access to the veranda, storage and powder rooms. Family and friends will enjoy the game room with storage closet and access to the veranda. The rotunda-shaped bistro offer views of the lush landscape. Surrounded by steps up and down, the elegant two-story foyer delivers you into the stunning great room through large decorative pillars and beyond the built-in aquarium. The rear bank of windows in the great room's domed-ceiling rotunda allows for plenty of sunshine to brighten your day. Beyond the vestibule is the luxurious master suite with fireplace, sitting room with back yard view, a gym and lavish bath with his and hers vanities, separate shower, Roman tub and large wardrobe with built-ins. An elevator sits off the gallery next to the butlery. Beyond the utility room, pantry and side stop is the portico that leads to two two-car garages and storage. Upstairs, four family bedrooms with walk-in closets and full baths share space with reading lofts and alcoves, a library, game room with bar and card area, and media room. An overlook and loggia offer stunning views from above to the luxury mansion home below.


FEATURES & DETAILS

Kitchen features
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Bedroom features
Master Bdrm Main Floor

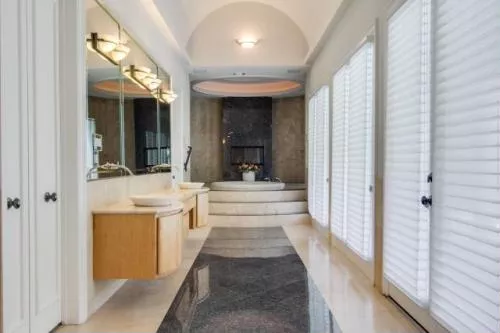

Separate Tub and Shower
Exterior features
Breezeway
Covered Front Porch
Covered Rear Porch
Deck
Front Porch
Rear Porch
Foundation Options
Slab
Additional features
2 Story Volume
Arches
Dining Room

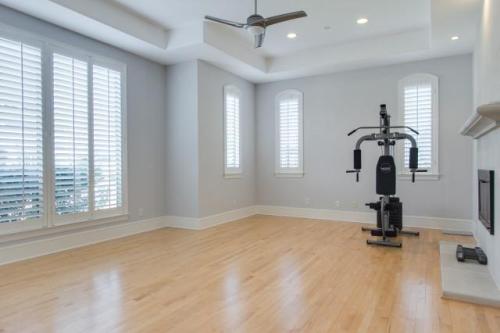

Exercise Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Vaulted Ceilings
Garage Location
Side
Garage Options
Attached
Side-entry
12,315 Ft
2
Total Structure
9,832 Ft
2
Total Heated
6,515 Ft
2
1st Floor
3,317 Ft
2
2nd Floor
5
Bedrooms
7
Bathrooms
4
Garage
2
Stories
124' 0"
Width
104' 0"
Depth
36' 0"
Height
12' 0"
Main Floor Ceiling
10' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
8
Primary Roof Pitch
8
Secondary Roof Pitch
Single
Dwelling Number

Unheated Living Space
1,136 Ft
2
Garage
414 Ft
2
Bonus Room


Plan Package Options

 Select Plan Package
$4,180
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$4,180
$4,380
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$4,380
$6,270
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$6,270
 Need To Reverse Plan? (Optional)
$300
Readable Reverse

Reverse house plans with readable text and dimensions

$300
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
