House Plan 5124: VAQUERO

This magnificent Mediterranean luxury mansion house plan is stunning. Balconies, rotundas, large decorative pillars, and varied ceiling treatments will draw you in. When you enter the two-story grand foyer, the view is inspiring. Flanked by the quiet study on the right and on the left is the elegant dining room with butlery for ease in serving. Off the dining room is a lounge with dome ceiling and...  Read more >

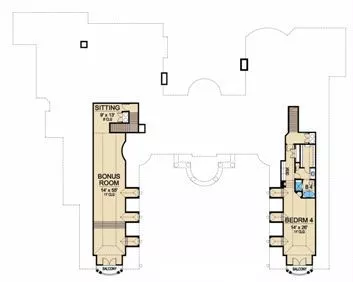

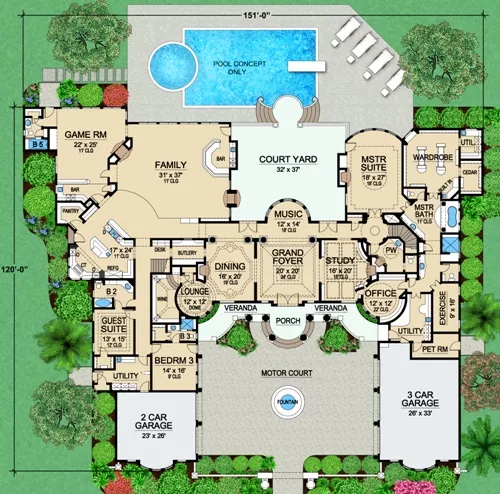

Click to Zoom In on Floor Plan
Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format allowing minor changes, printing copies, and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$4,180

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$4,380

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$6,270
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$300
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
Features:
View All Plan Features
Kitchen features
Butler's Pantry
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Additional features
2 Story Volume
Arches
Dining Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Vaulted Ceilings
Garage Location
Front
Garage Features
Attached
Side-entry

Hide Plan Features
Details:
View All Plan Details
12,993 Ft
2
Total Structure:
9,253 Ft
2
Total Heated:
8,273 Ft
2
1st Floor:
980 Ft
2
2nd Floor:
4
Bedrooms:
5.5
Bathrooms:
5
Garage:
2
Stories:
151' 0"
Width:
120' 0"
Depth:
30' 0"
Height:
11
Main Floor Ceiling:
10
Upper Floor Ceiling:
2x6
Framing:
Stick
Roof Framing:
8
Primary Roof Pitch:
8
Secondary Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
1,750 Ft
2
Garage:
274 Ft
2
Porch:
424 Ft
2
Deck:
97 Ft
2
Patio:
1,185 Ft
2
Bonus Room:
Exterior Styles
Mediterranean
Spanish
Traditional
Tuscan

Hide Plan Details
