Sq Ft
10,325 FT²
Bed
5
Bath
6.5
Stories
2
Garage
4
Depth
122' 6"
Width
123' 4"
On Sale
$5,095.75
$5,995.00
© copyright by designer
View All 36 Images | Photographs may reflect modified home
Sq Ft
10,325 FT²
From
$5,095.75
Bed
5
Bath
6.5
Stories
2
Garage
4
Depth
122' 6"
Width
123' 4"

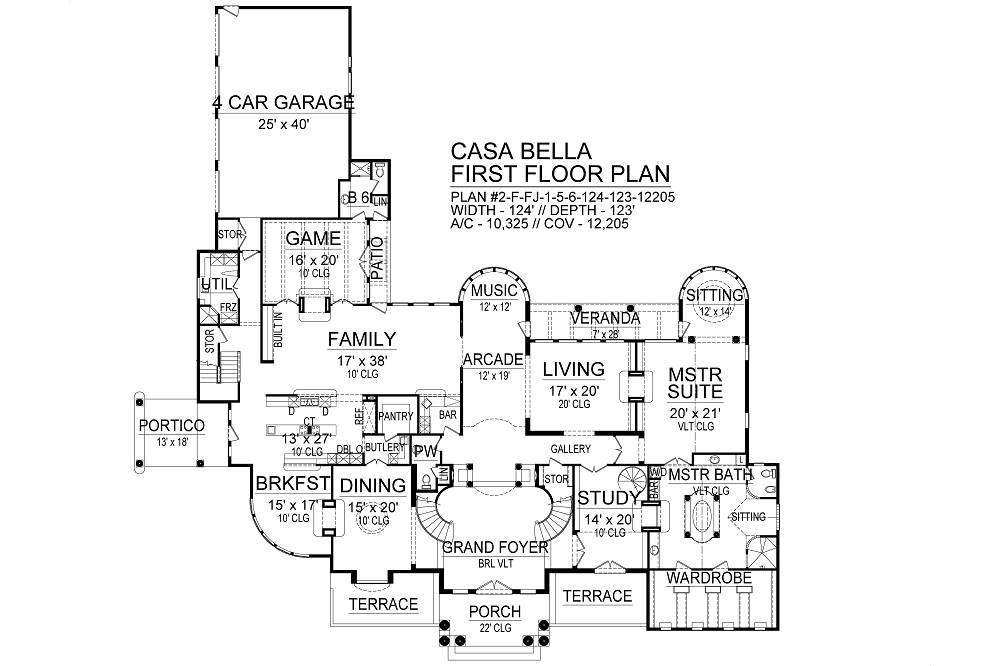

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

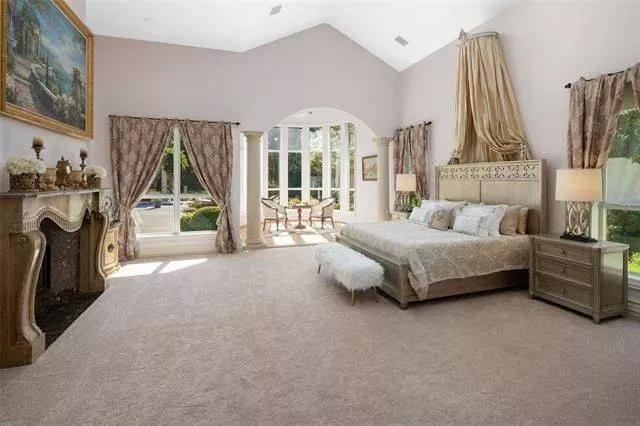

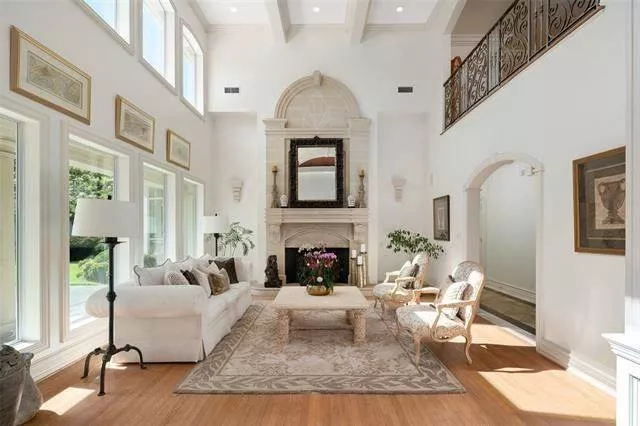

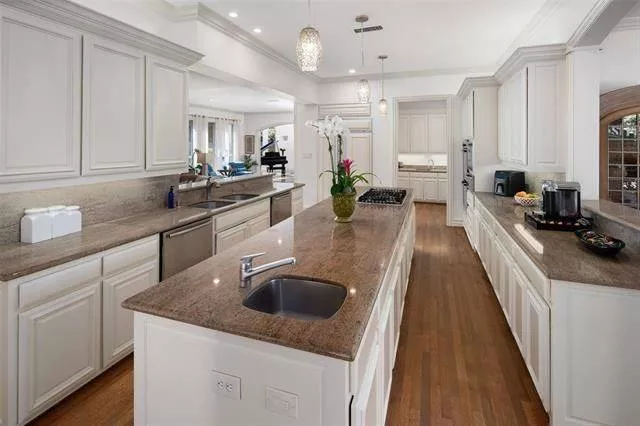

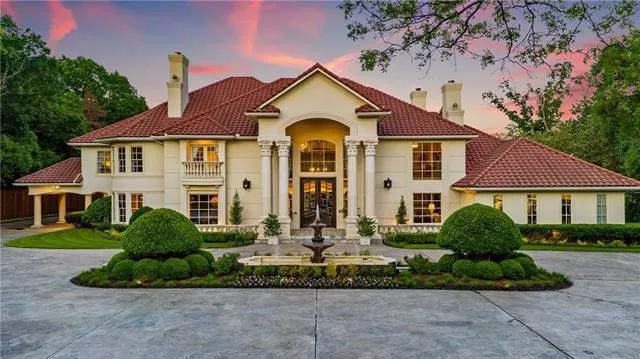

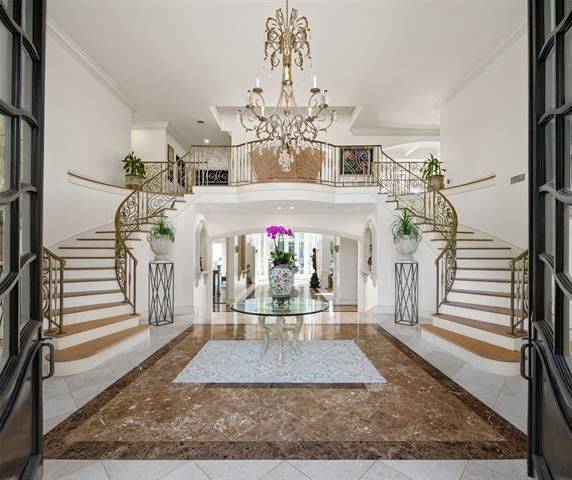

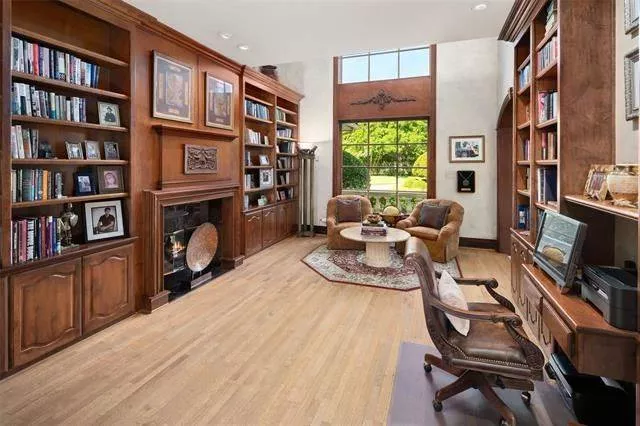

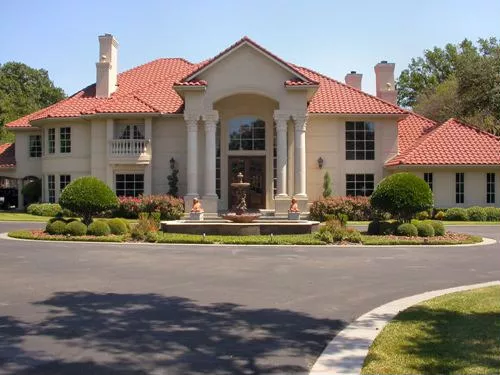

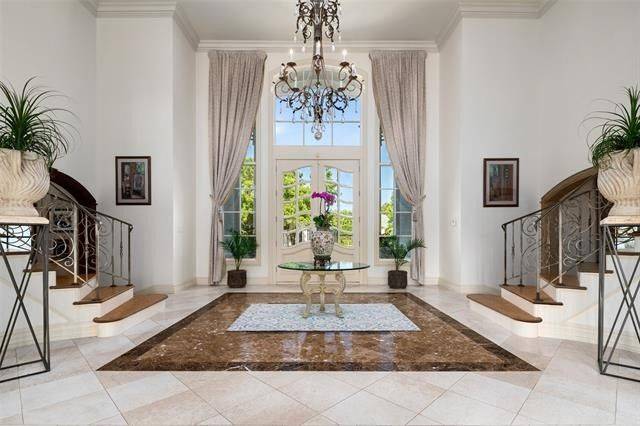

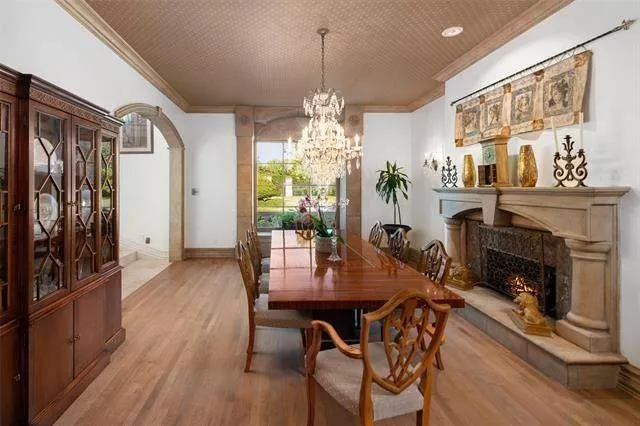

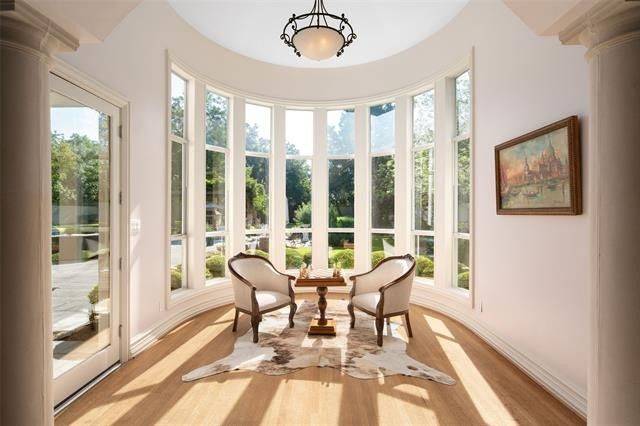

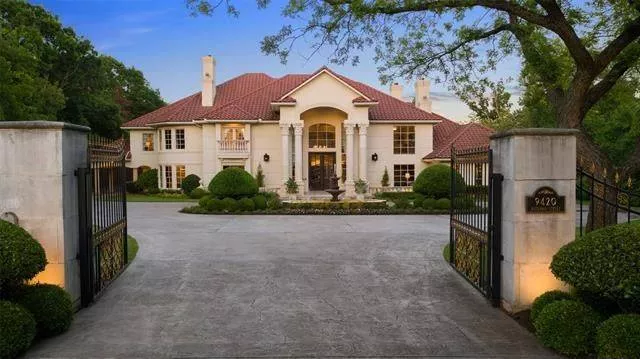

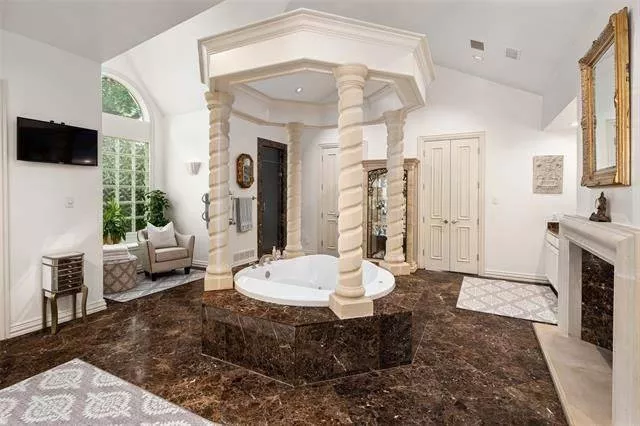

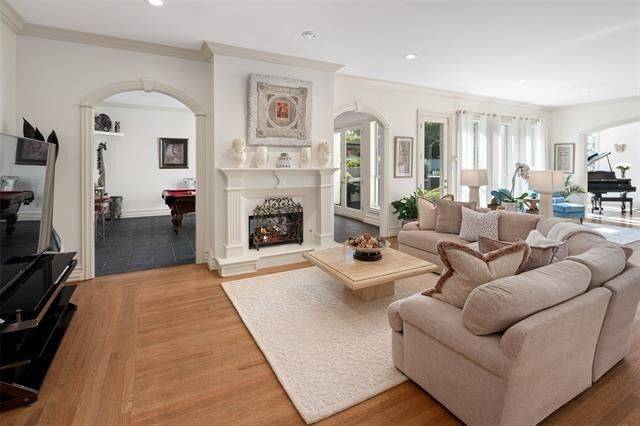

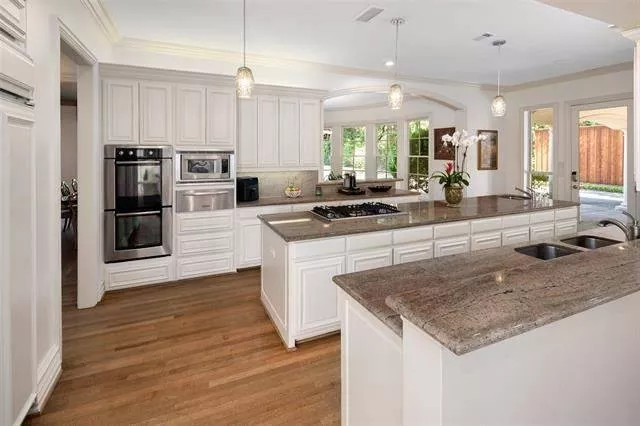

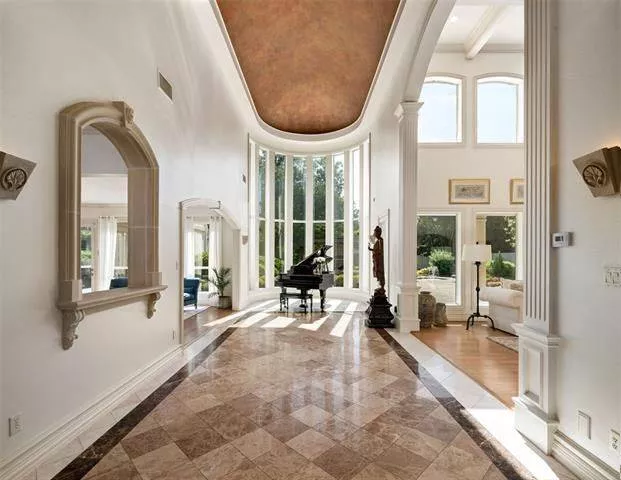

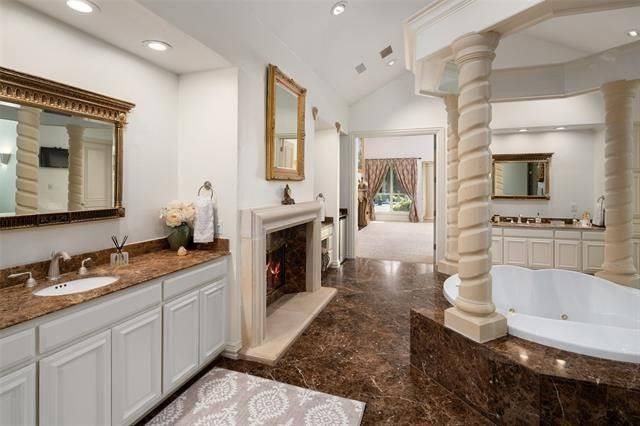

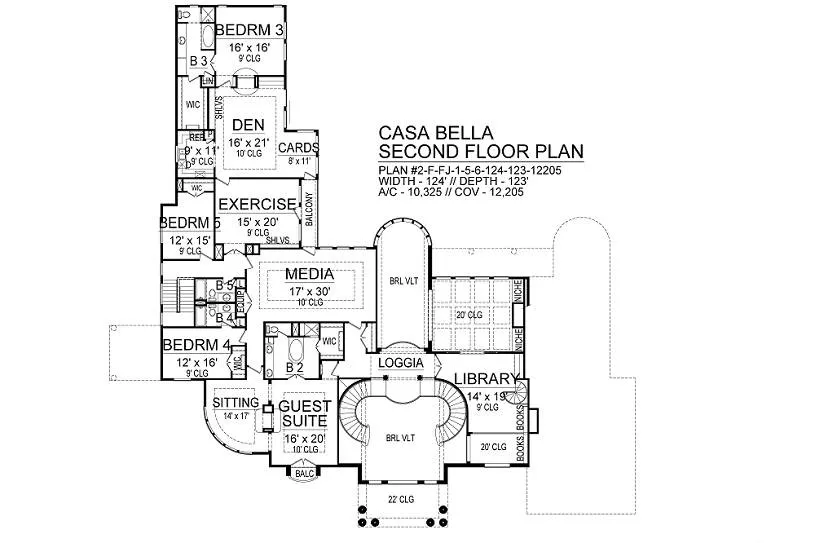

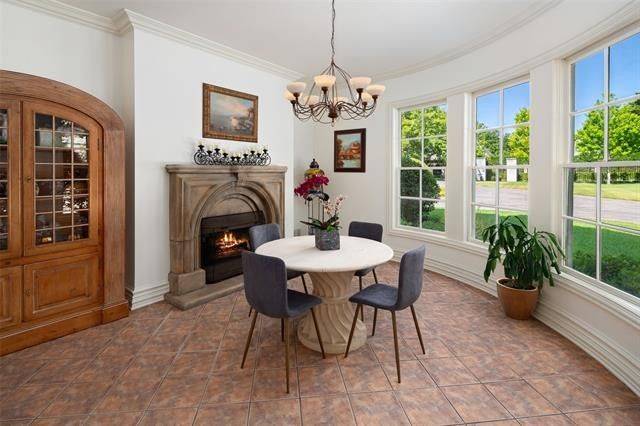

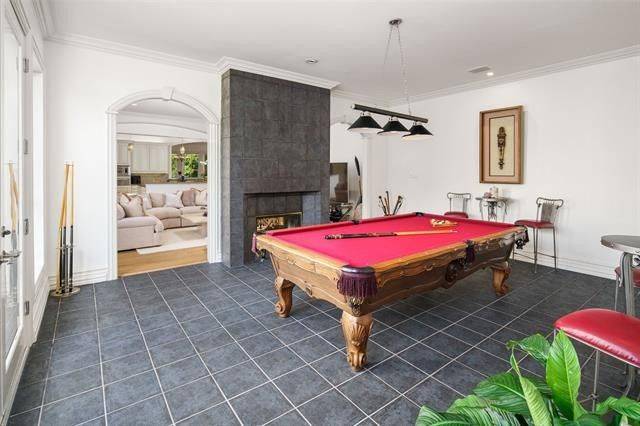

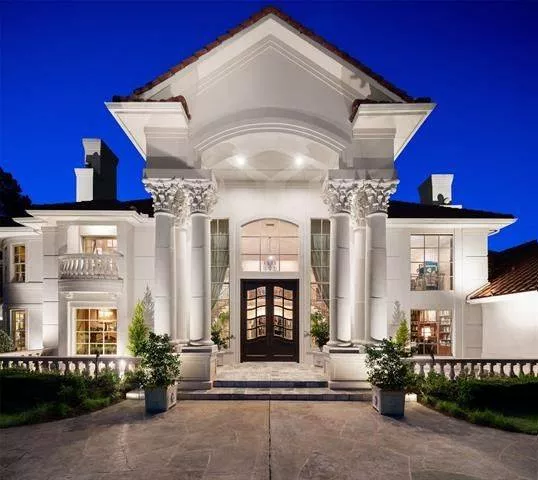

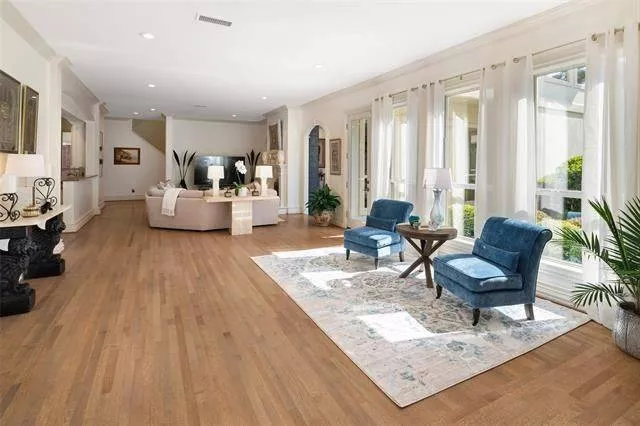

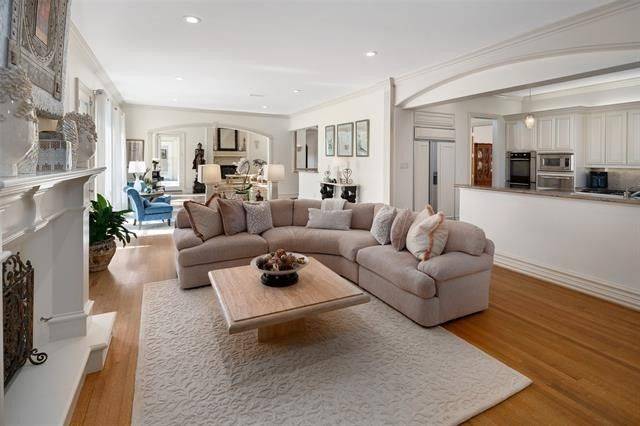

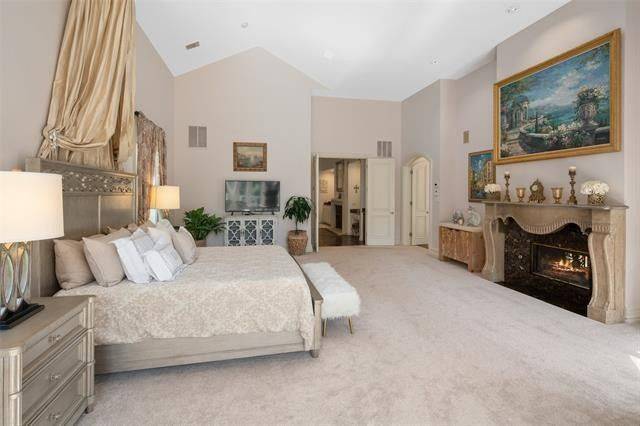

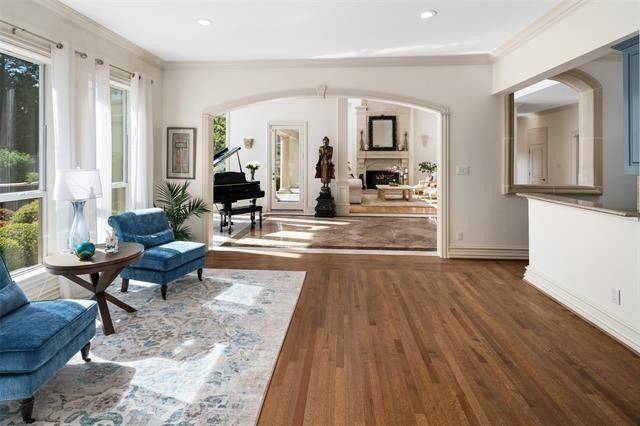

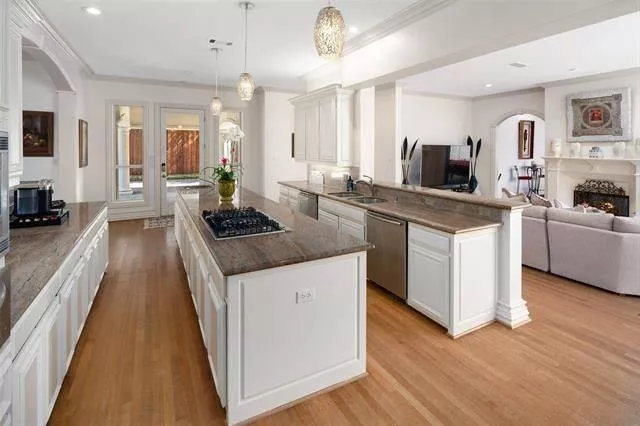

This Tuscan mansion offers all the amenities you are looking for. From the two-story porch, flanked by terraces, entering the grand foyer is breathtaking. The double curved staircase winds its way to the second story. The study has its own spiral staircase to the library on the second level, with private access to one of the terraces. Through the gallery lie the living room, arcade and music room, with its curved bank of windows facing the backyard. Through the veranda, you can enter the sitting area of the master suite. The master suite boasts a vaulted ceiling, plus a lavish bath with his and hers vanities, separate shower, garden tub, sitting area and large wardrobe. The elegant dining room has access to the butlery, pantry and kitchen for ease in serving. The family room and kitchen are separated only by the breakfast bar in the kitchen, and a free-standing island offers extra counter space. Off the family room is the game room with patio access and a full bath. Fireplaces are shared between the master suite and living room, family and game room, study and master bath, and breakfast area and dining room. The second level of this luxury mansion home plan offers a library, plus a guest suite with sitting area and fireplace. Three additional bedrooms with full baths, along with a den, media room and exercise room, round out this level. Barrel vaulted ceilings and awesome views to the first level are amazing, completing this two-story luxury mansion home plan.


FEATURES & DETAILS

Kitchen features
Butler's Pantry
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Guest Suite
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Foundation Options
Slab
Additional features
2 Story Volume
Arches
Bonus Room
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Open Floor Plan
Vaulted Ceilings
Garage Location
Rear
Garage Options
Attached
Side-entry
12,205 Ft
2
Total Structure
10,325 Ft
2
Total Heated
6,114 Ft
2
1st Floor
4,211 Ft
2
2nd Floor
5
Bedrooms
6.5
Bathrooms
4
Garage
2
Stories
123' 4"
Width
122' 6"
Depth
38' 0"
Height
10' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
Single
Dwelling Number

Unheated Living Space
1,087 Ft
2
Garage
346 Ft
2
Porch
287 Ft
2
Deck


Plan Package Options

 Select Plan Package
$5,895
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$5,895
$6,435
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$6,435
$8,095
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$8,095
 Need To Reverse Plan? (Optional)
$400
Readable Reverse

Reverse house plans with readable text and dimensions

$400
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
