HOUSE PLANS SALE
START AT $5,567.50
SQ FT
10,639
BEDS
6
BATHS
7.5
STORIES
3
CARS
4
WIDTH
140'
DEPTH
94'
© copyright by designer

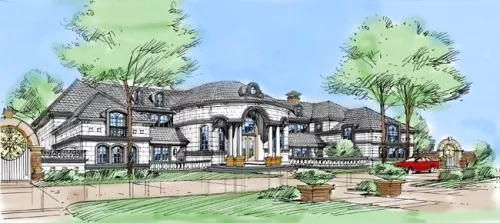

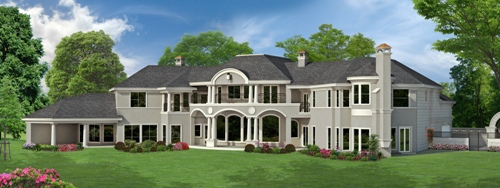

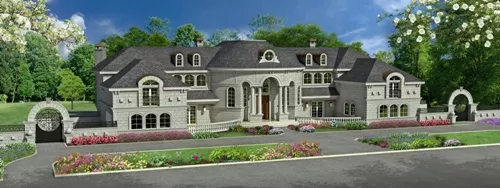

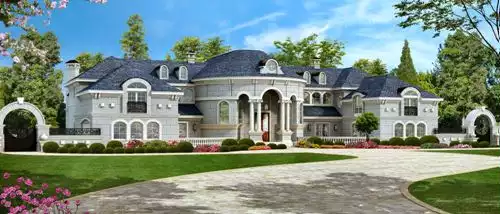

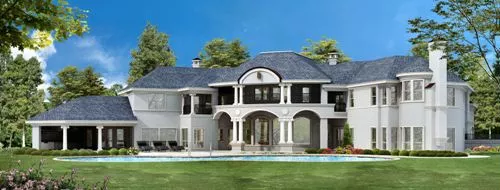

Photographs may reflect modified home | View all 5 images
SQ FT
10,639
BEDS
6
BATHS
7.5
STORIES
3
CARS
4

House Plan 4870: MUMBAI

This home plan's large decorative pillars are distinctive inside and out. The grand foyer is stunning, and all rooms fan out from the rounded center. The great room offers a bar and a bank of windows for views onto the veranda at the back of this mansion house plan. The family room has built-ins and a warming fireplace to help keep the kitchen and breakfast area cozy. A free-standing island and a breakfast bar serve the family room and breakfast area. The pantry and the utility room are adjacent to the butlery and the elegant dining room for ease in serving. The left wing houses the master suite, boasting a circular sitting area with fireplace; the lavish master bath flaunts his and hers sinks, a whirlpool tub and a shower for two. A gym and a large wardrobe complete this luxurious master suite. A quiet study is right outside the master suite. Two two-car garages flank the courtyards and grand entry to this luxurious mansion house plan. Upstairs, four family bedrooms with walk-in closets, built-ins, and full baths share space with a bonus room. A large guest suite mirrors the master suite on the first floor. These two rooms could be switched if you have elderly in-laws, allowing them to remain on the main level. A third level of the home contains a media room with a balcony.
Click to Zoom In on Floor Plan

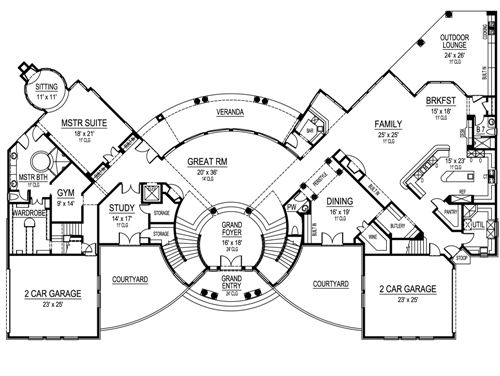

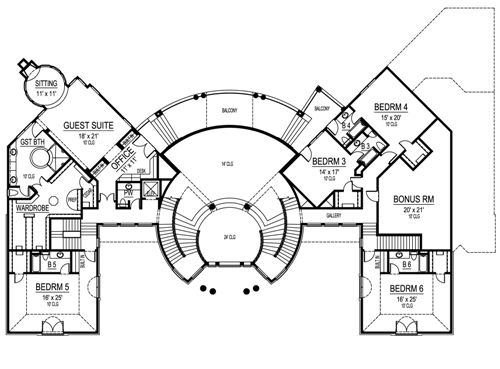

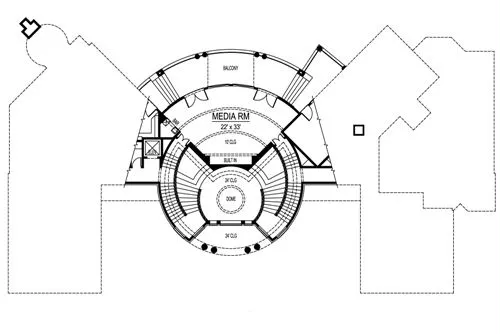

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$6,550
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$7,150
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build
2D electronic editable computer files
$8,995
 Need To Reverse Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$400
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Butler's Pantry
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Guest Suite
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Additional features
2 Story Volume
Dining Room
Family Room
Fireplace
Formal LR
Home Office
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Garage Location
Front
Garage Options
Attached
Side-entry
Foundation Options
Slab

Hide Plan Features
Details:
View All Plan Details
13,662 Ft
2
Total Structure:
10,639 Ft
2
Total Heated:
5,890 Ft
2
1st Floor:
4,015 Ft
2
2nd Floor:
734 Ft
2
3rd Floor:
6
Bedrooms:
7.5
Bathrooms:
4
Garage:
3
Stories:
140' 0"
Width:
94' 0"
Depth:
35' 0"
Height:
11' 0"
Main Floor Ceiling:
10' 0"
Upper Floor Ceiling:
2x6
Framing:
Stick
Roof Framing:
Single
Dwelling Number:
Unheated Living Space
1,267 Ft
2
Garage:
152 Ft
2
Porch:
597 Ft
2
Deck:
525 Ft
2
Patio:
544 Ft
2
Bonus Room:
Exterior Styles
Mediterranean
Traditional
Tuscan
Collections
Luxury
Old House Classics
Open Floor Plan
Outdoor Living

Hide Plan Details
