Sq Ft
4,200 FT²
Bed
5
Bath
3.5
Stories
2
Garage
3
Depth
77'
Width
54' 4"
On Sale
$1,360.00
$1,600.00
© copyright by designer
View All 6 Images | Photographs may reflect modified home
Sq Ft
4,200 FT²
From
$1,360.00
Bed
5
Bath
3.5
Stories
2
Garage
3
Depth
77'
Width
54' 4"

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

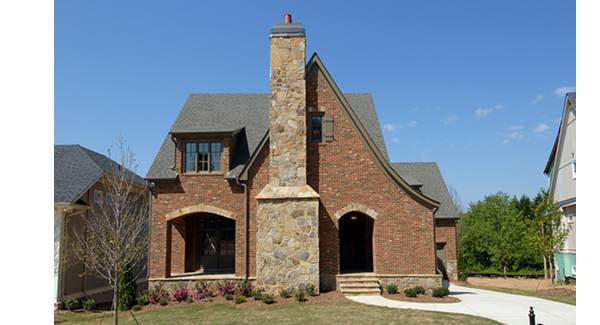

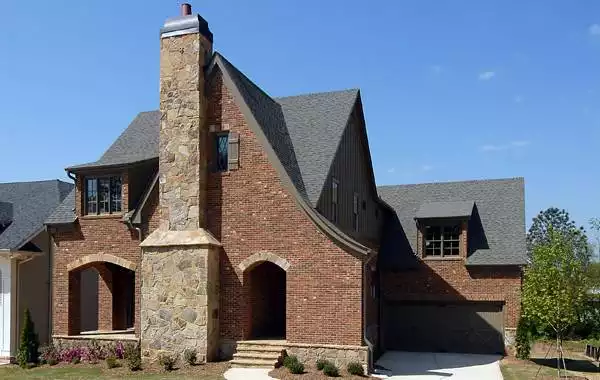

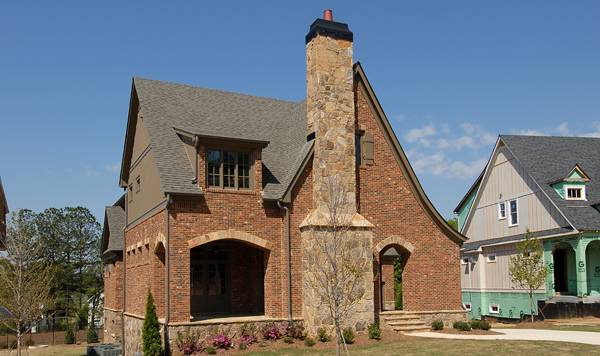

Tudor style English Cottage features a trellis at its front wall creating a welcoming entry to the home's motor court. The garage is placed at the back side of the house minimizing its appearance from the street.

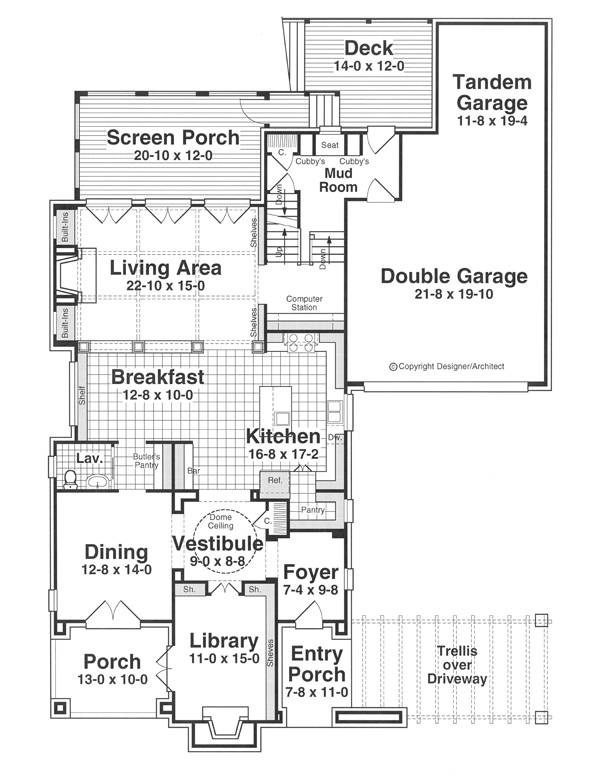

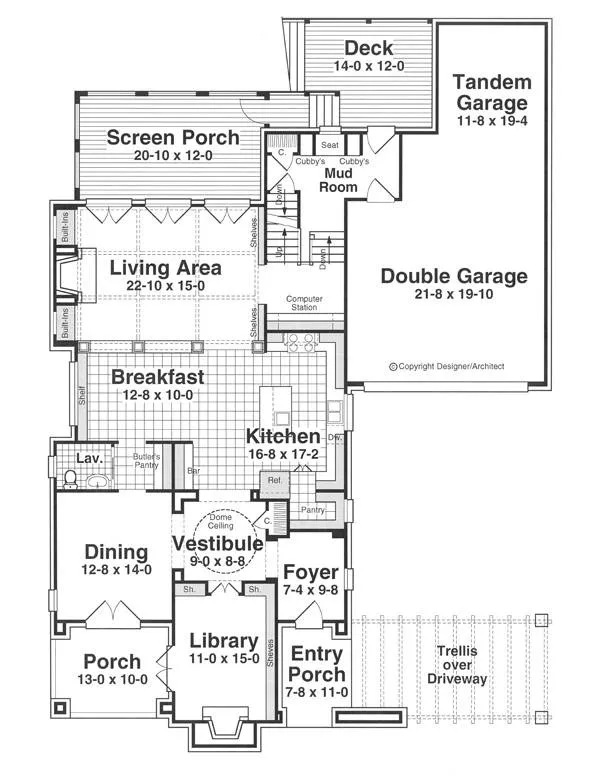

The front entry features a modest foyer opening to a central rotunda with a domed ceiling providing access to the main rooms of the house. Formality remains in tact without relying on a staircase feature.

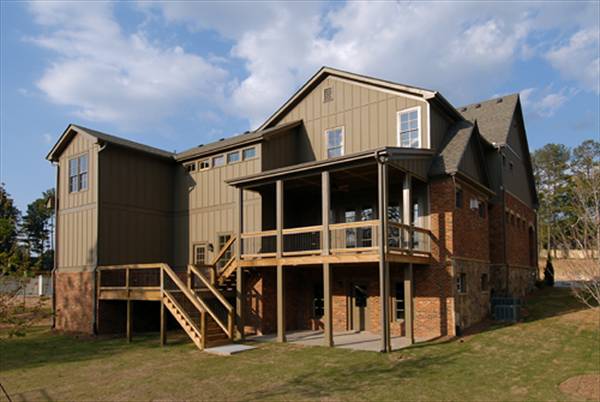

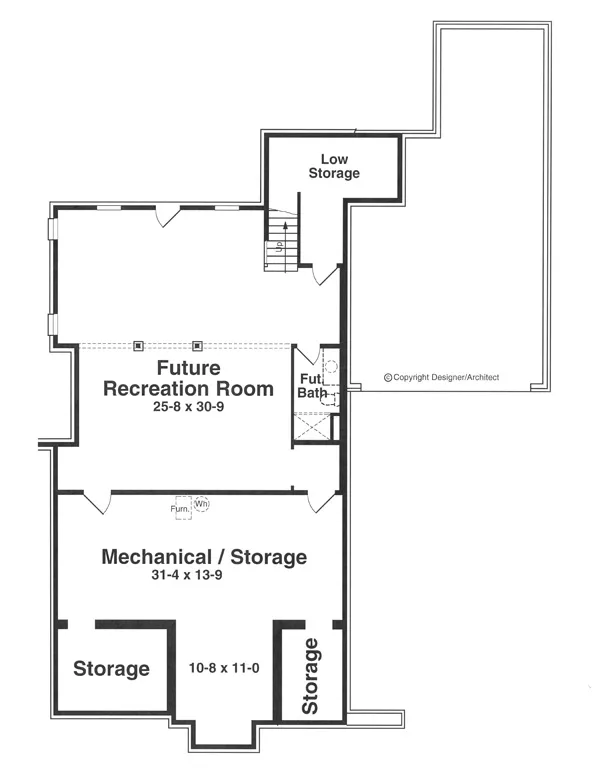

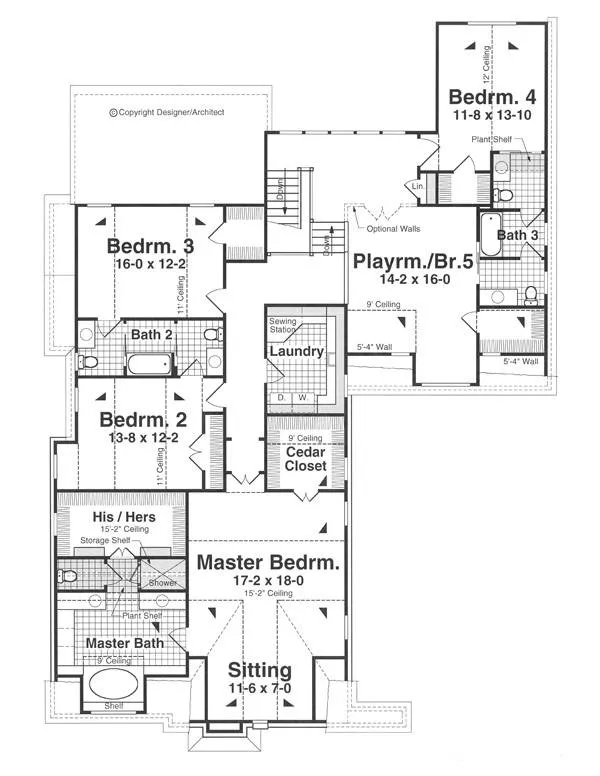

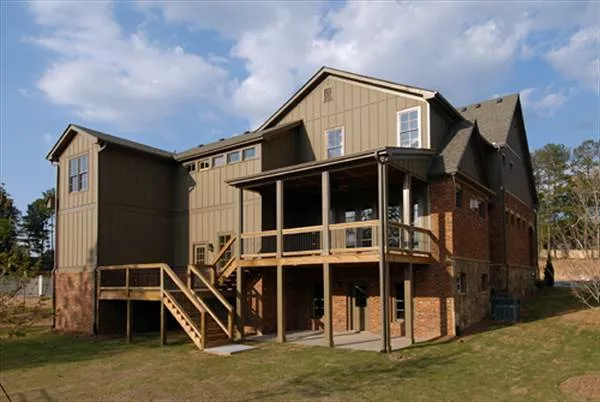

The staircase has been relocated to the rear of the house where it helps incorporate a slope in the property or allows the house to be elevated for gracious curb appeal. The staircase provides access to the lower level as well as a recreation room and guestrooms above the garage. A wonderful loft on this level creates its own upper foyer. The second floor features a spacious laundry room close to the children's rooms with a Jack & Jill bath. Beyond is a wonderful master suite utilizing the extreme roof pitches to create a dramatic ceiling which helps define the room's sitting area. The volume ceilings also create drama for the master bath and provide expanded space in the master closet with extra high storage space including shelving extended over the commode/shower ceiling.



FEATURES & DETAILS

Kitchen features
Butler's Pantry
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry
Bedroom features
Double Vanity Sink
Guest Suite
His and Hers Primary Closets
Primary Bdrm Upstairs
Separate Tub and Shower
Sitting Area
Walk-in Closet
Exterior features
Covered Front Porch
Deck
Rear Porch
Screened Porch/Sunroom
Foundation Options
Basement
Walkout Basement
Lot Options
Suited for narrow lot
Additional features
Dining Room
Fireplace
Foyer
Home Office
Laundry 2nd Fl
Library/Media Rm
Loft / Balcony
Open Floor Plan
Unfinished Space
Vaulted Ceilings
Garage Location
Side
Garage Options
Attached
Front-entry
Tandem
4,200 Ft
2
Total Heated
1,711 Ft
2
1st Floor
2,489 Ft
2
2nd Floor
1,925 Ft
2
Lower Floor
5
Bedrooms
3.5
Bathrooms
3
Garage
2
Stories
54' 4"
Width
77' 0"
Depth
33' 4"
Height
10' 0"
Main Floor Ceiling
8' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
12/12
Primary Roof Pitch
20/12
Gable Roof Pitch
5/12
Dormer Roof Pitch
5/12
Porch Roof Pitch
Single
Dwelling Number

Unheated Living Space
718 Ft
2
Garage
249 Ft
2
Porch
1,984 Ft
2
Deck


Plan Package Options

 Select Plan Package
$1,000
PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$1,000
$1,600
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,600
$1,750
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,750
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
