HOUSE PLANS
START AT $1,100
SQ FT
4,436
BEDS
5
BATHS
4
STORIES
1
CARS
2
WIDTH
71' 4"
DEPTH
67' 4"
© copyright by designer
Photographs may reflect modified homes.   View all 4 images
SQ FT
4,436
BEDS
5
BATHS
4
STORIES
1
CARS
2



House Plan 6834: TIMBERLAKE-B

Dramatic gables, stone accents & arched trim add interest to this unusual plan. Designed to fit a sloping lot, this inverted floor plan fits the most sloping of lots. Decks and an all weather porch span the entire length of the house providing a generous raised "backyard" space.

Inside, the lay out is that of a typical "master on the main" design. It even features a guest suite near the ga...  Read more >
Click to Zoom In on Floor Plan

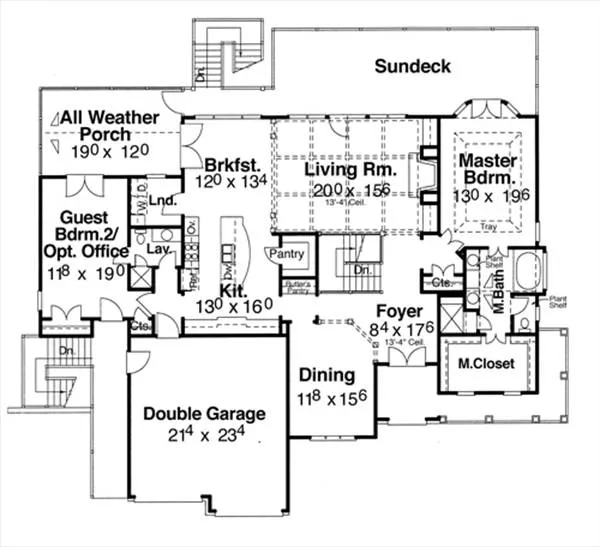

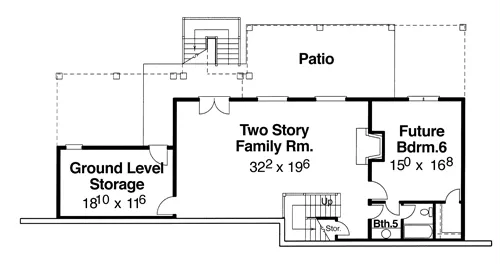

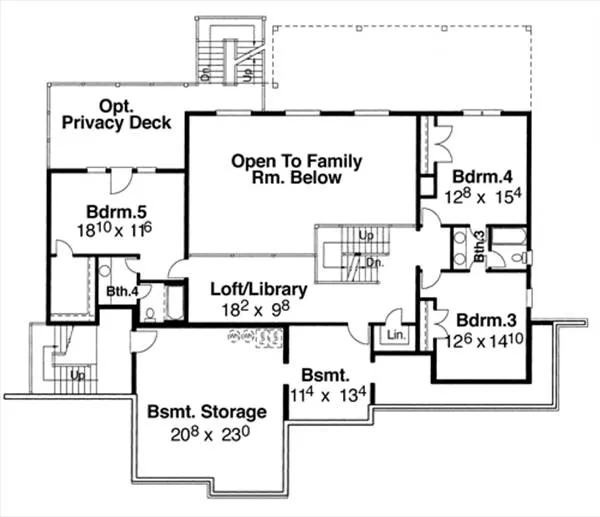

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package
PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set
PDFs NOW!™
Digital set of plans for bidding purposes only
$1,100
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
PDFs NOW!™
Most recommended package
$1,650
Vellums

"Recommended" - For making minor changes to your house plans. Delivered on Reproducible Vellum.
Vellums
A vellums package
$1,800
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,800
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$1000
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Butler's Pantry
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry
Bedroom features
Double Vanity Sink
Guest Suite
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Additional features
Arches
Dining Room
Fireplace
Foyer
Great Room
Inverted Living
Laundry 1st Fl
Loft / Balcony
Open Floor Plan
Rec Room
Storage Space
Unfinished Space
Vaulted Ceilings
Exterior features
Covered Front Porch
Deck
Rear Porch
Wraparound Porch
Garage Location
Front
Garage Options
Attached
Front-entry
Foundation Options
Basement
Walkout Basement
Lot Options
Suited for sloping lot

Hide Plan Features
Details:
View All Plan Details
4,436 Ft
2
Total Heated:
2,221 Ft
2
1st Floor:
1,466 Ft
2
2nd Floor:
749 Ft
2
Lower Floor:
5
Bedrooms:
4
Bathrooms:
2
Garage:
1
Stories:
71' 4"
Width:
67' 4"
Depth:
28' 0"
Height:
9'
Main Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
8/12
Primary Roof Pitch:
12/12
Gable Roof Pitch:
2/12
Porch Roof Pitch:
Single
Dwelling Number:
1st Floor
Bonus Access:
Unheated Living Space
504 Ft
2
Garage:
722 Ft
2
Storage:
453 Ft
2
Porch:
700 Ft
2
Deck:
288 Ft
2
Patio:
388 Ft
2
Bonus Room:
Exterior Styles
European
Southern
Traditional
Collections
Empty Nester
Mountain
Open Floor Plan
PDFs Fast!
Split Bedroom

Hide Plan Details
Best Price Guarantee

If you find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% Satisfaction Guarantee

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
