House Plan 9544: Northhaven 2

Stately columns add sophistication to this three-bedroom Mediterranean design. Beyond the front door, two bedrooms share a split bath. An angled island is a fun feature in the main living areas. Note the fireplace and the cathedral ceiling in the great room.  Read more >

House Plan Details

Sq. Ft.
1,779
Beds
3
Baths
2.0
Stories
1
Garages
2
Width
38' 0"
Depth
78' 0"
1st Floor
1,779
Garage
463
Select Plan Package
5 sets
$1025
Select Foundation Options
$0
Monolithic slab (included...
$0
Optional Add-Ons
Subtotal: $1025

PLAN IMAGES

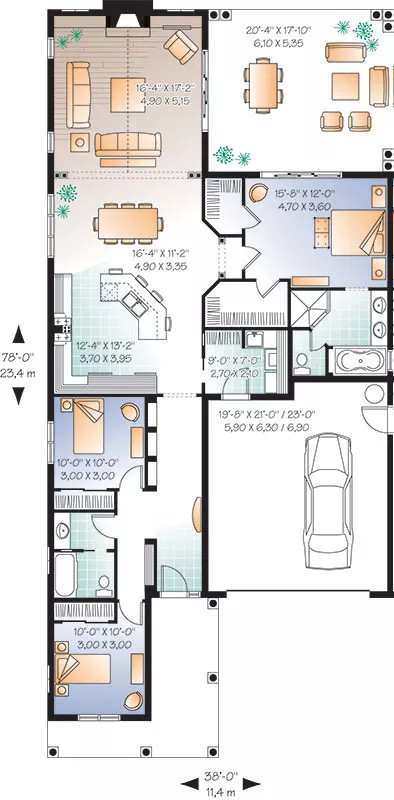

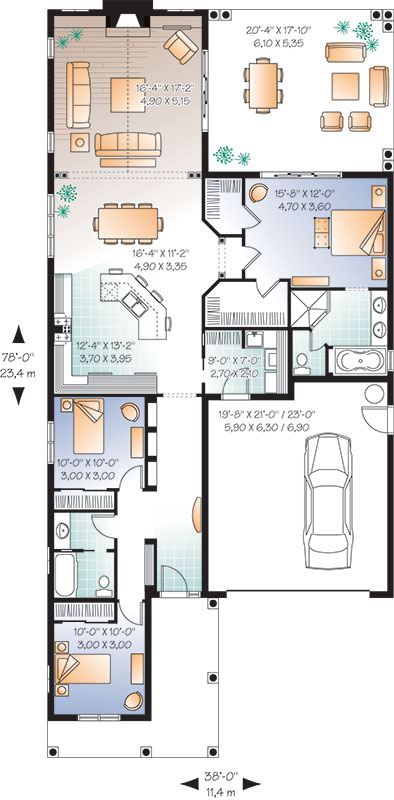

First level

First level
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.0
Garage: 2
Stories: 1
Exterior Style
Bungalow
Mediterranean
Dimensions
Width: 38' 0"
Height: 19' 11"
Depth: 78' 0"
Heated Living Space
Total Sq. Ft: 1,779
1st Floor: 1,779
Unheated Living Space
Garage: 463
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: 8
Framing Information
Framing: 2x6
Roof Framing: Truss
Bedroom Features
Double Vanity Sink
Guest Suite
His and Hers Master Closets
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet
Kitchen Features
Butler's Pantry
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Additional Room Features
Family Room
Fireplace
Formal LR
Great Room
Laundry 1st Fl
Mud Room
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Features
Attached
Lot Features
Suited for narrow lot
Roof Pitch
Primary: 6/12

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
