House Plan 9543: Westhaven

This lovely three-bedroom cottage offers a narrow width, making it suitable for just about any lot. Inside, the open kitchen includes island snack space for four. The great room is the preferred gathering place, with its focal-point fireplace.  Read more >

House Plan Details

Sq. Ft.
1,779
Beds
3
Baths
2.0
Stories
1
Garages
2
Width
38' 0"
Depth
78' 0"
1st Floor
1,779
Garage
463
Select Plan Package
5 sets
$1025
Select Foundation Options
$0
Crawlspace (included)
$0
Optional Add-Ons
Subtotal: $1025

PLAN IMAGES

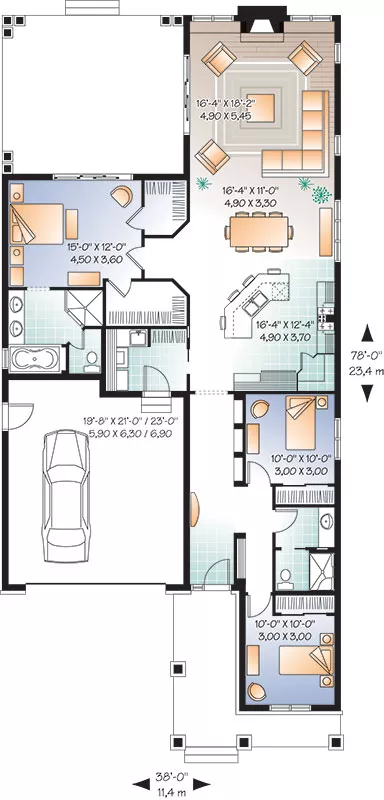

First level

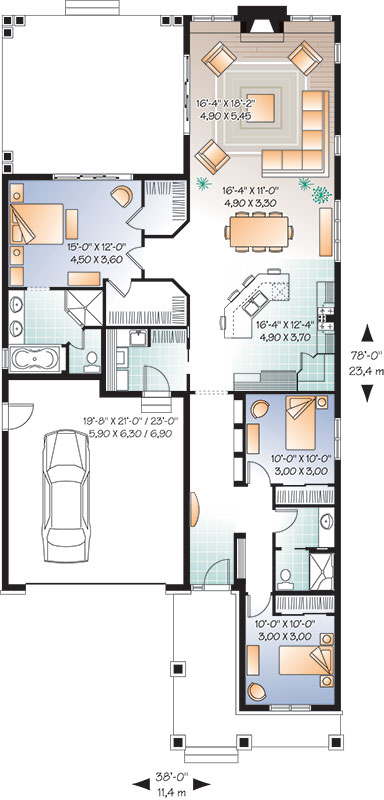

First level
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.0
Garage: 2
Stories: 1
Exterior Style
Cottage
Craftsman
Lake
Dimensions
Width: 38' 0"
Height: 21' 1"
Depth: 78' 0"
Heated Living Space
Total Sq. Ft: 1,779
1st Floor: 1,779
Unheated Living Space
Garage: 463
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: 9
Framing Information
Framing: 2x6
Roof Framing: Truss
Bedroom Features
Double Vanity Sink
Guest Suite
His and Hers Master Closets
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet
Kitchen Features
Butler's Pantry
Kitchen Island
Walk-in Pantry
Additional Room Features
Arches
Family Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Mud Room
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Features
Attached
Lot Features
Roof Pitch
Primary: 6/12

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer

Questions & Answers

Have questions about this plan?
