HOUSE PLANS
START AT $1,250
SQ FT
3,767
BEDS
4
BATHS
4.5
STORIES
2
CARS
3
WIDTH
82'
DEPTH
91' 10"
© copyright by designer
Photographs may reflect modified homes.   View all 5 images
SQ FT
3,767
BEDS
4
BATHS
4.5
STORIES
2
CARS
3



House Plan 9022: Barcelona

This luxurious Mediterranean house offers unique ceiling styles and roof lines, balconies, and amenities. Visually stunning, the entrance to this beautiful mansion opens into an astounding two-story foyer, and greeted by the staircase to the upper level of this plan. Attached to the foyer is a quiet two-story study containing storage and the two-story formal dining room. Through French doors, the ...  Read more >
Click to Zoom In on Floor Plan

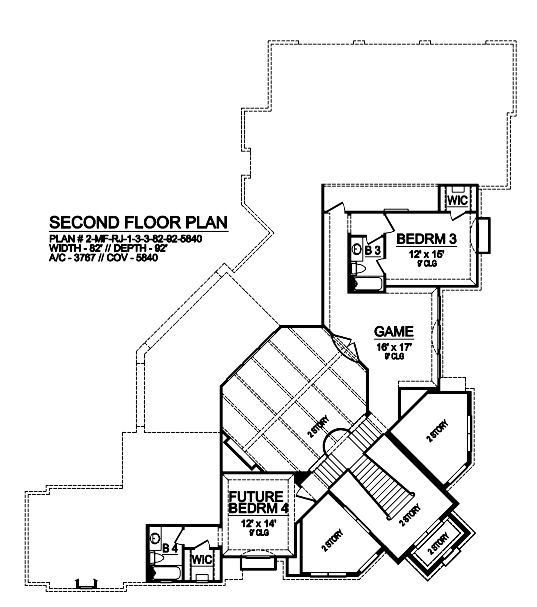

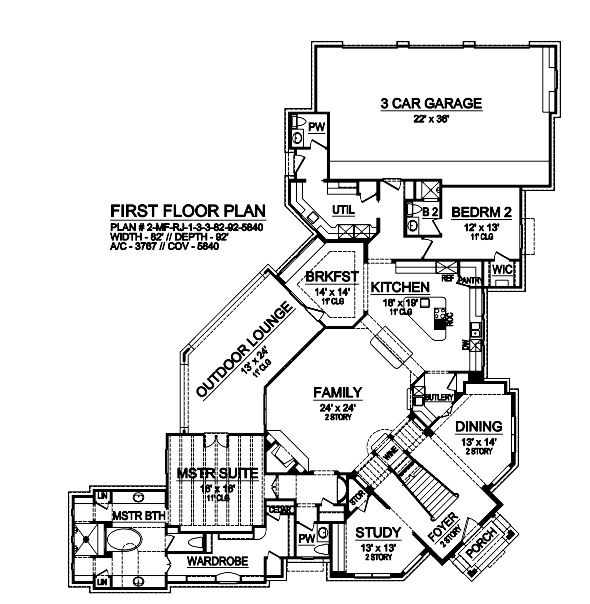

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$1,250
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,450
CAD Single Use

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$1,875
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$150
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Butler's Pantry
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry
Bedroom features
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Additional features
2 Story Volume
Family Room
Foyer
Laundry 1st Fl
Vaulted Ceilings
Wine Cellar
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Garage Location
Rear
Garage Options
Attached
Rear-entry
Foundation Options
Slab

Hide Plan Features
Details:
View All Plan Details
5,840 Ft
2
Total Structure:
3,767 Ft
2
Total Heated:
3,038 Ft
2
1st Floor:
684 Ft
2
2nd Floor:
4
Bedrooms:
4.5
Bathrooms:
3
Garage:
2
Stories:
82' 0"
Width:
91' 10"
Depth:
32' 0"
Height:
11
Main Floor Ceiling:
9
Upper Floor Ceiling:
Single
Dwelling Number:
Unheated Living Space
929 Ft
2
Garage:
60 Ft
2
Porch:
389 Ft
2
Patio:
Exterior Styles
Mediterranean
Southwest
Tuscan

Hide Plan Details
