3,761 FT²

Beds
4

Baths
4.5

Stories
2

Garage
3

Depth
62'

Width
62' 4"

On Sale
$1,070.70
$1,290.00

View All 33 Images | Photographs may reflect modified home

Sq Ft

3,761 FT²

From

$1,070.70

Beds

Baths

4.5

Stories

Garage

Depth

62'

Width

62' 4"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

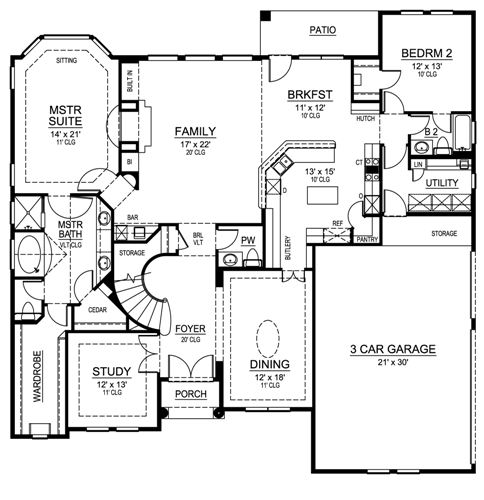

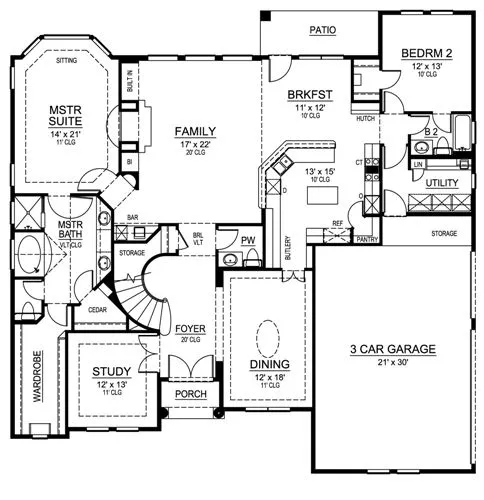

First Floor

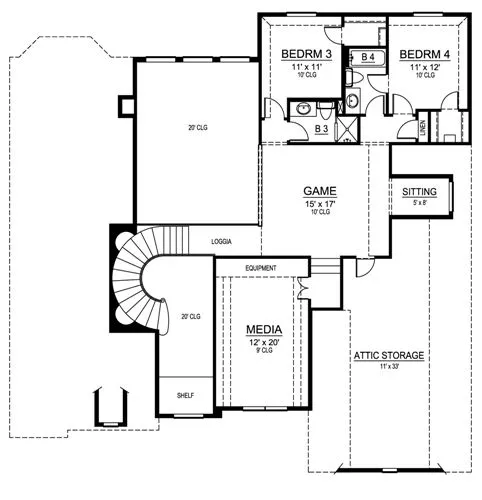

Second Floor

First Floor

Second Floor

About This Plan

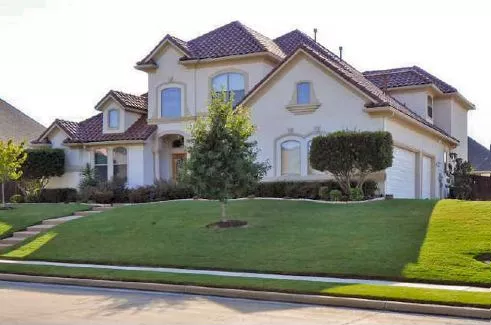

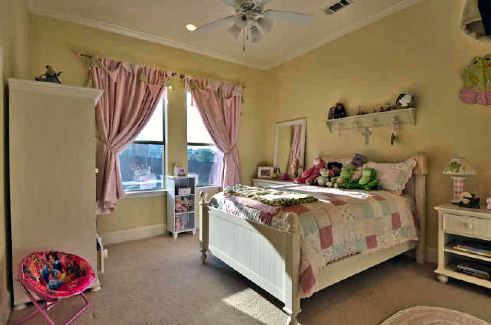

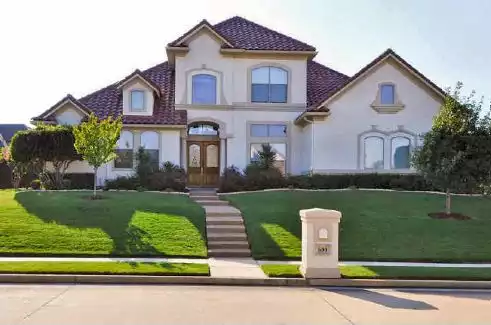

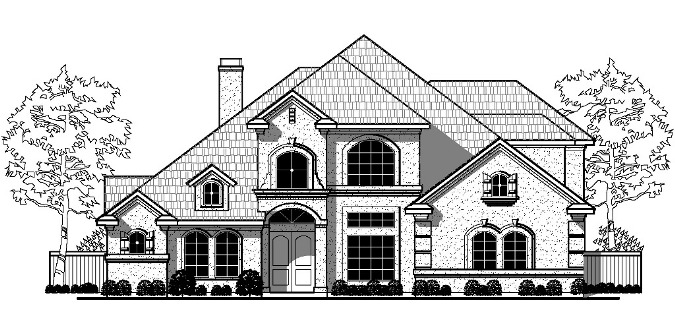

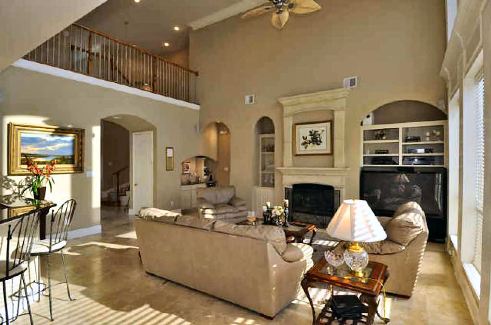

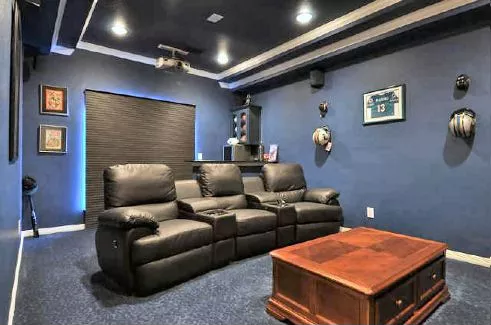

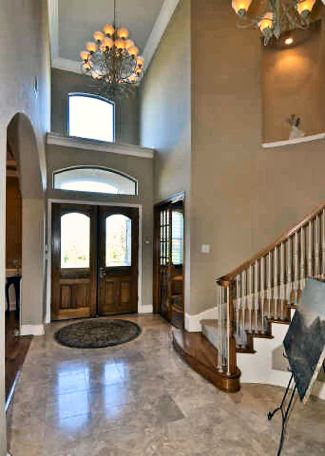

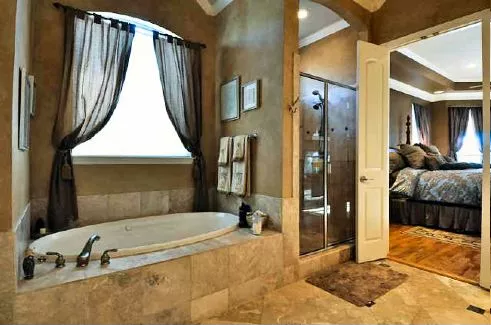

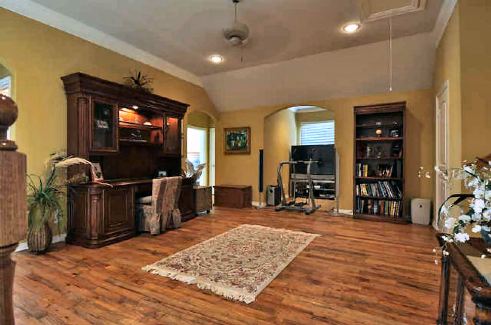

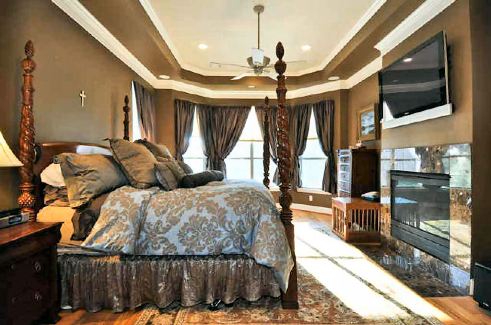

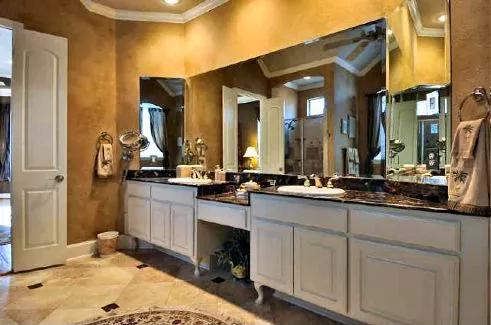

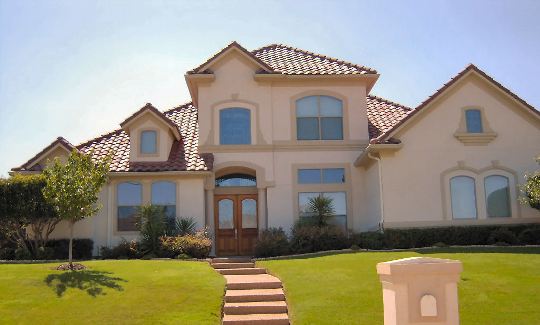

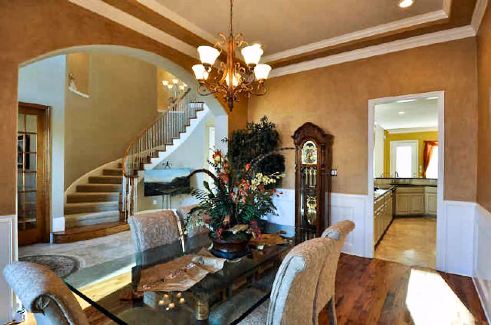

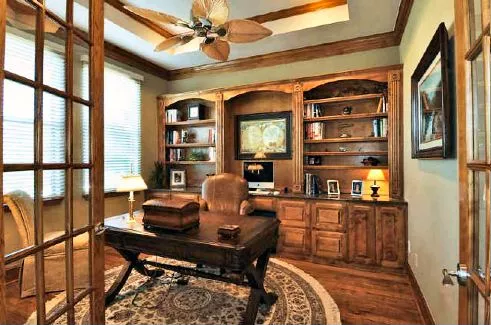

This luxury Mediterranean home offers a welcoming foyer that leads to an elegant dining room and cozy study. The island kitchen serves the breakfast nook and the family room in the open entertaining area. A secluded bedroom with direct bath access makes a great guest room. The master suite boasts a deluxe bath with a vaulted ceiling, plus a spacious wardrobe. The upstairs includes two bedrooms, two baths, a central game room and a media room.

See All Plan Options

FEATURES & DETAILS

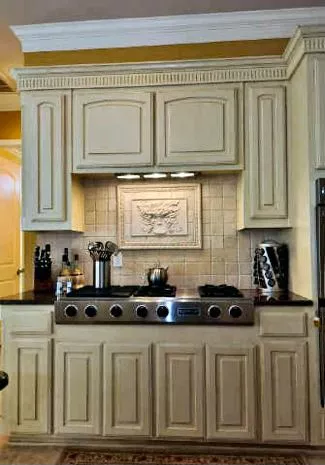

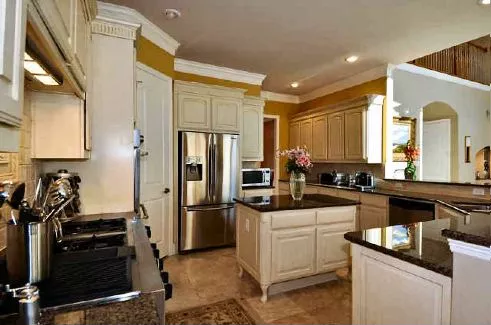

Kitchen features

Kitchen Island

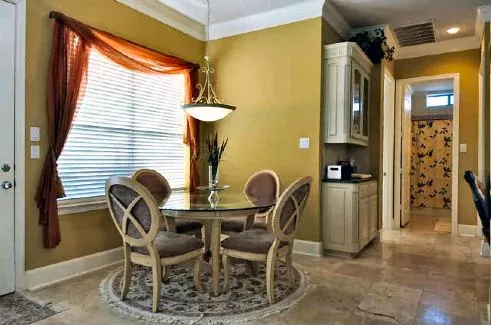

Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry

Bedroom features

Double Vanity Sink
His and Hers Primary Closets
Primary Bdrm Main Floor
Sitting Area
Split Bedrooms
Walk-in Closet

Exterior features

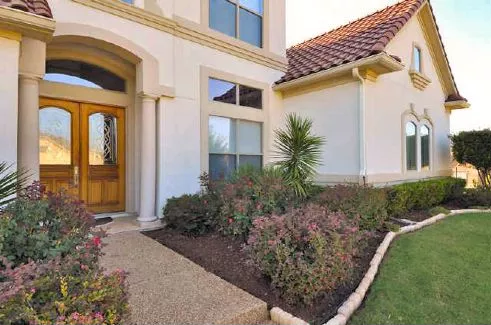

Covered Front Porch

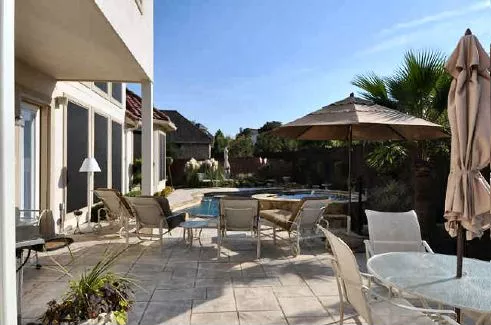

Covered Rear Porch
Front Porch
Rear Porch

Foundation Options

Slab

Lot Options

Suited for corner lot
Suited for sloping lot
Suited for view lot

Additional features

2 Story Volume
Arches
Dining Room
Family Room
Fireplace
Foyer
Great Room
Home Office
In-law Suite
Laundry 1st Fl

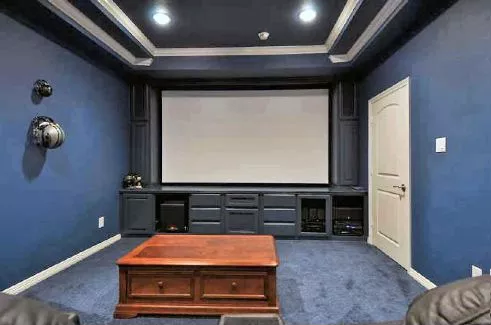

Library/Media Rm
Open Floor Plan
Vaulted Ceilings

Garage Location

Front

Garage Options

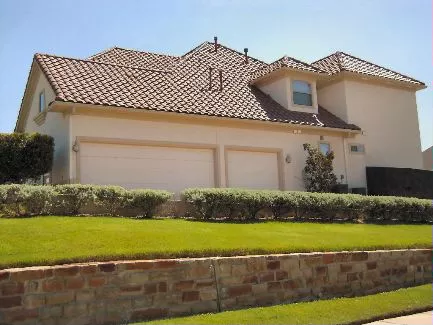

Attached
Side-entry

4,605 Ft

Total Structure

3,761 Ft

Total Heated

2,579 Ft

1st Floor

1,182 Ft

2nd Floor

Bedrooms

4.5

Bathrooms

Garage

Stories

62' 4"

Width

62' 0"

Depth

34' 5"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

710 Ft

Garage

39 Ft

Porch

95 Ft

Patio

Exterior Styles

Mediterranean

Traditional

Tuscan

Collections

Luxury

Old House Classics

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $1,071

PDF Single Build

~~$1,290~~

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $1,071

Sale: $1,594

5 Printed Sets

~~$1,920~~

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $1,594

CAD Single Build

~~$1,920~~

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $1,594

Need To Reverse Plan? (Optional)

$200

Readable Reverse

Reverse house plans with readable text and dimensions

$200

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
