House Plan 5030:

With arches and shutters, this elegant home would look great in any neighborhood. The unusual floor plan offers arriving visitors a view straight ahead to the fireplace in the family room. The master suite is nothing short of spectacular, with its amazing private bath and French doors to a covered patio.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
2,802
Beds
4
Baths
3.0
Stories
2
Garages
2
Width
51' 0"
Depth
79' 4"
Modify this Home Plan
Estimate the Cost to Build
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
FIVE SETS OF BONDPRINTS
$1060
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $0
SEE DETAILED PLAN OPTIONS
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

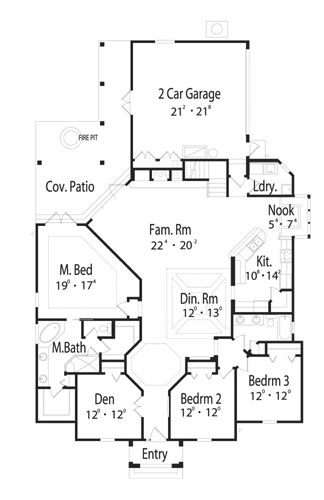

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
2,802
1st Floor SQ. FT.:
2,293
2nd Floor SQ. FT.:
509
Bedrooms:
4
Bathrooms:
3.0
Garage:
2
Stories:
2
Main Ceiling Height:
10-12'
Upper Ceiling Height:
9'
Framing:
2x4
Roof Framing:
Truss
Roof Pitch:
Primary: 8/12
Width:
51' 0"
Depth:
79' 4"
Height:
26' 6"
Exterior Styles:
Contemporary
European
Mediterranean
Unheated Living Space:
Garage: 510
HOME FEATURES
Bedroom Features:
Double Vanity Sink
His and Hers Master Closets
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Kitchen Features:
Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry
Additonal Features:
Arches
Bonus Room
Dining Room
Family Room
Fireplace
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Unfinished Space
Garage Features:
Attached
Garage Location:
Side
Lot Features:
Suited for narrow lot

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
More Plans By This Designer >
THD-4308
THD-4171
