HOUSE PLANS
START AT $1,050
SQ FT
2,352
BEDS
4
BATHS
3
STORIES
1
CARS
2
WIDTH
61' 8"
DEPTH
64' 8"
© copyright by designer
Photographs may reflect modified homes.   View all 3 photos
SQ FT
2,352
BEDS
4
BATHS
3
STORIES
1
CARS
2



House Plan 4028:

Array of varied arched windows sets off a striking rhythm in the Italianate home. Double doors reveal the foyer, which announces the living room, accented by a wet bar, niche and patio access. Coffered dining room combines with the living room to create a perfect space for formal entertaining. Arched entry to the informal living area presents the bayed breakfast nook and adjoining family room, which is warmed by a fireplace.  Read more >

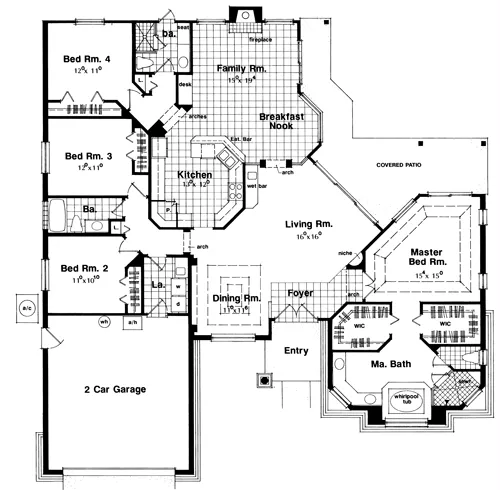

Click to Zoom In on Floor Plan
Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
PDFs NOW!™
Most recommended package
$1,050

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,250

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF
PDFs NOW!™
Digital plans plus 5 printed sets
$1,400
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry
Bedroom features
Double Vanity Sink
His and Hers Master Closets
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Lot features
Suited for view lot
Additional features
Arches
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Mud Room
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Features
Attached
Front-entry

Hide Plan Features
Details:
View All Plan Details
2,352 Ft
2
Total Heated:
4
Bedrooms:
3
Bathrooms:
2
Garage:
1
Stories:
61' 8"
Width:
64' 8"
Depth:
25' 4"
Height:
Varies
Main Floor Ceiling:
8" Block/Wood
Framing:
Truss
Roof Framing:
7/12
Primary Roof Pitch:
Single
Dwelling Number:
None
Bonus Access:
Unheated Living Space
481 Ft
2
Garage:
77 Ft
2
Porch:
235 Ft
2
Patio:
Exterior Styles
Beach
Contemporary
Mediterranean
Southwest
Collections
Concrete
Florida
Open Floor Plan
Outdoor Living
Split Bedroom

Hide Plan Details
