Sq Ft
5,342 FT²
Bed
4
Bath
4.5
Stories
1
Garage
3
Depth
97' 4"
Width
113' 8"
On Sale
$1,955.00
$1,955.00
© copyright by designer
View All 2 Images | Photographs may reflect modified home
Sq Ft
5,342 FT²
From
$1,955.00
Bed
4
Bath
4.5
Stories
1
Garage
3
Depth
97' 4"
Width
113' 8"

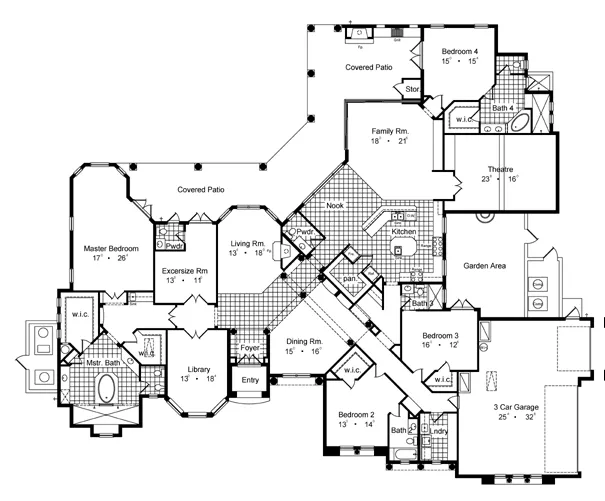

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

The Mediterranean 1 story has it all and then some. Upon entry into the raised foyer we view the bayed living room beyond with a ventless fireplace. To the right is the columned dining room and gallery with large niches and a wet bar. The gallery continues for access to the secondary bedrooms, laundry room and 3 car garage. Beyond the dining room / gallery is the family area of this home with a large island kitchen, dual space for refridgerators, dual space for ranges, a large walk-in pantry between the ref. whose entrance could be consealed by the cabinetry matching the ref. doors. Large nook area will accomodate a family size table and chair layout. The family room has large sliding glass corner doors that when open make the covered patio and family room feel as one large entertainment area. Thru the double doors off the family room is the Theatre with its split level foor to accomodate theatre seating layouts. Bedroom 4 also off of the family room is like a second master suite with its lavish bath layout containing all the amenities of a full master bath.

On the master wing of this home we have a large library with its baywindow facing the front. Across the hall is excersize room with shared pool bath. The master entry gallery has a juice bar and amble dressing space and his walk-in closet. The large master bath with its island tub flanked by walk-in entries to the enormous shower. His and her vanities, private toilet chamber with bidet and a large walk-in closet for her finish out this sumptuous bath. The master bedroom has a large sitting area and access to the covered patio.


FEATURES & DETAILS

Foundation Options
Slab
Garage Location
Side
Garage Options
Attached
5,342 Ft
2
Total Heated
4
Bedrooms
4.5
Bathrooms
3
Garage
1
Stories
113' 8"
Width
97' 4"
Depth
10' 0"
Main Floor Ceiling
Block
Framing
Truss
Roof Framing
6/12
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
892 Ft
2
Garage
19 Ft
2
Storage
52 Ft
2
Porch
961 Ft
2
Patio


Plan Package Options

 Select Plan Package
$900
PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$900
$2,300
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,300
$2,500
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,500
$2,650
5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,650
$4,600
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$4,600
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
