Search Plans


Sq Ft
6,651 FT²

Beds
4

Baths
4.5

Stories
2

Garage
3

Depth
74' 10"

Width
105'
From
$2,860.00
© copyright by designer

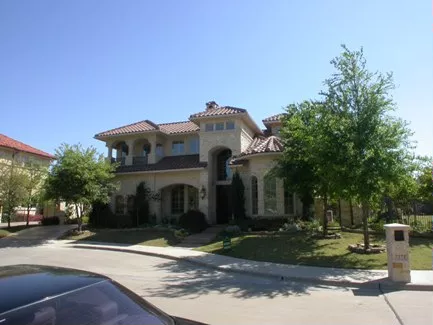

View All 17 Images | Photographs may reflect modified home
Sq Ft
6,651 FT²
From
$2,860.00
Beds
4
Baths
4.5
Stories
2
Garage
3
Depth
74' 10"
Width
105'

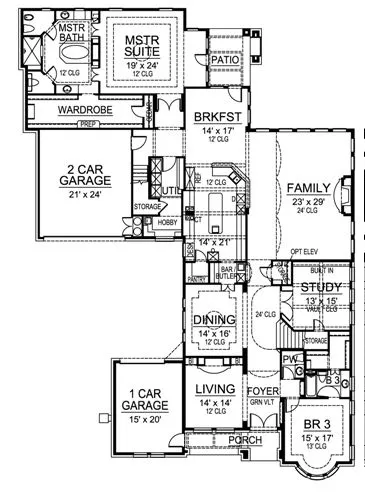

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

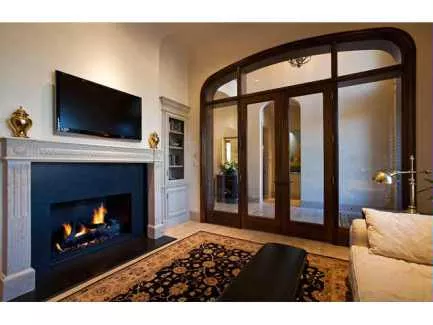

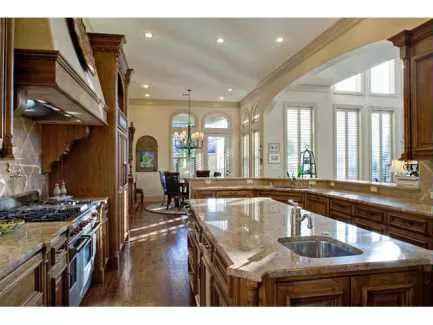

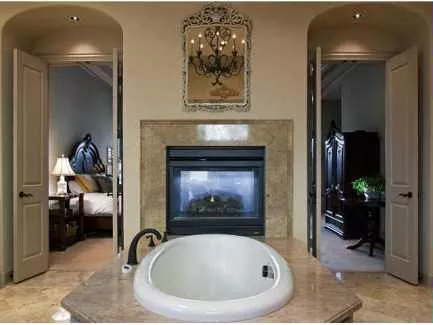

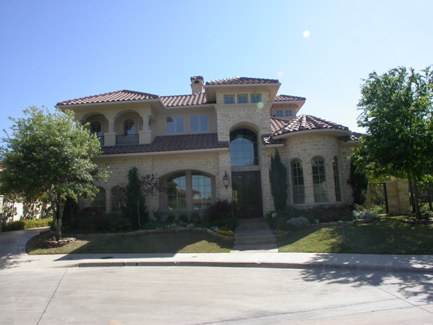

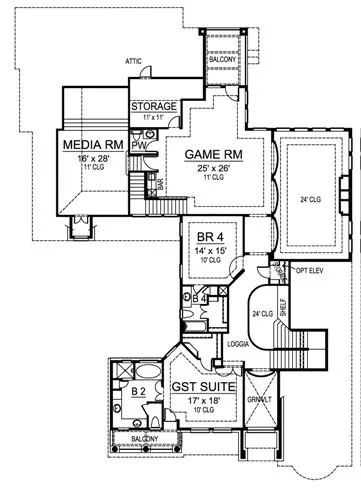

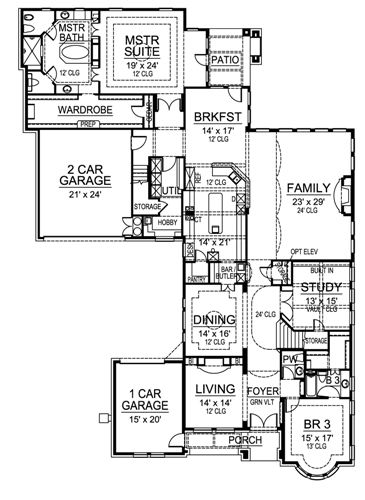

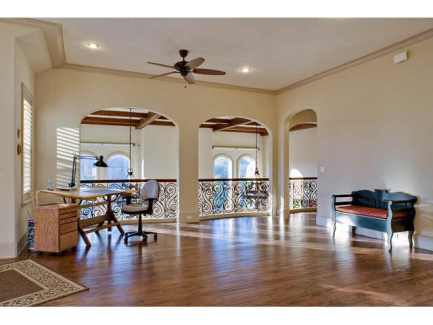

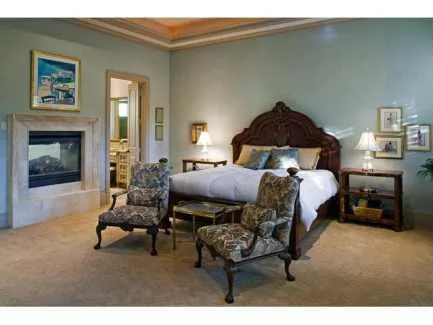

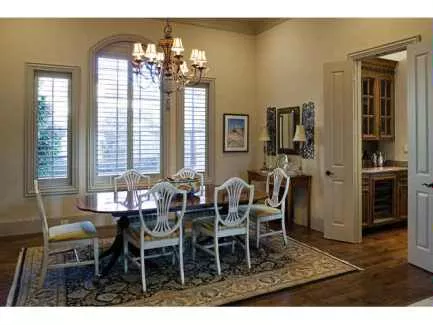

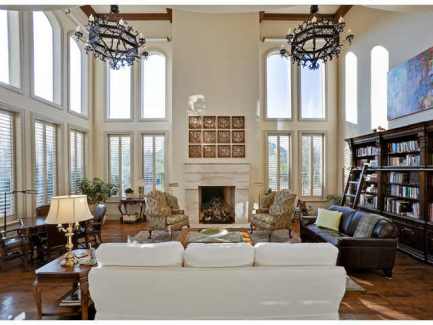

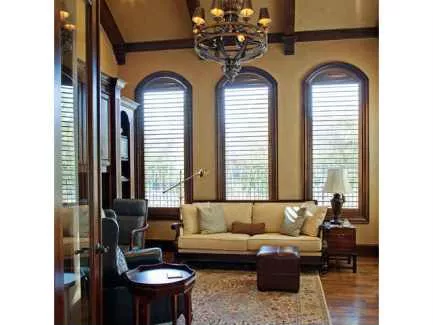

This magnificent Tuscan luxury mansion is stunning. Balconies, rotundas and varied ceiling treatments will draw you in. The two-story groin vault foyer opens to the living room with its warming fireplace. A spacious bedroom with walk-in closet and full bath provides a bay window for the sun to stream through. A quiet study with built-ins and a storage closet sits beyond the foyer and across from the formal dining room. The family gathering area consists of the kitchen, breakfast area and family room. The fireplace keeps this area cozy. Access to the patio can be achieved through the breakfast area. The gourmet kitchen provides a free-standing island for additional counter space. The breakfast bar can be shared with the family room and breakfast area. The luxurious master suite boasts a tray ceiling, and a lavish master bath with his and hers vanities, separate shower, tub, and large wardrobe with prep area and cedar closet. A utility room, hobby room, and twocar garage complete this level of this luxury mansion house plan. Upstairs, a bedroom with walk-in closet and full bath shares space with a guest suite with walk-in closet, large bath and private balcony. A game room, a media room, storage, attic, and balconies round out the upper floor. You'll enjoy the views from above to the main level below.


FEATURES & DETAILS

Kitchen features
Butler's Pantry
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry
Bedroom features
Double Vanity Sink
Guest Suite
Primary Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Foundation Options
Slab
Lot Options
Suited for corner lot
Suited for view lot
Additional features
Arches
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
In-law Suite
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Open Floor Plan
Rec Room
Storage Space
Vaulted Ceilings
Garage Location
Side
Garage Options
Attached
Front-entry
Rear-entry
7,993 Ft
2
Total Structure
6,651 Ft
2
Total Heated
4,200 Ft
2
1st Floor
2,451 Ft
2
2nd Floor
4
Bedrooms
4.5
Bathrooms
3
Garage
2
Stories
105' 0"
Width
74' 10"
Depth
33' 2"
Height
12' 0"
Main Floor Ceiling
11' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
7
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
896 Ft
2
Garage
55 Ft
2
Porch
120 Ft
2
Patio
Collections


Plan Package Options

 Select Plan Package
$2,965
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,965
$3,145
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$3,145
$4,455
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$4,455
 Need To Reverse Plan? (Optional)
$250
Readable Reverse

Reverse house plans with readable text and dimensions

$250
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
