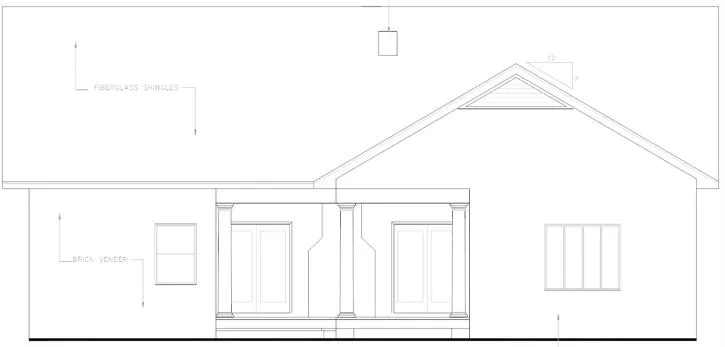

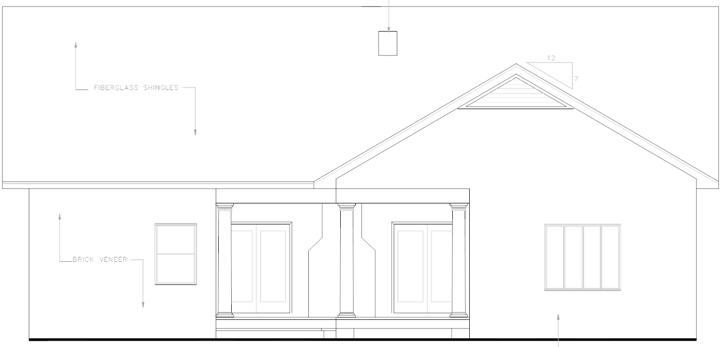

See all 2 photos (photographs may reflect modified homes)
© copyright by designer

Mouse over photo to pause

House Plan 5700: The Pleasant View

Grand Arched Entryway Accented with Columns.Large Open Great Room with Double French Doors and Gas Fireplace.Kitchen has a Unique Design with a Large Island for Cook Top and Snack Bar. Master Bedroom has a Large Walk In Closet and Access to the 10' Wide Rear Porch for Privacy.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
2,052
Beds
3
Baths
2.0
Stories
1
Garages
2
Width
50' 0"
Depth
68' 0"
1st Floor
2,052
Garage
528
Porch
750
Customize this Home Plan
Estimate Cost to Build
Free Cost Estimator >
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
Five Sets
$740
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $0
SEE DETAILED PLAN OPTIONS
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

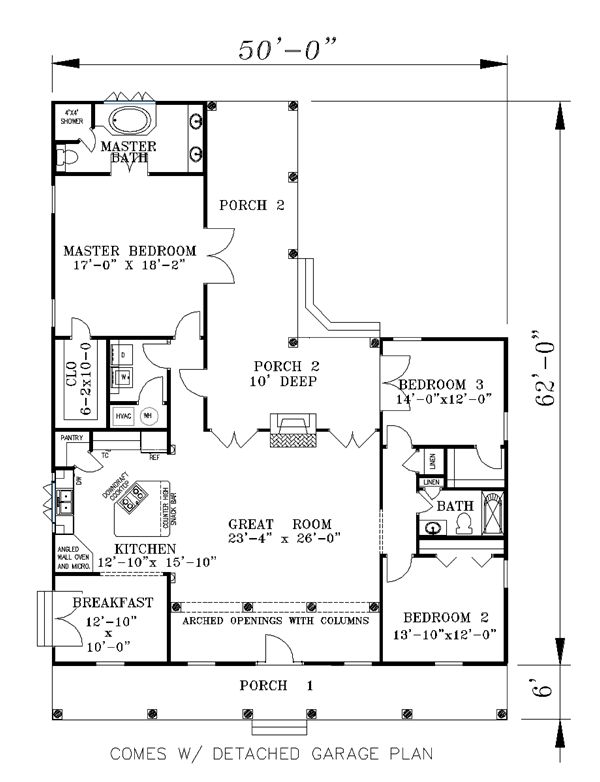

Floor Plan

Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.0
Garage: 2
Stories: 1
Exterior Style
Country
Southern
Traditional
Dimensions
Width: 50' 0"
Height: 23' 0"
Depth: 68' 0"
Heated Living Space
Total Sq. Ft: 2,052
1st Floor: 2,052
Unheated Living Space
Garage: 528
Porch: 750
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: 9
Framing Information
Framing: 2x4
Roof Framing: Truss
Bedroom Features
Master Bdrm Main Floor
Master Bdrm Main Floor
Separate Tub and Shower
Separate Tub and Shower
Split Bedrooms
Split Bedrooms
Walk-in Closet
Walk-in Closet
Kitchen Features
Kitchen Island
Kitchen Island
Nook / Breakfast Area
Nook / Breakfast Area
Peninsula / Eating Bar
Peninsula / Eating Bar
Walk-in Pantry
Walk-in Pantry
Additional Room Features
Fireplace
Fireplace
Great Room
Great Room
Laundry 1st Fl
Laundry 1st Fl
Open Floor Plan
Open Floor Plan
Garage Location
Front
Garage Features
Detached
Detached
Lot Features
Suited for corner lot
Suited for corner lot
Suited for narrow lot
Suited for narrow lot
Suited for view lot
Suited for view lot
Roof Pitch
Primary: 7
