House Plan 5070: The Pinehurst

You'll appreciate the fact that this one-story home plan offers grand living on a smaller scale. The living and dining rooms are separated by the foyer. Just beyond is the Great room, which boasts a large fireplace/media wall complete with shelves and niches.  Read more >

House Plan Details

Sq. Ft.
1,968
Beds
3
Baths
3.0
Stories
1
Garages
2
Width
60' 0"
Depth
48' 0"
1st Floor
1,968
Garage
475
Porch
48
Patio
244
Select Plan Package
FIVE SETS OF BONDPRINTS
$770
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

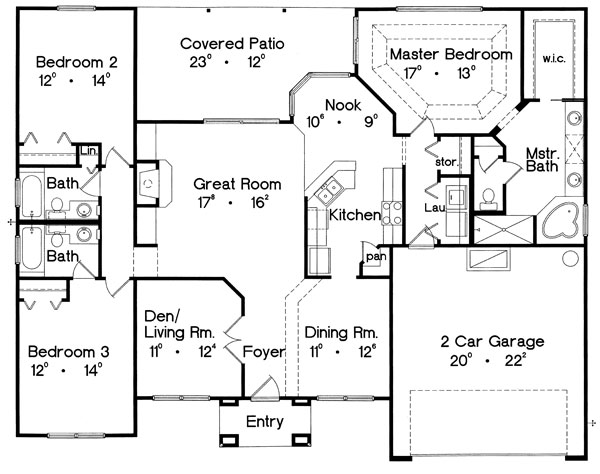

Floor Plan

Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
1,968
1st Floor SQ. FT.:
1,968
Bedrooms:
3
Bathrooms:
3.0
Garage:
2
Stories:
1
Main Ceiling Height:
9'
Upper Ceiling Height:
0'
Framing:
2x4
Roof Framing:
Truss
Roof Pitch:
Primary: 6:12
Width:
60' 0"
Height:
0' 0"
Depth:
48' 0"
Exterior Styles:
Beach
Contemporary
Mediterranean
Unheated Living Space:
Garage: 475
Porch: 48
Patio: 244
HOME FEATURES
Bedroom Features:
Kitchen Features:
Additonal Features:
Garage Features:
Attached
Garage Location:
Front
Lot Features:
