Sq Ft
1,783 FT²

Beds
3

Baths
2

Stories
1

Garage
2

Depth
45'

Width
60'

From
$950.00

Front Exterior

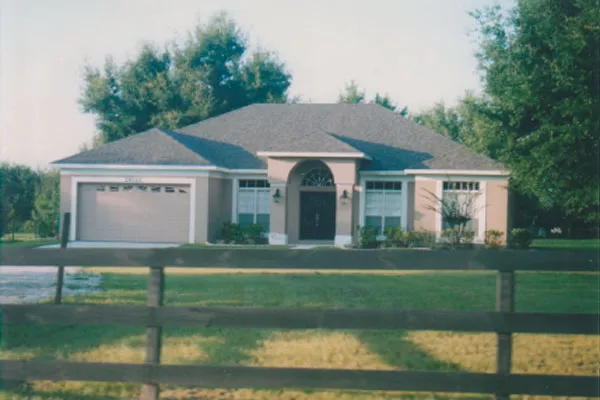

Front Photo View

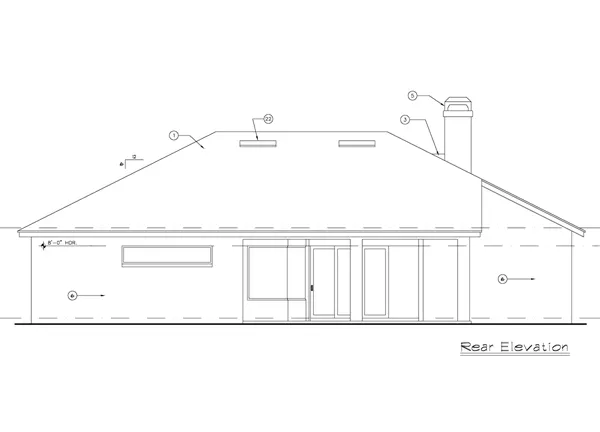

Rear Elevation

View All 3 Images | Photographs may reflect modified home

Sq Ft

1,783 FT²

From

$950.00

Beds

Baths

Stories

Garage

Depth

45'

Width

60'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

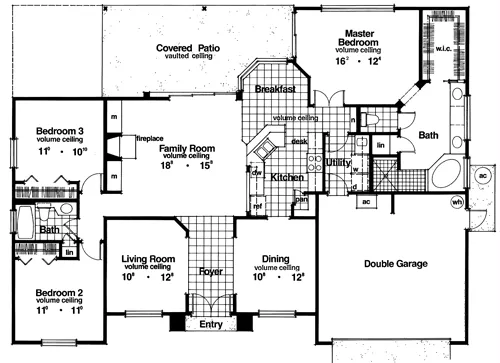

First Floor Plan

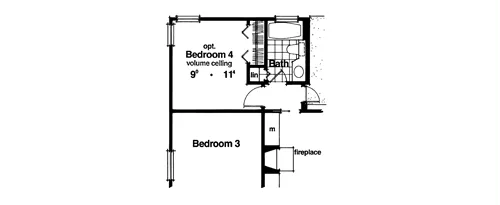

Optional Floor Plan

First Floor Plan

Optional Floor Plan

About This Plan

Traditional floor plan is maintained with split formal living and dining rooms for quiet entertainment. Grand foyer leads to the heart of this home-the main family living space, with large glass sliding doors for a breathtaking view of the pool. Mitered glass surrounds the breakfast nook, and walk-in pantry in the kitchen, brings functionality to a new level. Master suite is optimally located for use of space. The master bath has a step down "doorless" shower, huge vanity and an ample walk-in closet. This plan can easily be turned into a four bedroom home for the large family.

FEATURES & DETAILS

Kitchen features

Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet

Exterior features

Covered Rear Porch
Rear Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for view lot

Additional features

Arches
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Great Room
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry

1,783 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

60' 0"

Width

45' 0"

Depth

20' 6"

Height

10' 0"

Main Floor Ceiling

2x4

Framing

Truss

Roof Framing

6/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

409 Ft

Garage

14 Ft

Porch

265 Ft

Patio

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$600

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$600

$950

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$950

$1,150

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,150

$1,300

5 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,300

$1,900

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,900

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
