HOUSE PLANS
START AT $3,295
SQ FT
7,175
BEDS
4
BATHS
4
STORIES
2
CARS
4
WIDTH
127'
DEPTH
89'
© copyright by designer

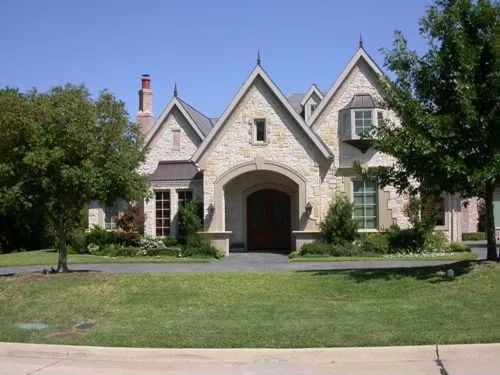

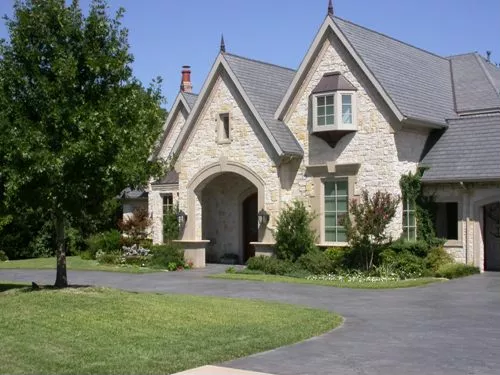

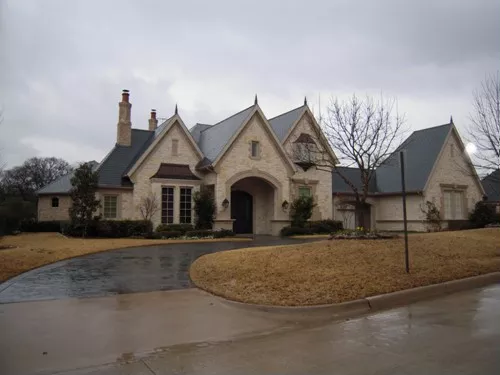

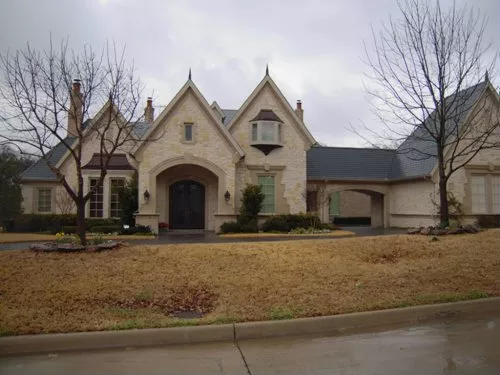

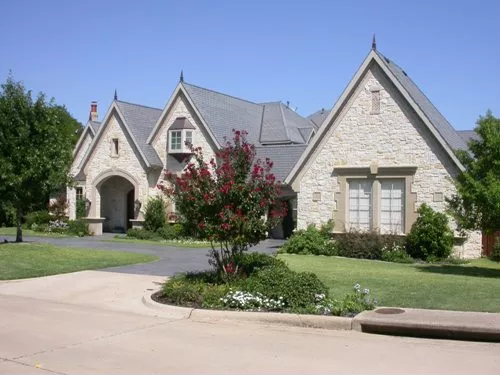

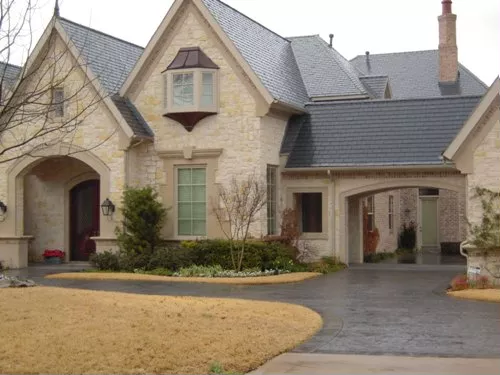

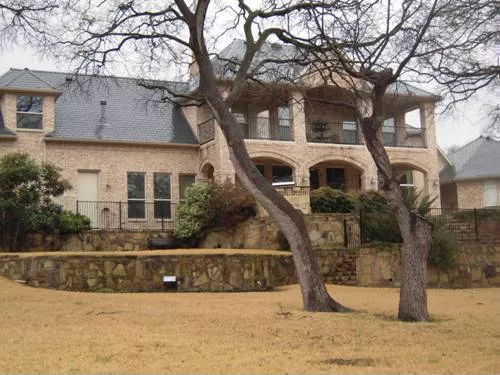

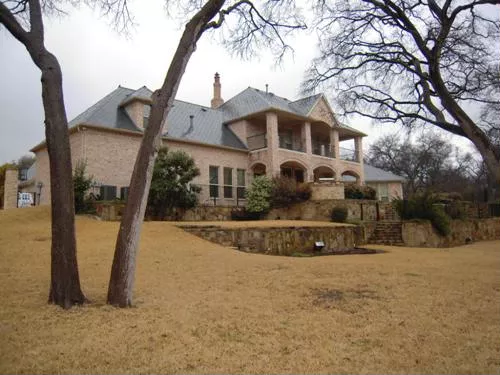

Photographs may reflect modified homes.   View all 14 photos
SQ FT
7,175
BEDS
4
BATHS
4
STORIES
2
CARS
4



House Plan 5165: SHINNECOCK

This European luxury mansion house plan brings your dreams to your door step. When you enter the two-story foyer, your eyes will immediately be drawn to the curved staircase leading to the second floor, and the bar is tucked quietly away under the staircase. The foyer is flanked by a study with warming fireplace and the formal dining room with direct access to the butlery, utility room, and kitchen for ease in serving.  Read more >

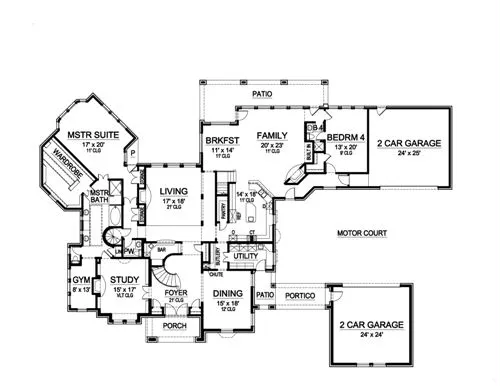

Click to Zoom In on Floor Plan

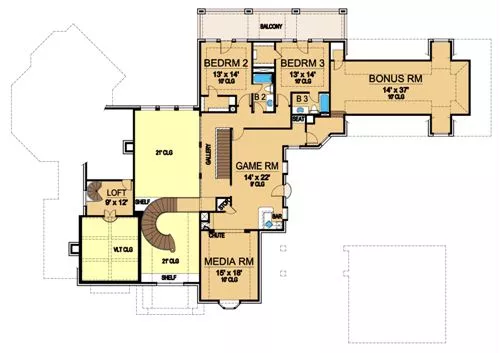

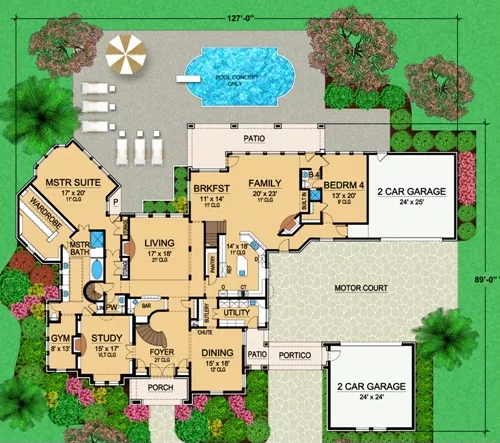

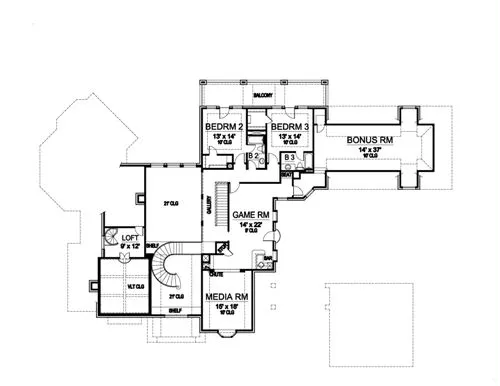

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$3,295

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$3,495

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$4,950
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$250
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Bedroom features
Master Bdrm Main Floor
Separate Tub and Shower
Additional features
Arches
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Storage Space
Garage Location
Side
Garage Features
Attached
Side-entry

Hide Plan Features
Details:
View All Plan Details
9,571 Ft
2
Total Structure:
7,175 Ft
2
Total Heated:
4,620 Ft
2
1st Floor:
2,555 Ft
2
2nd Floor:
4
Bedrooms:
4
Bathrooms:
4
Garage:
2
Stories:
127' 0"
Width:
89' 0"
Depth:
35' 0"
Height:
11
Main Floor Ceiling:
9
Upper Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
12
Primary Roof Pitch:
16
Secondary Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
1,038 Ft
2
Garage:
696 Ft
2
Bonus Room:
Exterior Styles
European
Traditional
Collections
Open Floor Plan

Hide Plan Details
