House Plan 4855: CHESTERFIELD

This six bedroom, six bath luxury mansion chateau home plan has the presence of the English castles of days gone by. The majestic coffered ceiling in the study and bayed sitting area offer comforting quiet time. The interesting groin vault gallery is open to the living and dining rooms.  Read more >

House Plan Details

Sq. Ft.
6,974
Beds
6
Baths
6.0
Stories
2
Garages
3
Width
86' 8"
Depth
92' 4"
Select Plan Package
Plan PDF Package
$2860
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

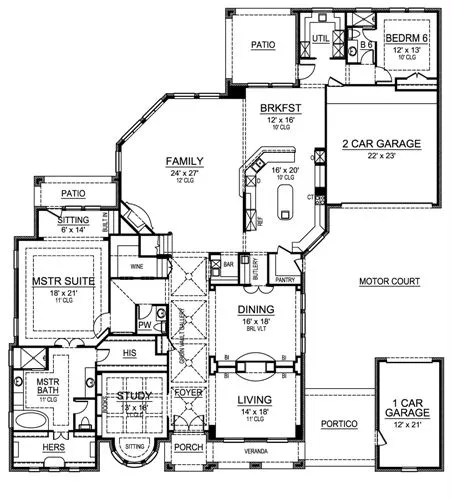

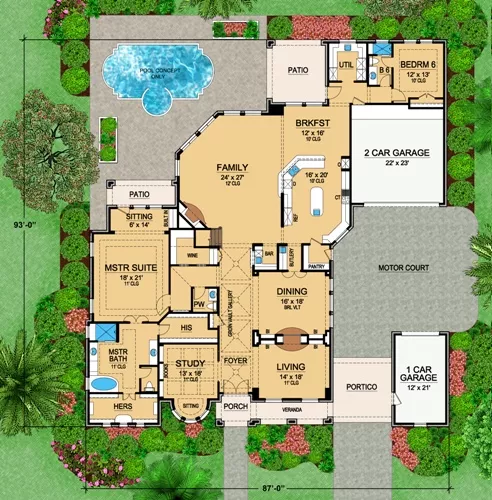

First Floor

First Floor
© copyright by designer
DETAILS
Total SQ. FT.:
6,974
1st Floor SQ. FT.:
4,283
2nd Floor SQ. FT.:
2,691
Bedrooms:
6
Bathrooms:
6.0
Garage:
3
Stories:
2
Main Ceiling Height:
11'
Upper Ceiling Height:
10'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Width:
86' 8"
Height:
39' 3"
Depth:
92' 4"
Exterior Styles:
European
Traditional
Unheated Living Space:
Garage: 310
Porch: 165
Deck: 39
Patio: 308
HOME FEATURES
Bedroom Features:
Double Vanity Sink
Guest Suite
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Kitchen Features:
Butler's Pantry
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Additonal Features:
2 Story Volume
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Open Floor Plan
Vaulted Ceilings
Garage Features:
Attached
Garage Location:
Side
Lot Features:
