Recently Viewed Plans | Advanced Plan Search

Sq Ft
1,488 FT²

Beds
3

Baths
2

Stories
2

Garage
1

Depth
58'

Width
53'

From
$2,420.00

Front

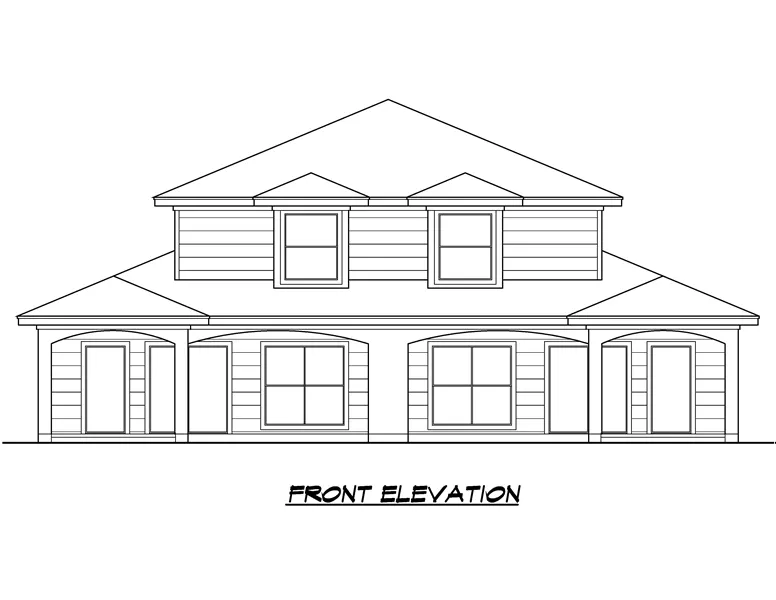

Front Elevation

Left Elevation

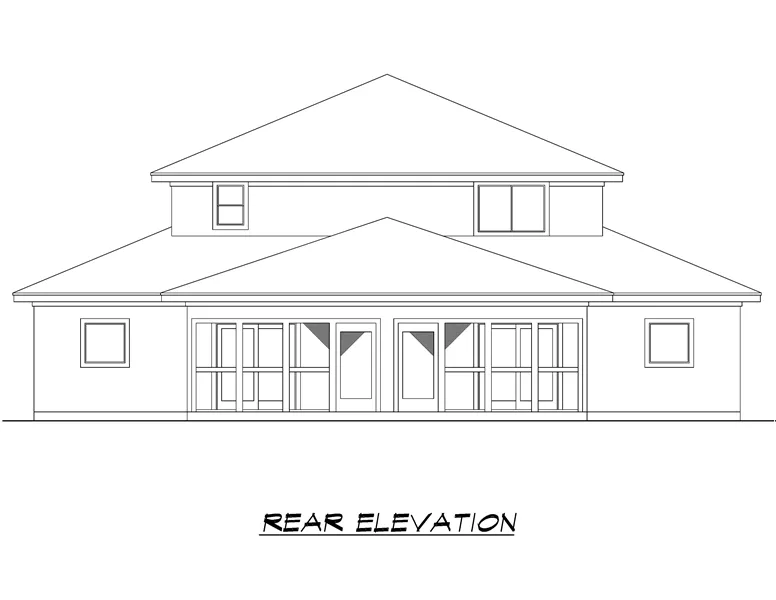

Rear Elevation

Right Elevation

View All 5 Images | Photographs may reflect modified home

Sq Ft

1,488 FT²

From

$2,420.00

Beds

Baths

Stories

Garage

Depth

58'

Width

53'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

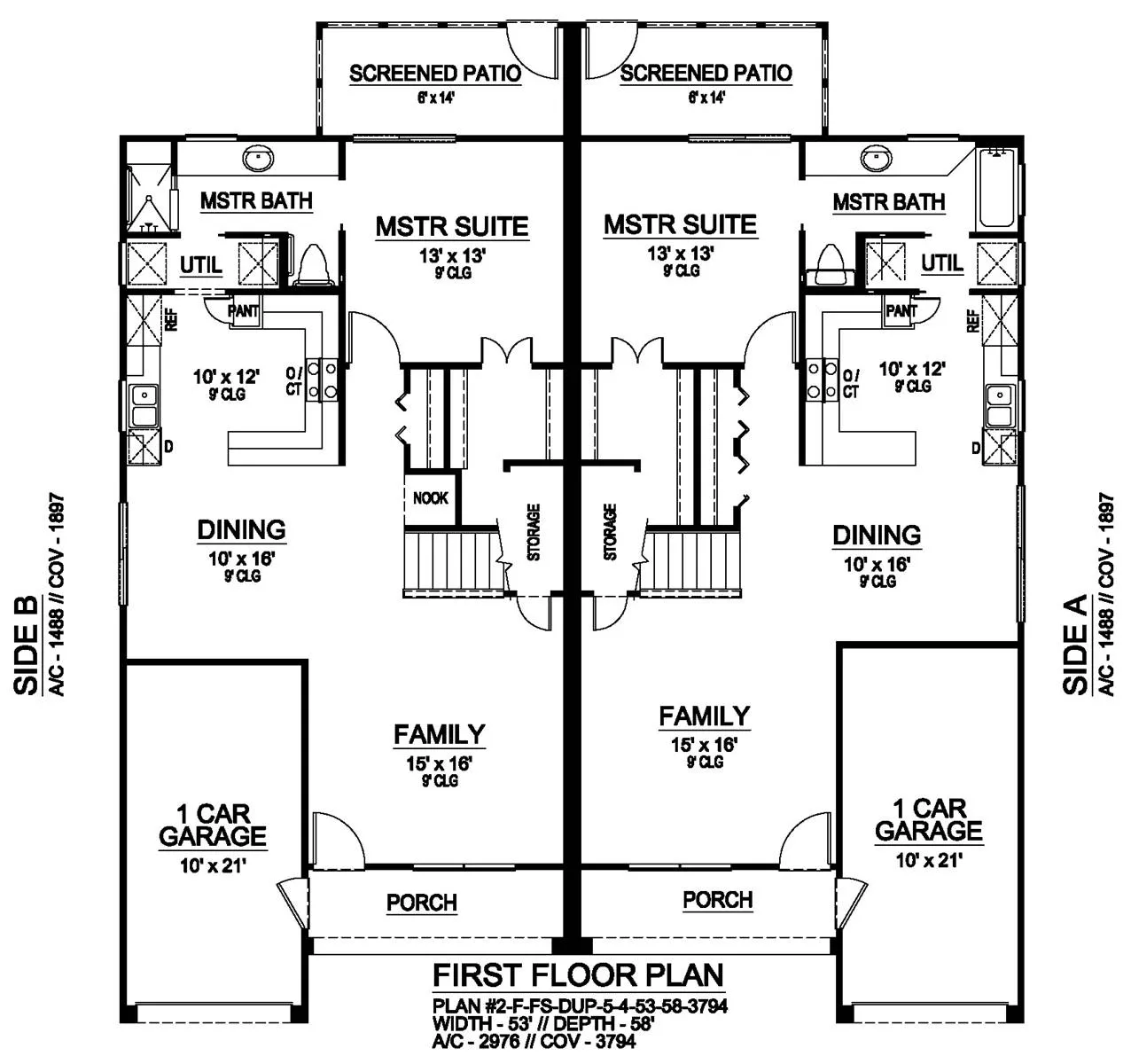

First Floor

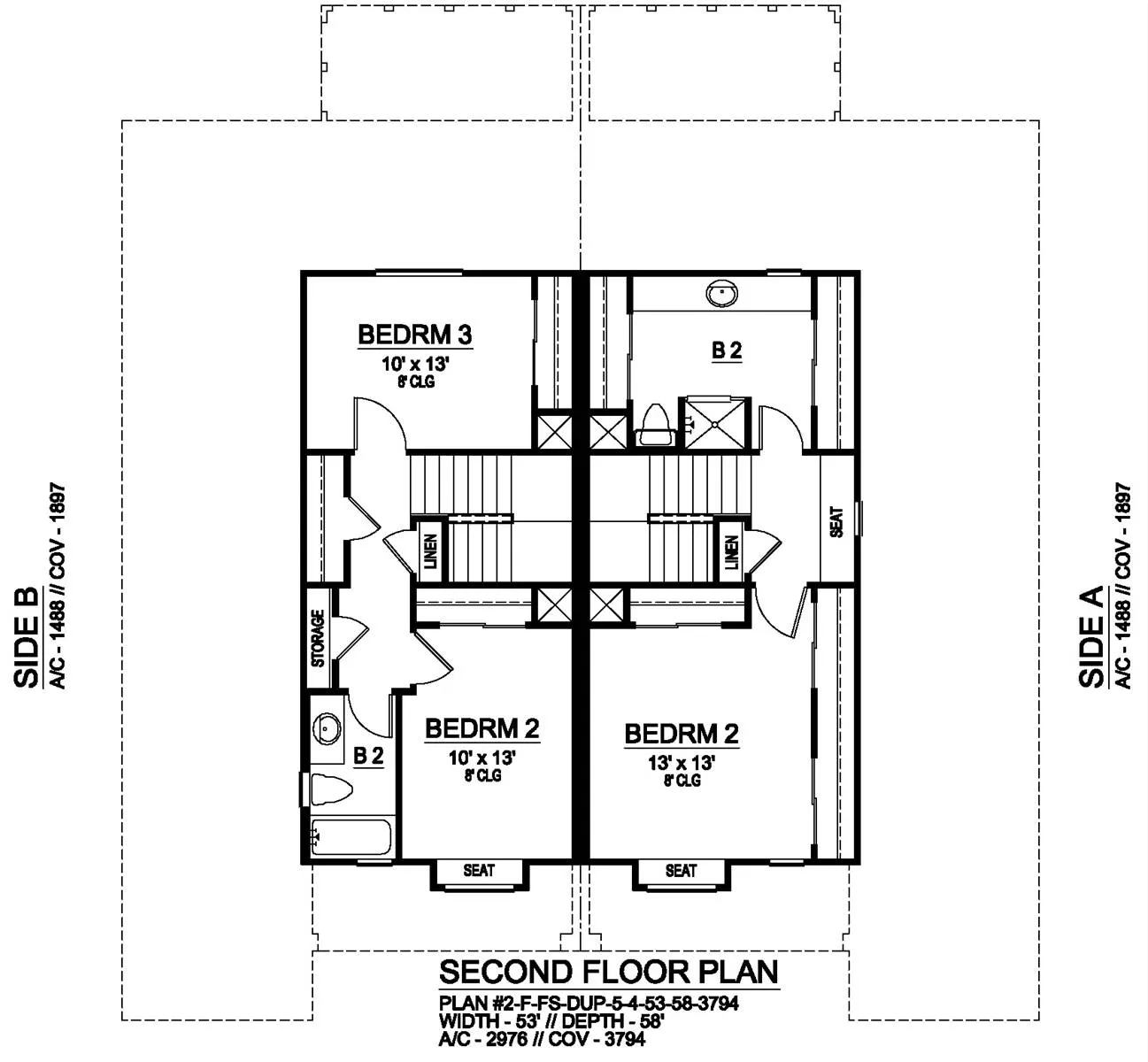

Second Floor

First Floor

Second Floor

About This Plan

This traditional duplex, multi-family unit offers 1,488 sq. ft of mirror living with a one-car garage on each side. The family room opens into the dining room. Adjacent to dining space, the kitchen offers ease in serving family and guest. A breakfast bar offers a great gathering spot and counter space for any chef to work with at any time. The master suite has a private master bath and screened-in patio, with access to the utility room, that acts as a walk through into the kitchen. Upstairs, the right side offers a large bedroom with window seat and full bath, while its counterpart offers two bedrooms with walk-in closets and a full bath.

FEATURES & DETAILS

Bedroom features

Primary Bdrm Main Floor
Walk-in Closet

Exterior features

Covered Rear Porch
Front Porch
Screened Porch/Sunroom

Foundation Options

Slab

Additional features

Dining Room
Family Room
Laundry 1st Fl
Open Floor Plan

Garage Location

Side

Garage Options

Attached
Front-entry

2,976 Ft

Total Structure

1,488 Ft

Unit Heated

1,000 Ft

1st Floor

488 Ft

2nd Floor

Bedrooms

Bathrooms

Garage

Stories

53' 0"

Width

58' 0"

Depth

26' 0"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

Primary Roof Pitch

Secondary Roof Pitch

Duplex

Dwelling Number

Unheated Living Space

210 Ft

Garage

Exterior Styles

European

Mediterranean

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$2,180

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,180

$2,360

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,360

$3,270

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,270

Need To Reverse Plan? (Optional)

$200

Readable Reverse

Reverse house plans with readable text and dimensions

$200

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
