Phelps 3 Bedroom Craftsman Style Duplex House, Plan 5582

Sq Ft
1,531 FT²
Bed
3
Bath
2.5
Stories
2
Garage
1
Depth
57'
Width
40'
On Sale
$1,919.30
$2,258.00
© copyright by designer
View All 2 Images | Photographs may reflect modified home
Sq Ft
1,531 FT²
From
$1,919.30
Bed
3
Bath
2.5
Stories
2
Garage
1
Depth
57'
Width
40'

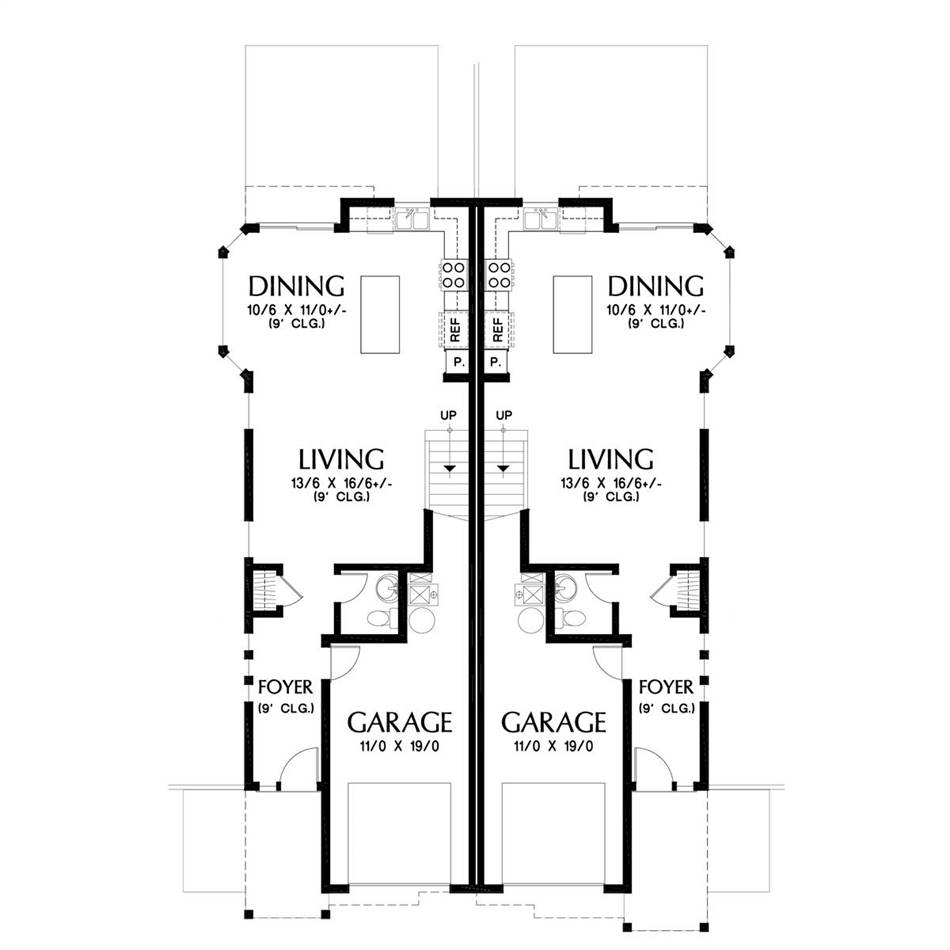

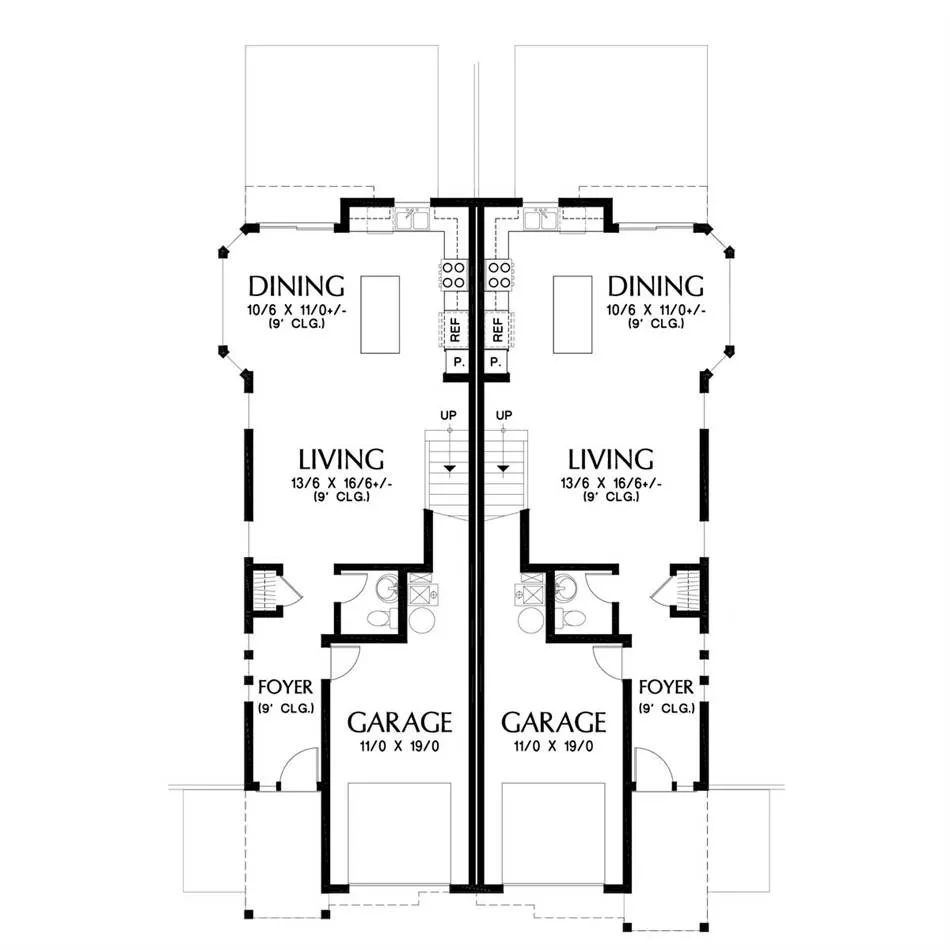

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

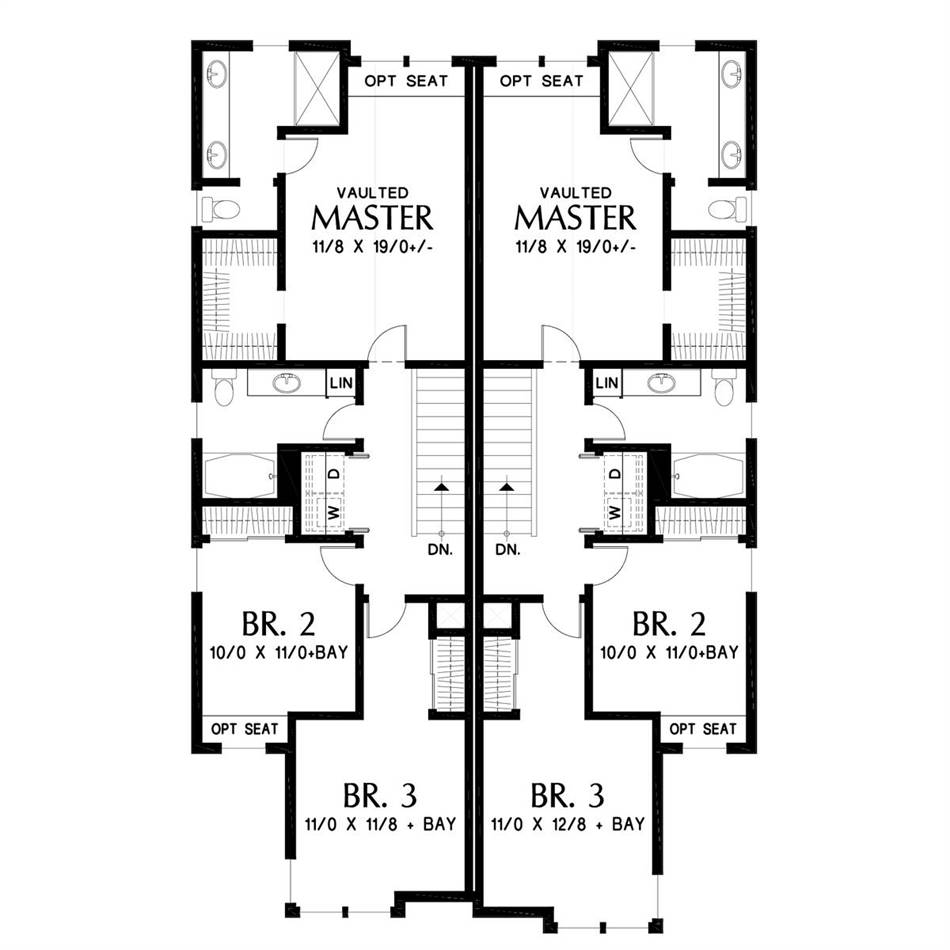

This duplex features an amazing amount of Craftsman style charm, in an affordable and efficient package. Both sides of this two-story design features 3 bedrooms and 2.5 bathrooms, as well as a garage and private outdoor living space. The first level begins with the foyer which leads past a half bath and in to the living room and its open concept kitchen and dining room. The second story is home to the sleeping quarters, finding the master suite and its private bath and walk-in closet providing you with ample space to unwind and relax. Two more bedrooms share a hallway bath and are a great space for growing kids or guests to enjoy their own private space.


FEATURES & DETAILS

Kitchen features
Kitchen Island
Bedroom features
Double Vanity Sink
Primary Bdrm Upstairs
Walk-in Closet
Foundation Options
Basement
Crawlspace
Slab
Additional features
Dining Room
Family Room
Foyer
Laundry 1st Fl
Open Floor Plan
Garage Location
Front
Garage Options
Front-entry
3,074 Ft
2
Total Structure
1,531 Ft
2
Unit Heated
893 Ft
2
1st Floor
638 Ft
2
2nd Floor
3
Bedrooms
2.5
Bathrooms
1
Garage
2
Stories
40' 0"
Width
57' 0"
Depth
25' 0"
Height
9' 0"
Main Floor Ceiling
8' 0"
Upper Floor Ceiling
2x6
Framing
Truss
Roof Framing
8/12
Primary Roof Pitch
Duplex
Dwelling Number

Unheated Living Space
522 Ft
2
Garage


Plan Package Options

 Select Plan Package
$2,258
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,258
$2,458
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,458
$2,508
5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,508
$4,516
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$4,516
 Need To Reverse Plan? (Optional)
$225
Readable Reverse

Reverse house plans with readable text and dimensions

$225
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
