Sq Ft
4,461 FT²

Beds
3

Baths
3.5

Stories
2

Garage
3

Depth
81'

Width
89'

From
$1,515.00

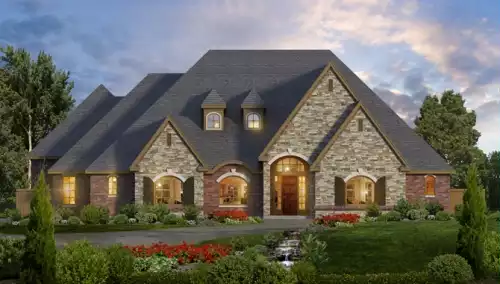

Color Rendering

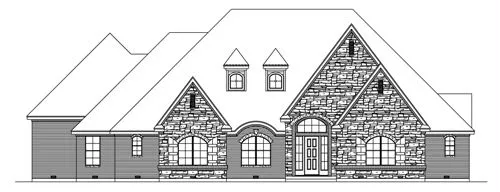

Front Elevation

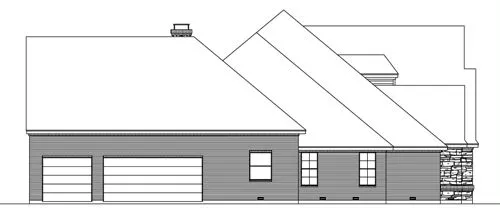

Left Elevation

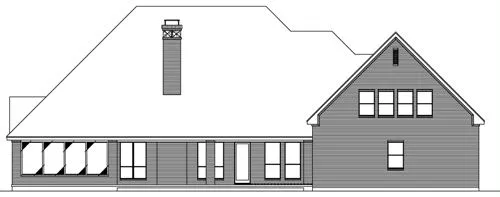

Rear Elevation

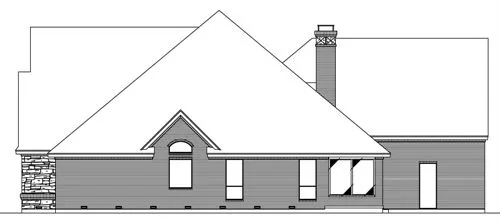

Right Elevation

View All 5 Images | Photographs may reflect modified home

Sq Ft

4,461 FT²

From

$1,515.00

Beds

Baths

3.5

Stories

Garage

Depth

81'

Width

89'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

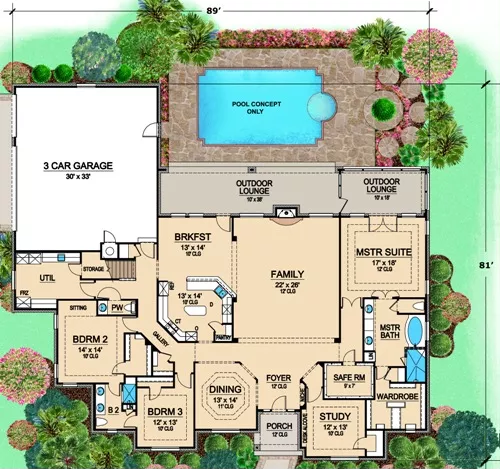

First Floor

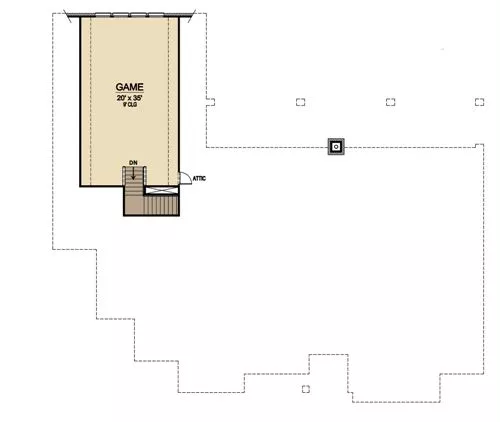

Second Floor

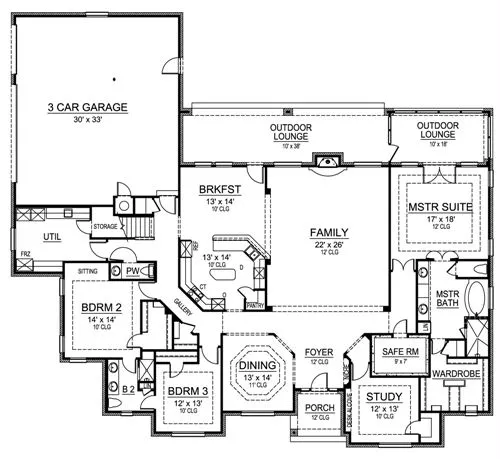

First Floor 2

Second Floor 2

About This Plan

This one-story luxury mansion home plan boasts varied ceiling treatments and 12-ft. ceilings to add volume to your living spaces. The foyer is flanked by the formal dining room and quiet study. Beyond the gallery is the gourmet kitchen with pantry, providing the dining room ease in serving your family and guests. In the front left corner of this luxury house plan are the two family bedrooms with a shared bath and tray ceilings. A utility room shares space with the powder room between the family bedrooms and the three-car garage. Centrally located is the family living space, consisting of the family room, breakfast area and kitchen, separated only by the breakfast bar. The kitchen offers a free-standing center island, perfect for any chef, and a sunny breakfast area with access to an outdoor lounge. Large windows in the family room flank a warming fireplace and offer a view of the outdoor lounge and concept pool. A safe room is meant for weather protection. To the right of the family room is the luxurious master suite, with French doors leading to its private outdoor lounge. The posh bath boasts his and hers sinks, separate shower and garden tub. A bonus game room above the garage can be anything you wish. How about an art studio?

FEATURES & DETAILS

Kitchen features

Country Kitchen
Nook / Breakfast Area

Bedroom features

Primary Bdrm Main Floor
Separate Tub and Shower

Exterior features

Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch

Foundation Options

Slab

Additional features

Arches
Dining Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Open Floor Plan

Garage Location

Rear

Garage Options

Attached
Side-entry

6,210 Ft

Total Structure

4,461 Ft

Total Heated

3,734 Ft

1st Floor

727 Ft

2nd Floor

Bedrooms

3.5

Bathrooms

Garage

Stories

89' 0"

Width

81' 0"

Depth

35' 0"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

12/12

Primary Roof Pitch

12:10

Secondary Roof Pitch

12:16

Dormer Roof Pitch

Single

Dwelling Number

Unheated Living Space

1,109 Ft

Garage

68 Ft

Porch

572 Ft

Patio

Exterior Styles

European

Traditional

Collections
