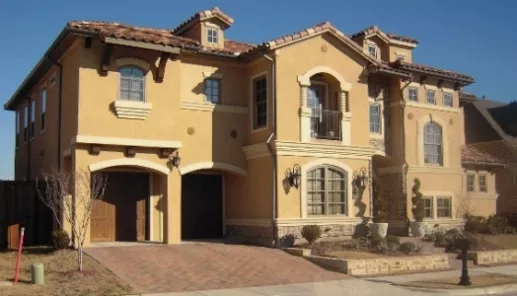

Front View
Front 4
Front 5

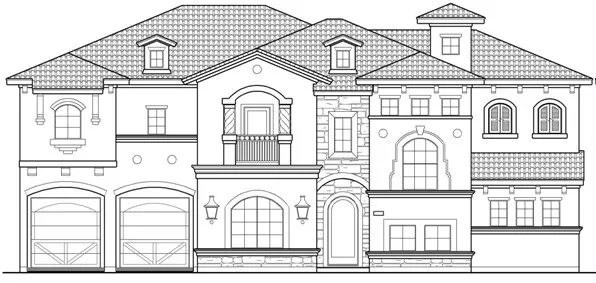

Front Elevation

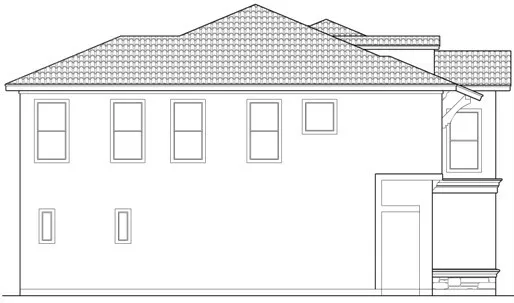

Left Elevation

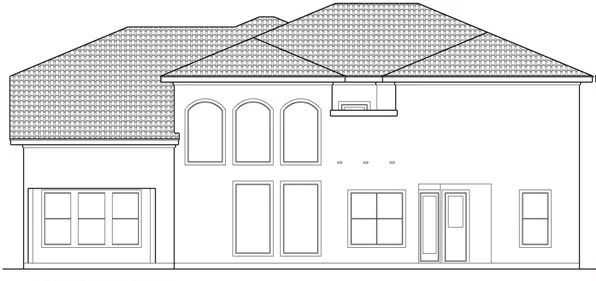

Rear Elevation

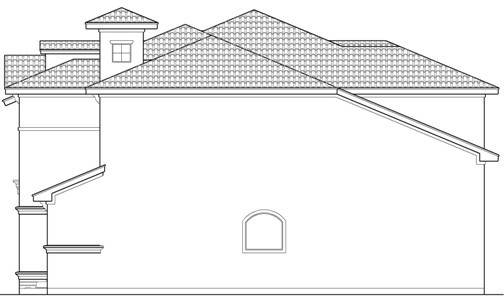

Right Elevation
First Floor

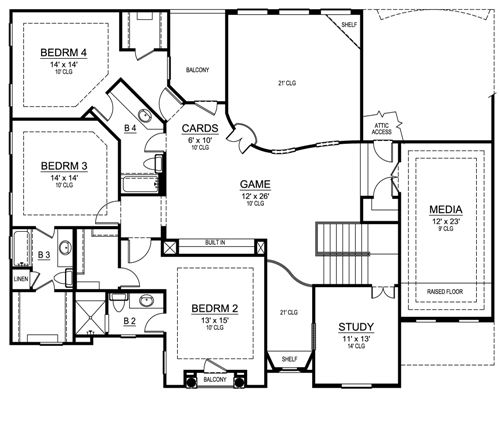

Second Floor
© copyright by designer
Mouse over photo to pause

House Plan 4535: MANGROVE BAY

As you enter the foyer of this luxury home, beyond the dining room and the sunken grotto with its fireplace and storage area lie the open entertaining areas. The kitchen is amazingly spacious, and includes an angled bar and a pantry.  Read more >

House Plan Details

Sq. Ft.
4,427
Beds
4
Baths
4.5
Stories
2
Garages
2
Width
64' 0"
Depth
50' 0"
Select Plan Package
Plan PDF Package
$1515
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

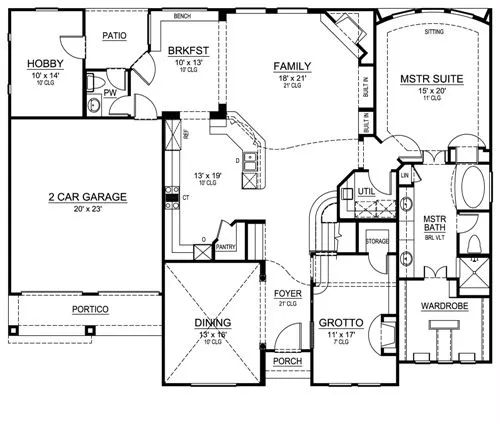

First Floor
