Search Plans


Sq Ft
4,827 FT²

Beds
5

Baths
5

Stories
2

Garage
3

Depth
74' 8"

Width
60'
From
$1,650.00
© copyright by designer
View All 6 Images | Photographs may reflect modified home
Sq Ft
4,827 FT²
From
$1,650.00
Beds
5
Baths
5
Stories
2
Garage
3
Depth
74' 8"
Width
60'

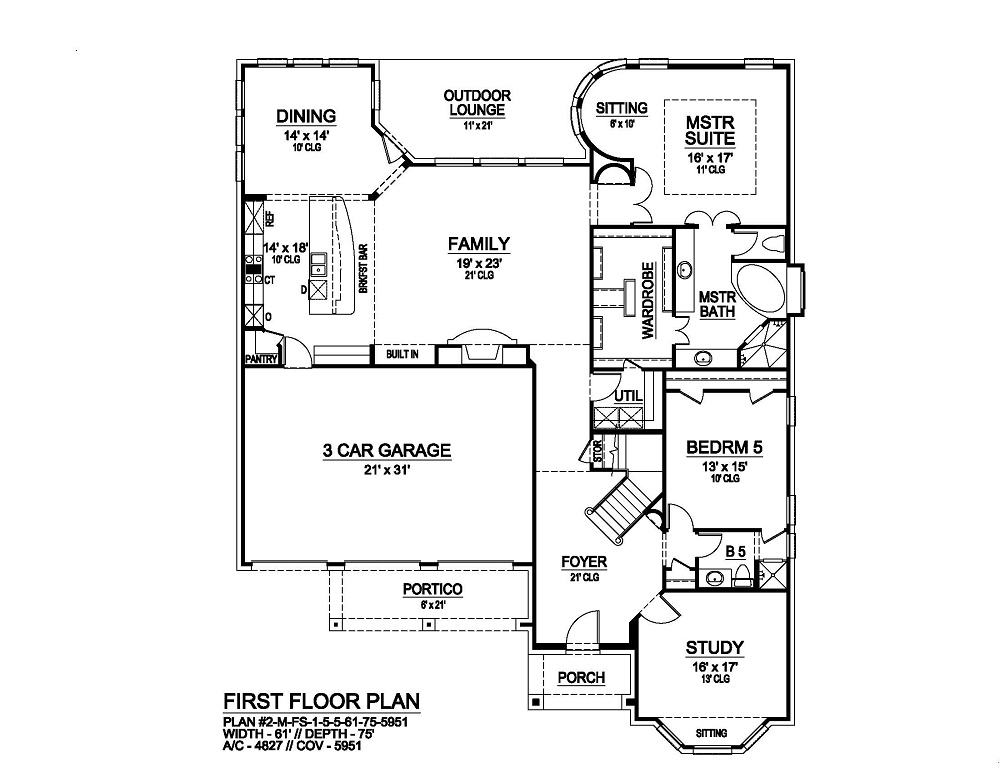

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

Come home to this lovely luxury house plan and enjoy all the amenities. The large two-story foyer offers access to a quiet study with bayed window sitting area and a family bedroom with walk-in closet and full bath. The family room, dining room, and kitchen are open to one another, divided only by the breakfast bar in the kitchen. Built-ins and a warming fireplace in the family room help to keep this family gathering area cozy. The large bank of windows allow for sun to stream through. The luxurious master suite boasts a bayed window sitting area, trey ceiling, plenty of windows, a lavish bath with separate shower, corner garden tub and large wardrobe. A three-car garage completes the main level of this luxury house plan. Upstairs, three family bedrooms with walk-in closets and full baths share space with the game and media rooms. There is plenty of storage in this luxury house plan. See Richmond Ridge and Richmond Valley for alternate elevations.


FEATURES & DETAILS

Kitchen features
Country Kitchen
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Foundation Options
Slab
Additional features
2 Story Volume
Arches
Dining Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Options
Attached
Front-entry
5,951 Ft
2
Total Structure
4,827 Ft
2
Total Heated
2,804 Ft
2
1st Floor
2,023 Ft
2
2nd Floor
5
Bedrooms
5
Bathrooms
3
Garage
2
Stories
60' 0"
Width
74' 8"
Depth
35' 7"
Height
11' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
Single
Dwelling Number

Unheated Living Space
695 Ft
2
Garage
66 Ft
2
Porch
139 Ft
2
Deck
224 Ft
2
Patio


Plan Package Options

 Select Plan Package
$1,485
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,485
$1,665
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,665
$2,230
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,230
 Need To Reverse Plan? (Optional)
$175
Readable Reverse

Reverse house plans with readable text and dimensions

$175
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
