Sq Ft
4,850 FT²
Bed
5
Bath
4
Stories
2
Garage
3
Depth
99'
Width
69'
On Sale
$1,402.50
$1,650.00
© copyright by designer
View All 48 Images | Photographs may reflect modified home
Sq Ft
4,850 FT²
From
$1,402.50
Bed
5
Bath
4
Stories
2
Garage
3
Depth
99'
Width
69'

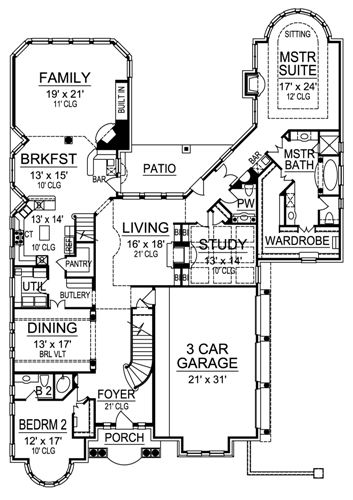

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

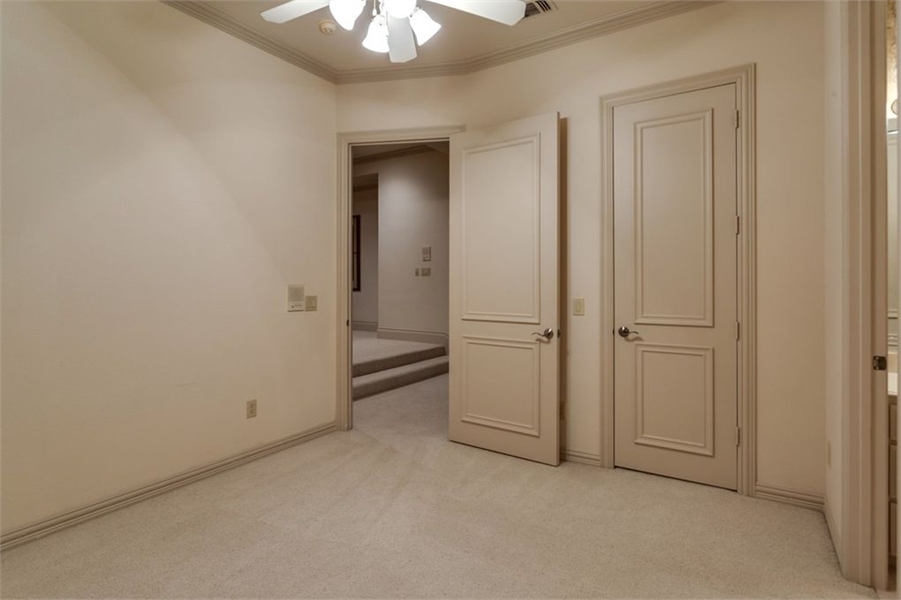

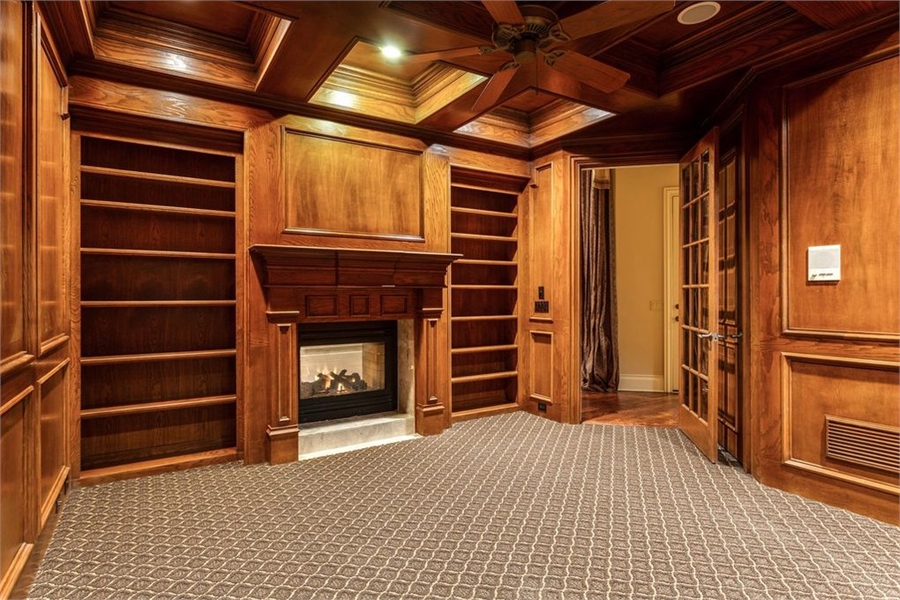

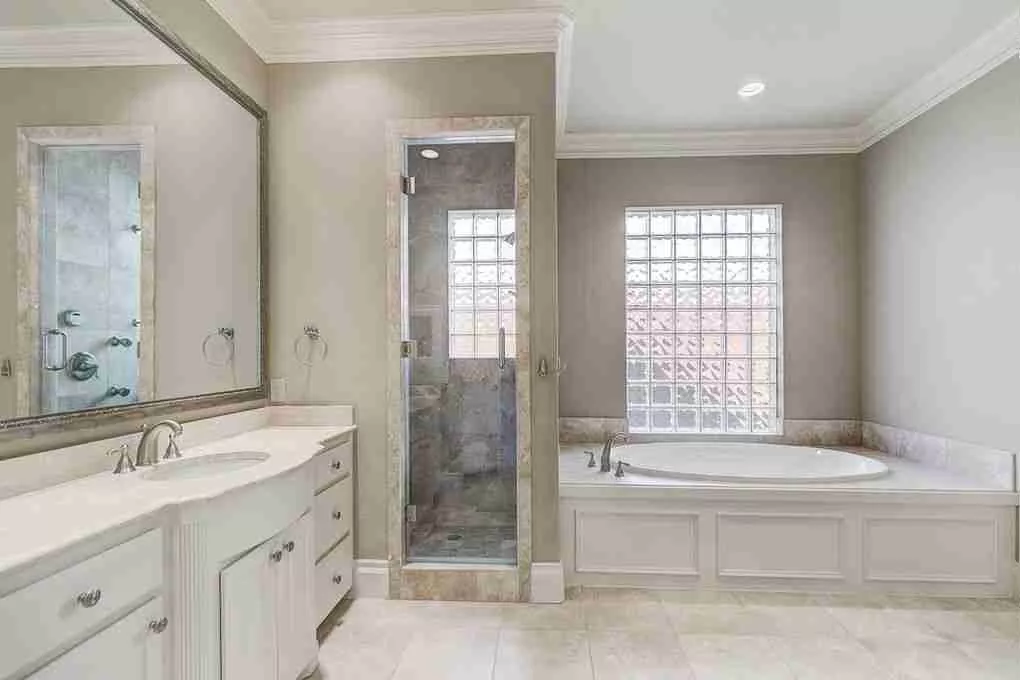

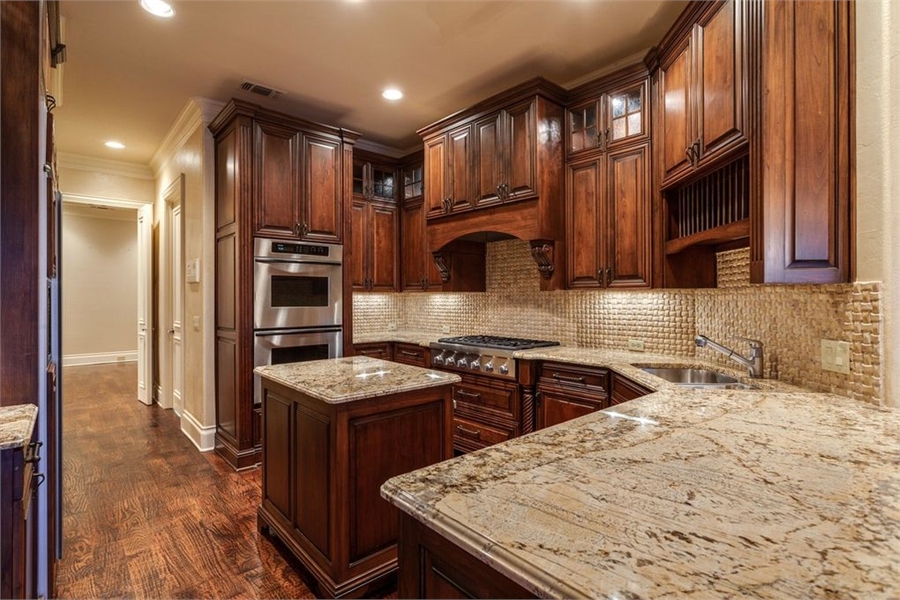

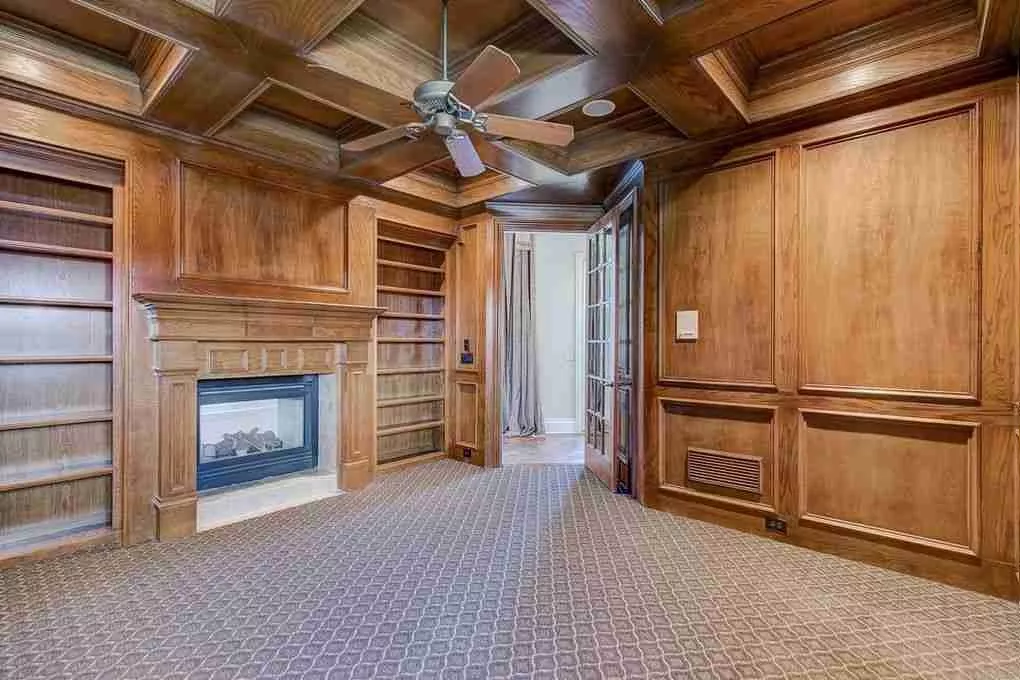

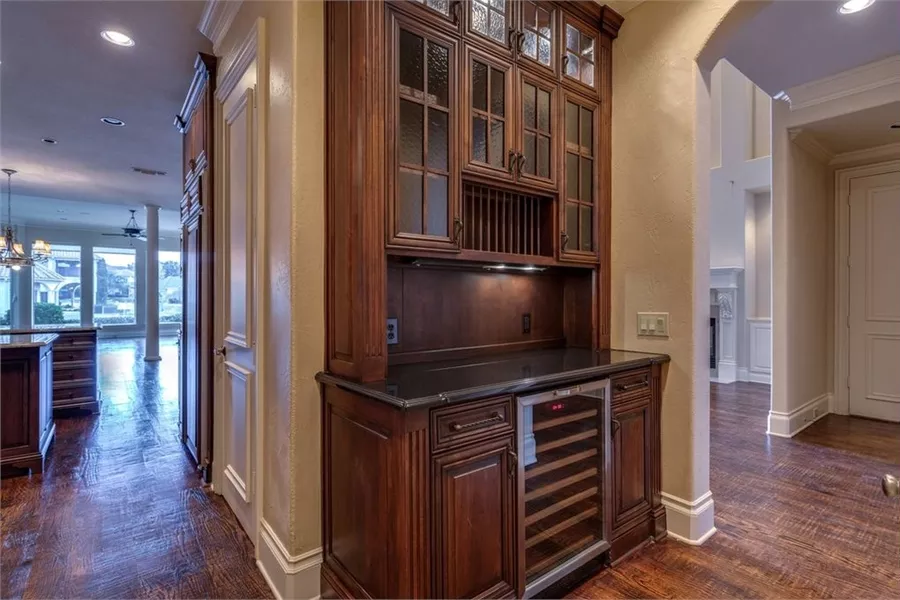

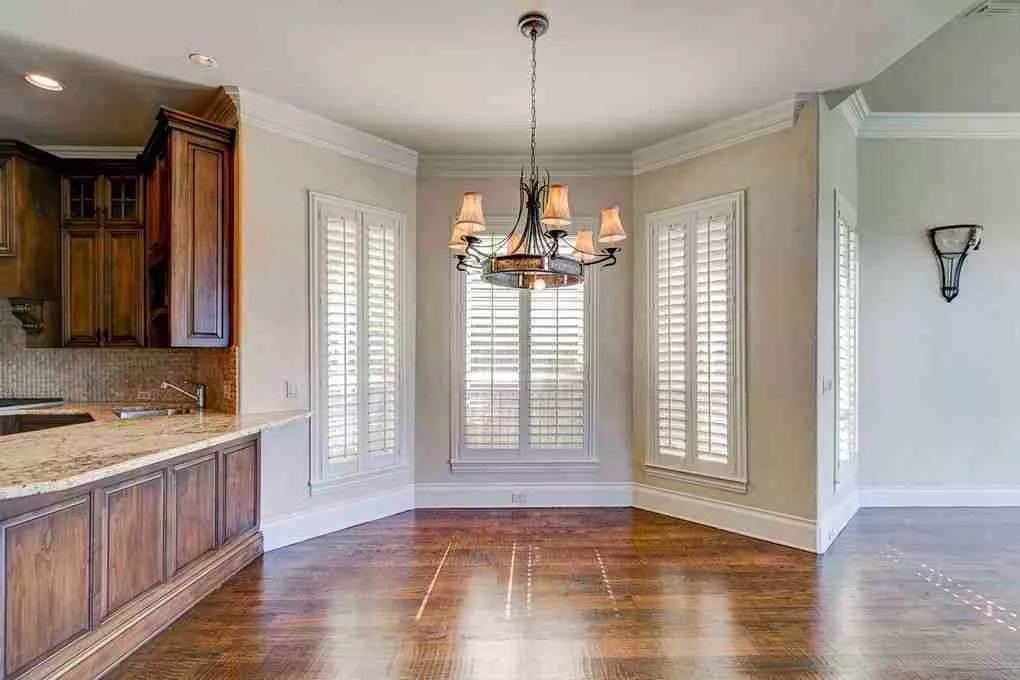

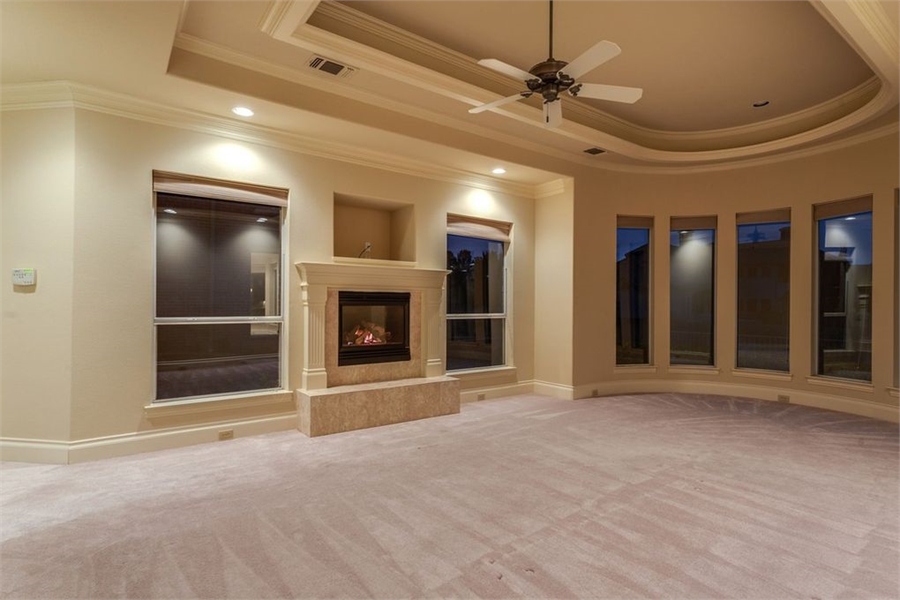

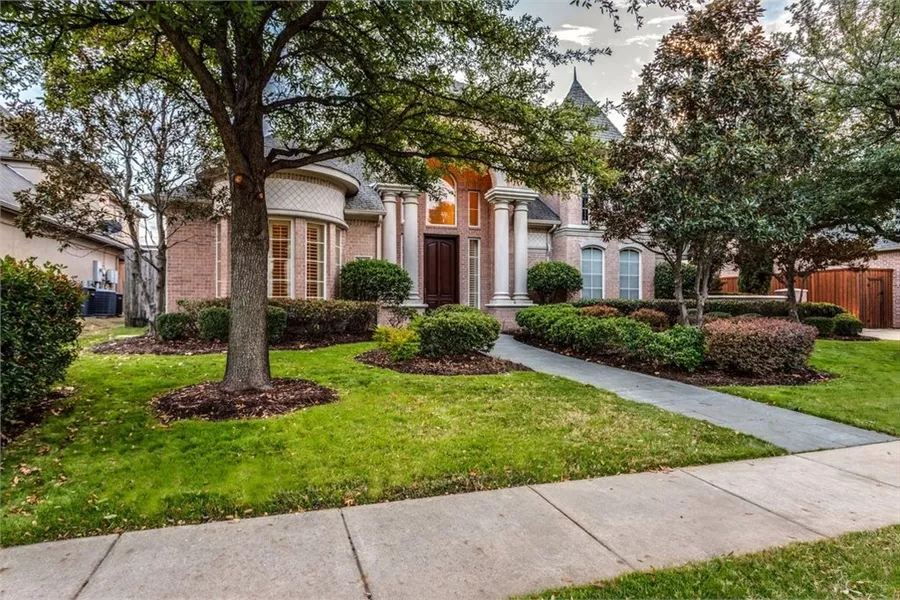

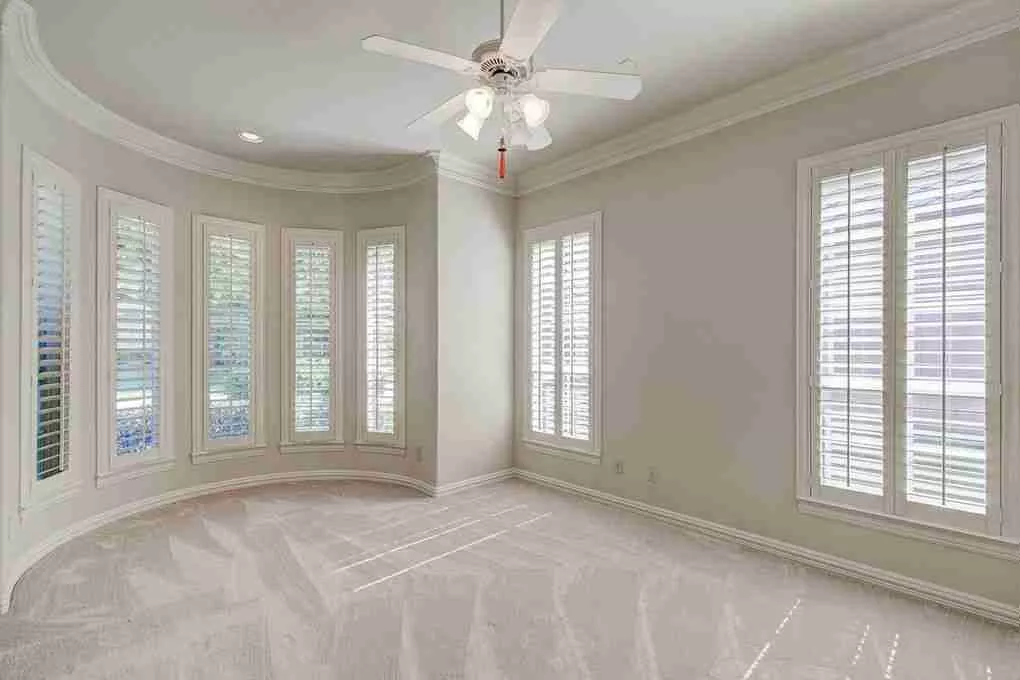

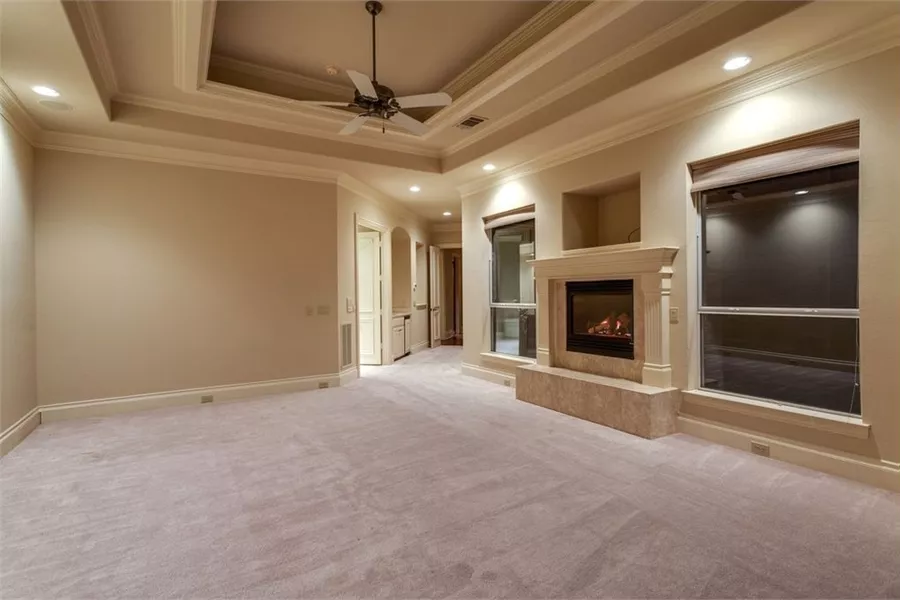

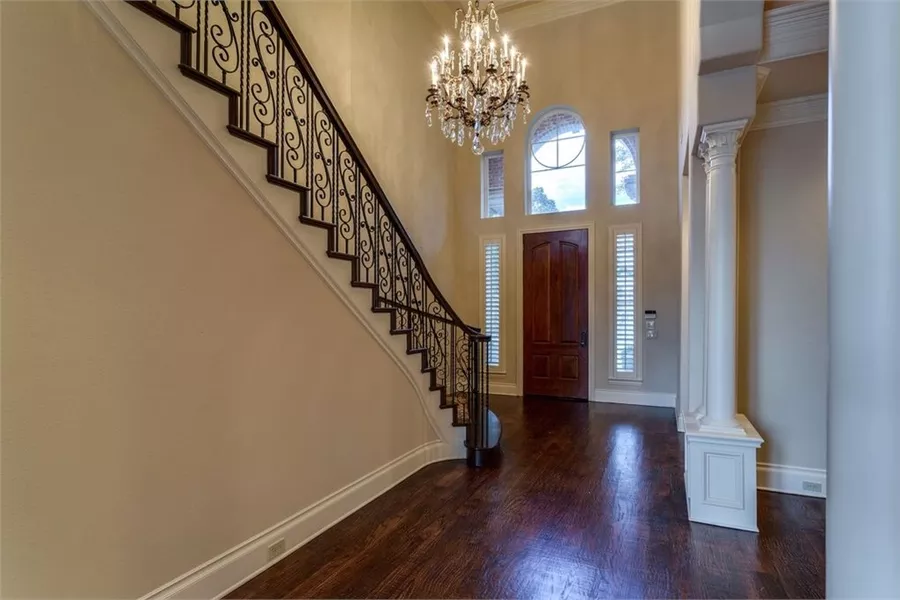

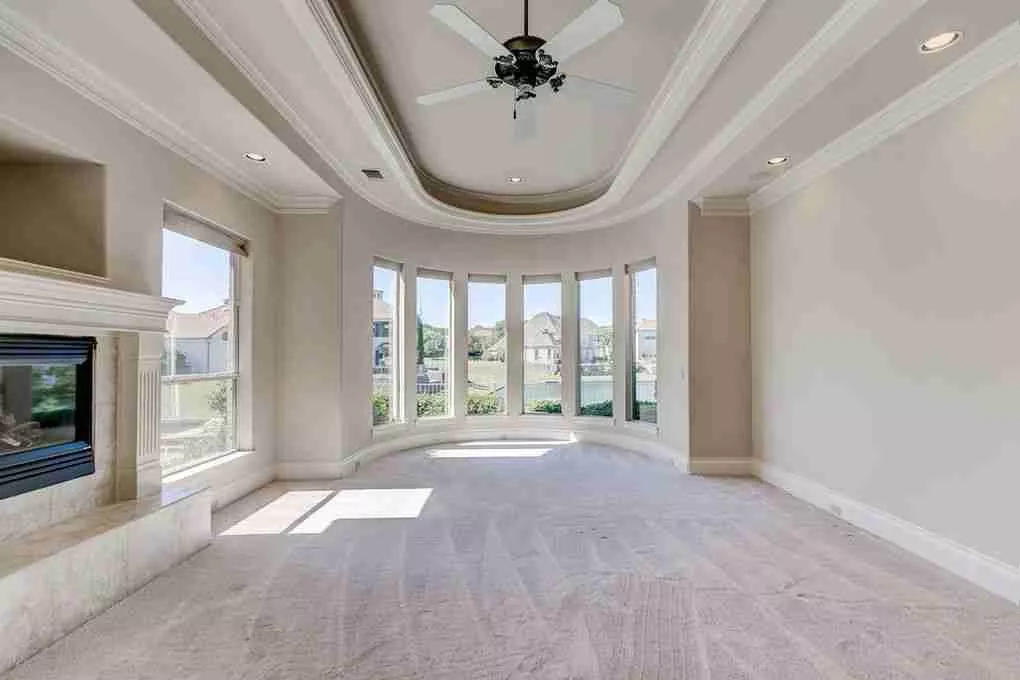

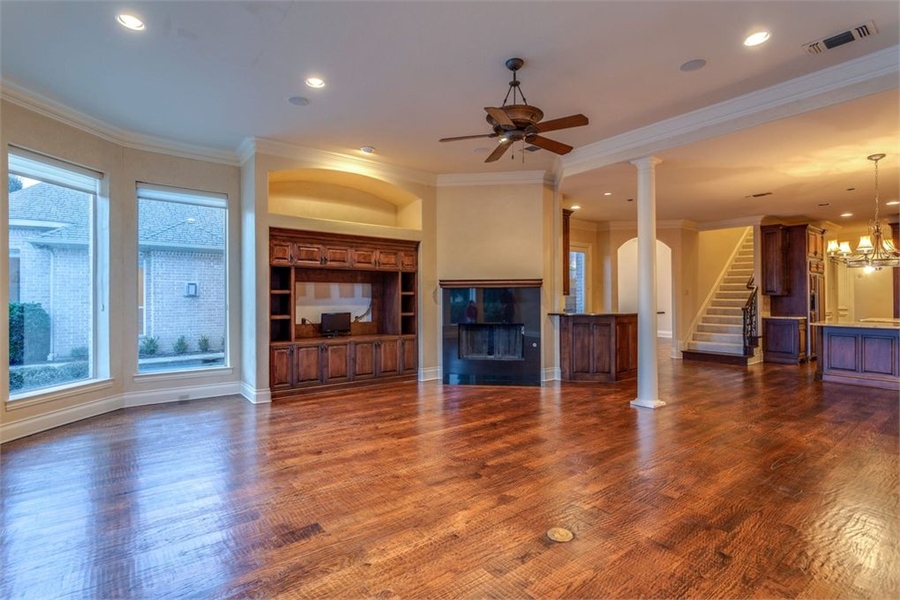

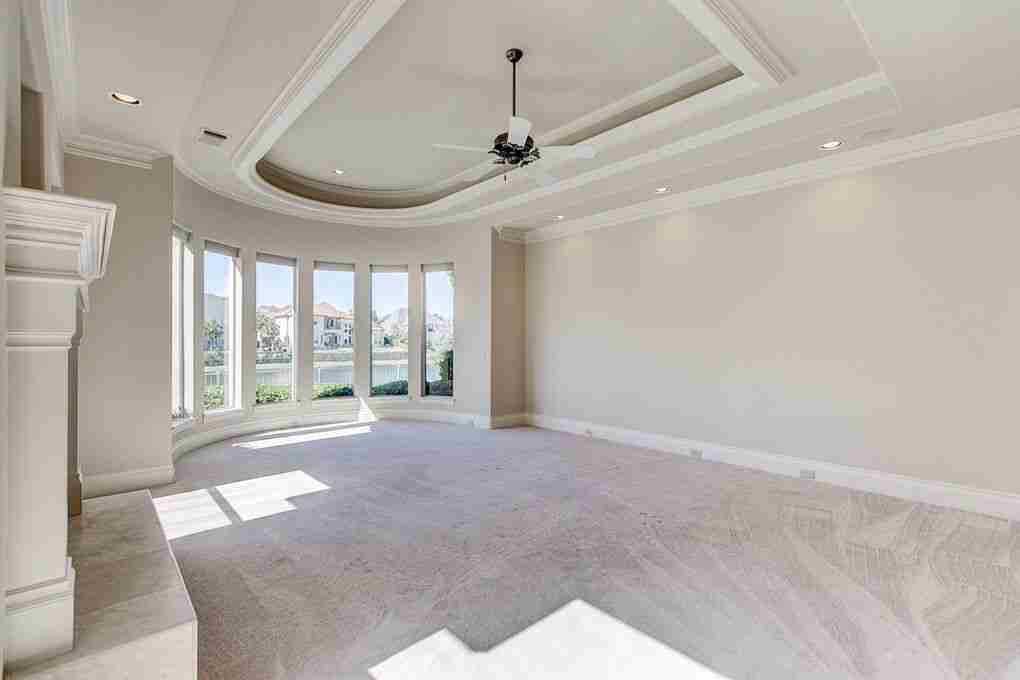

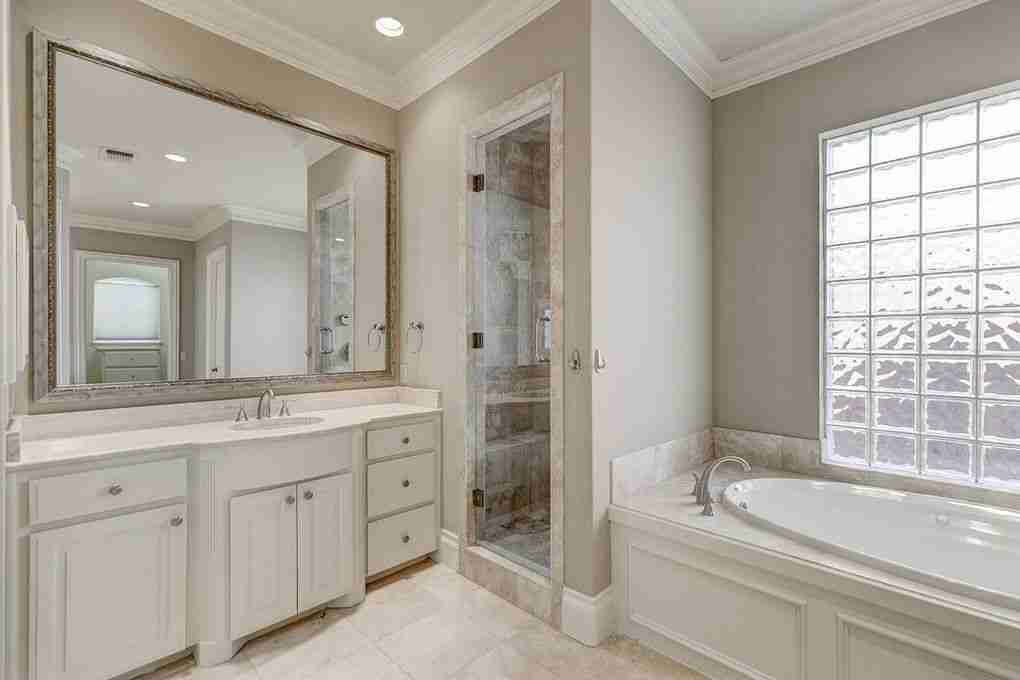

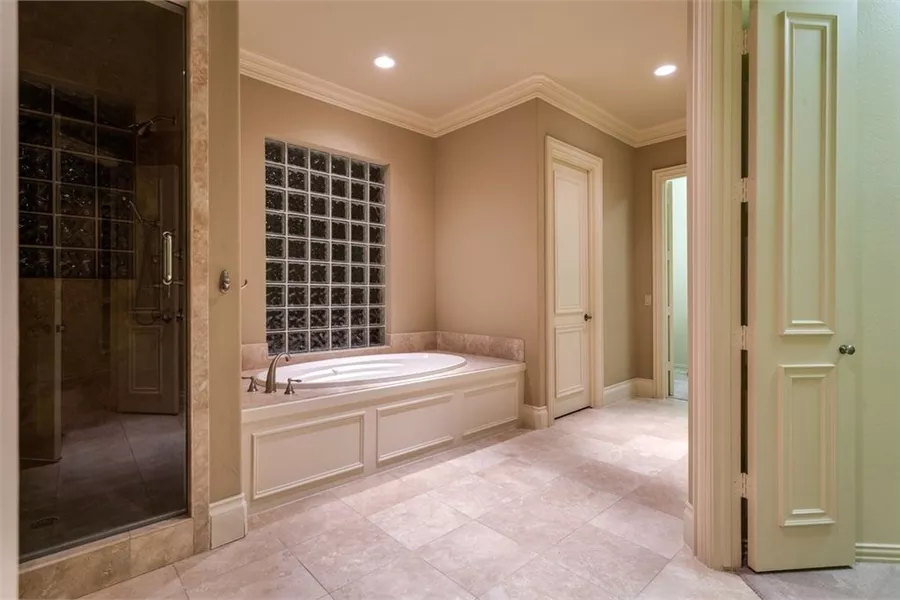

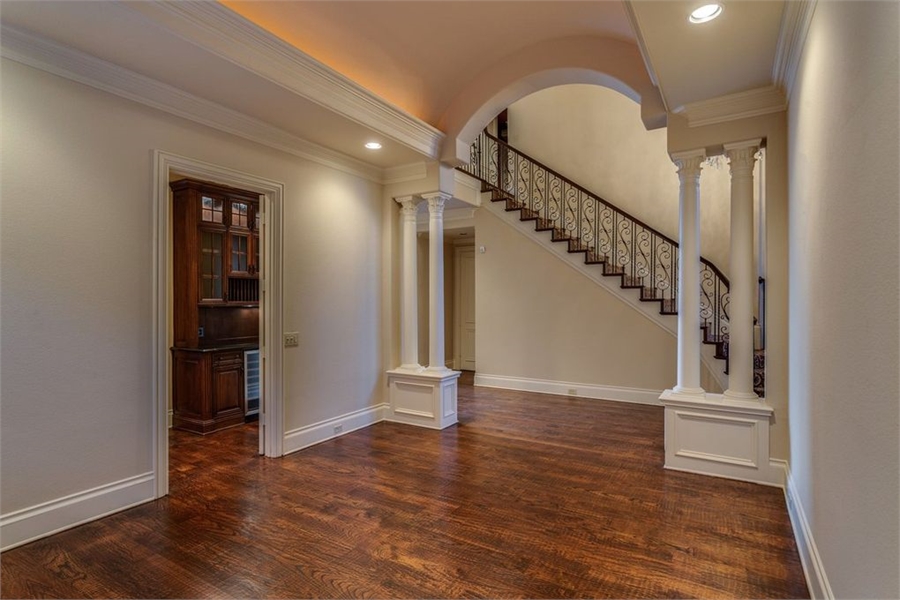

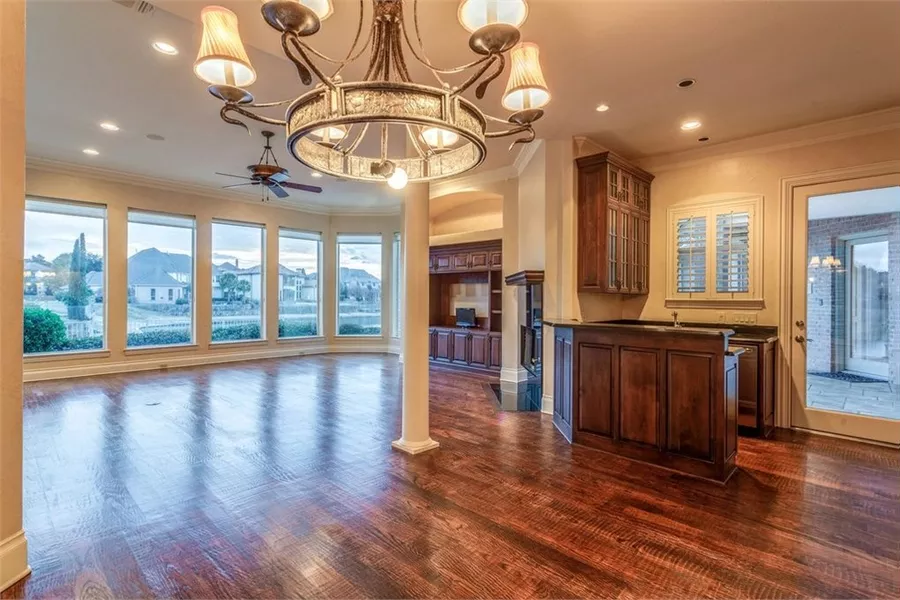

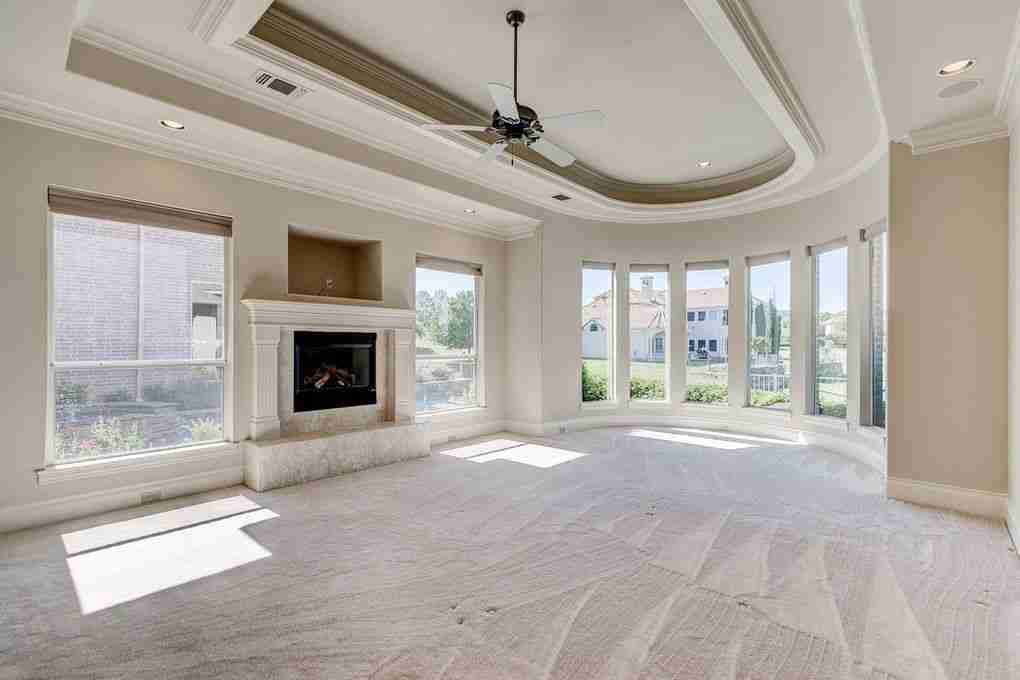

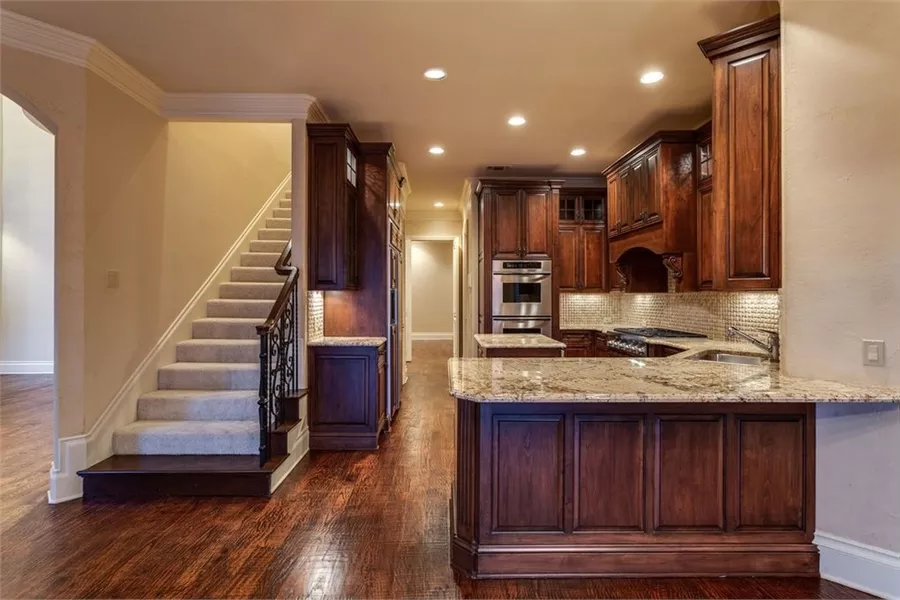

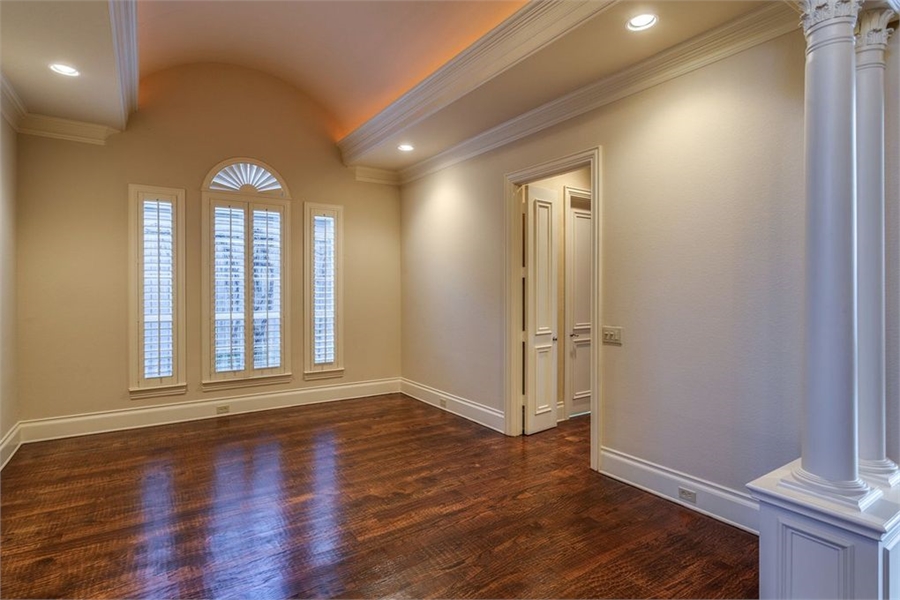

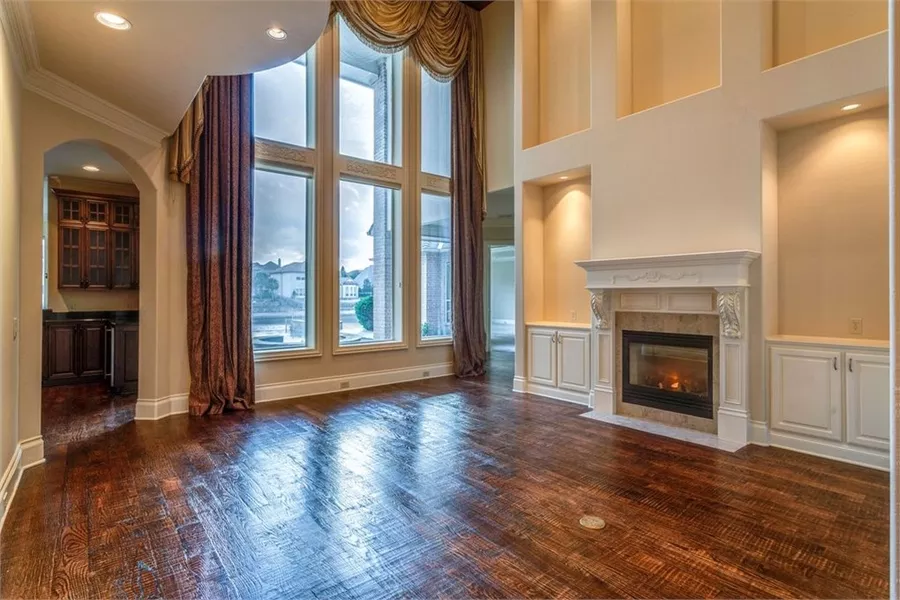

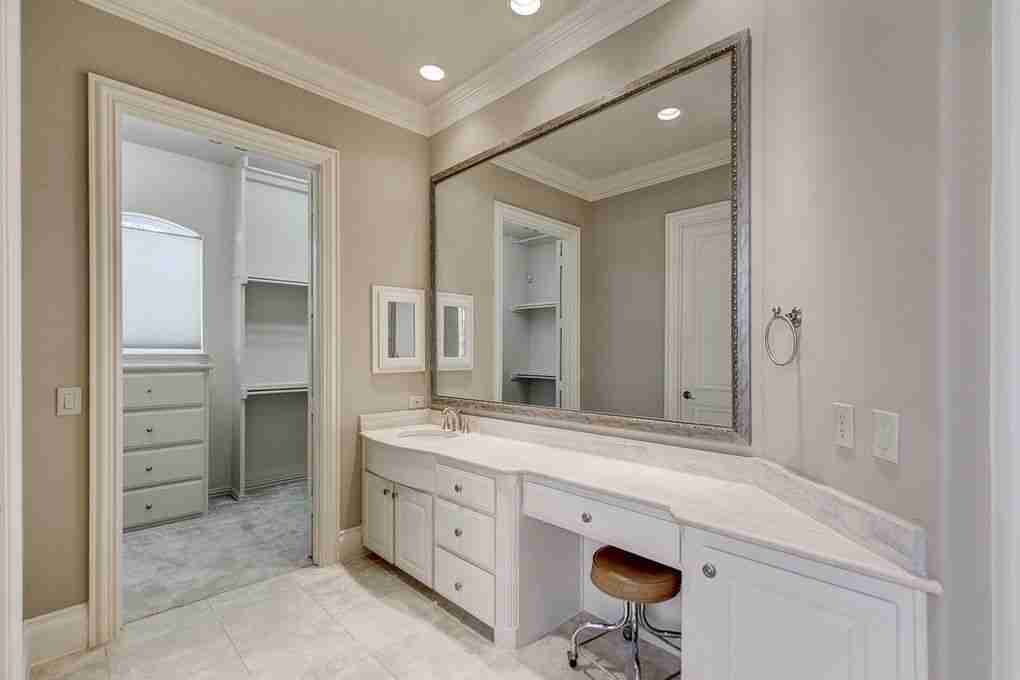

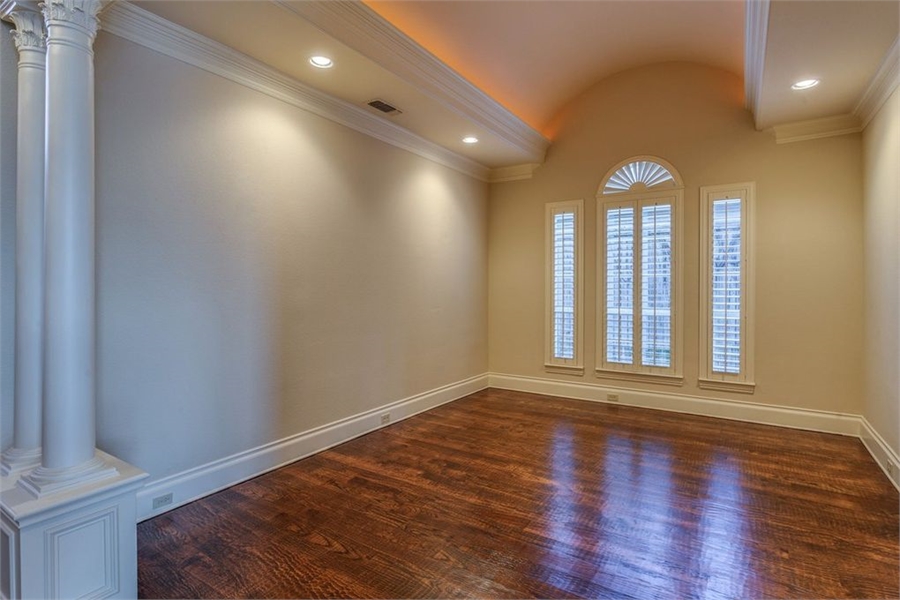

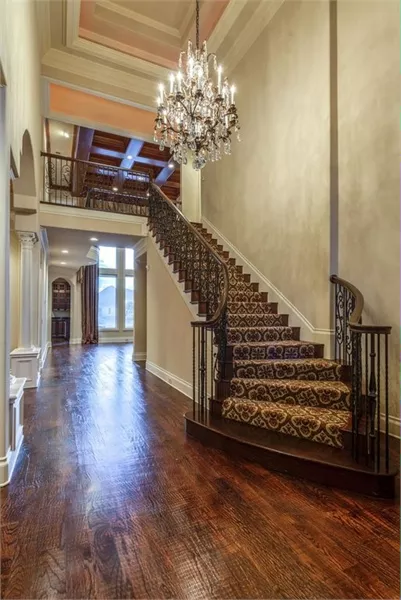

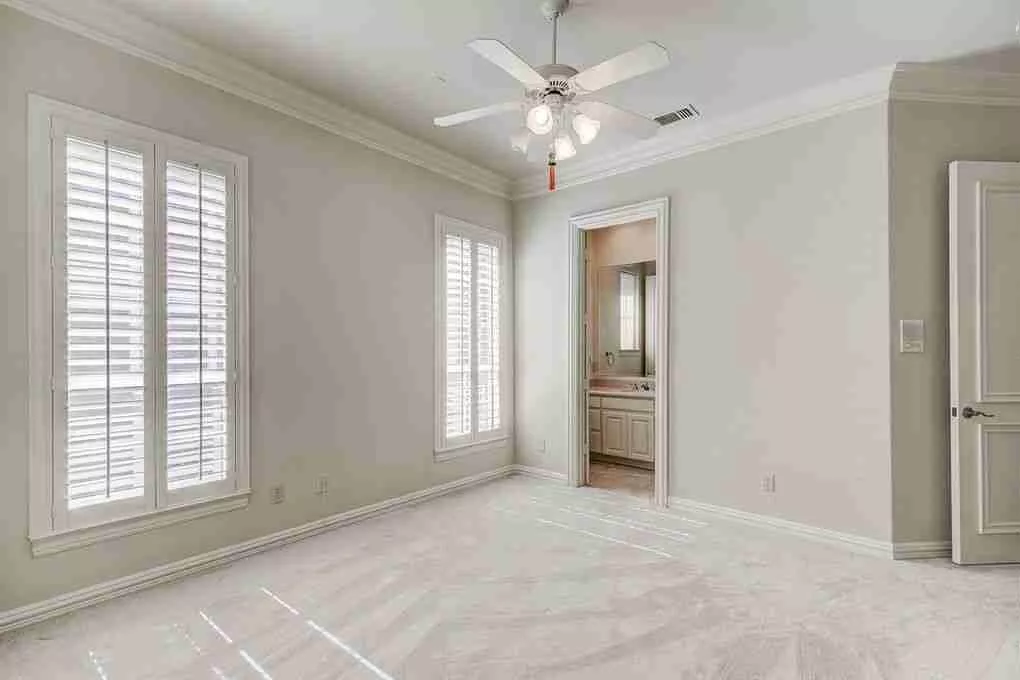

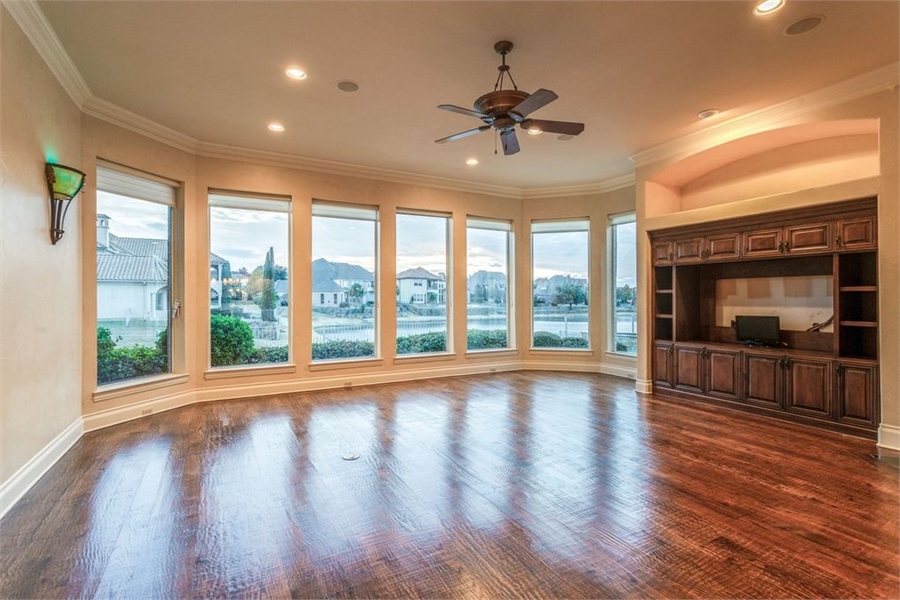

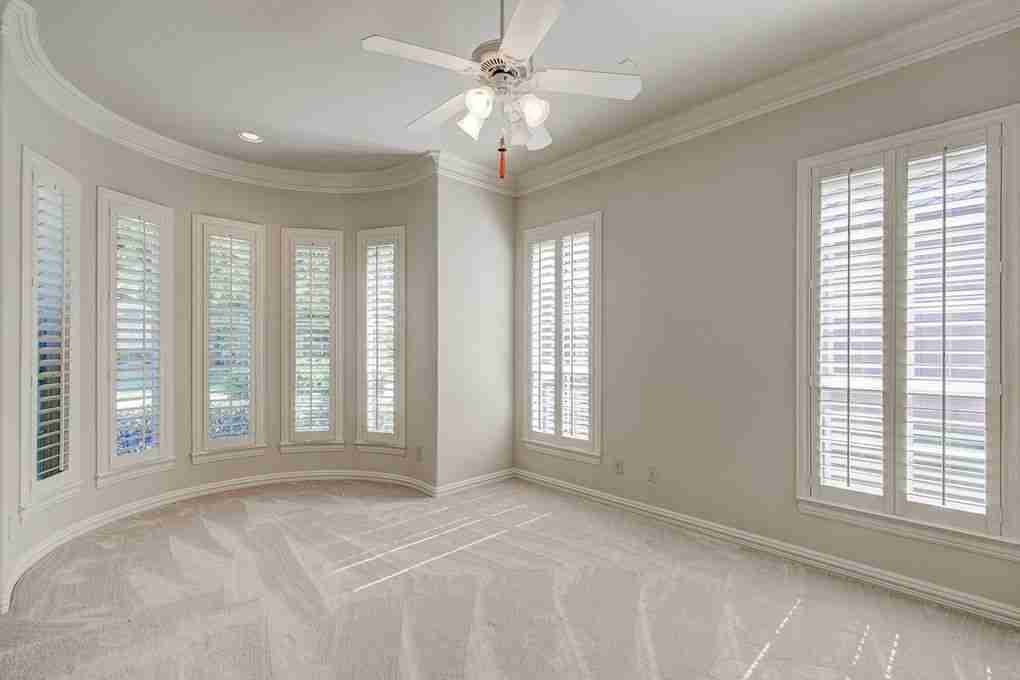

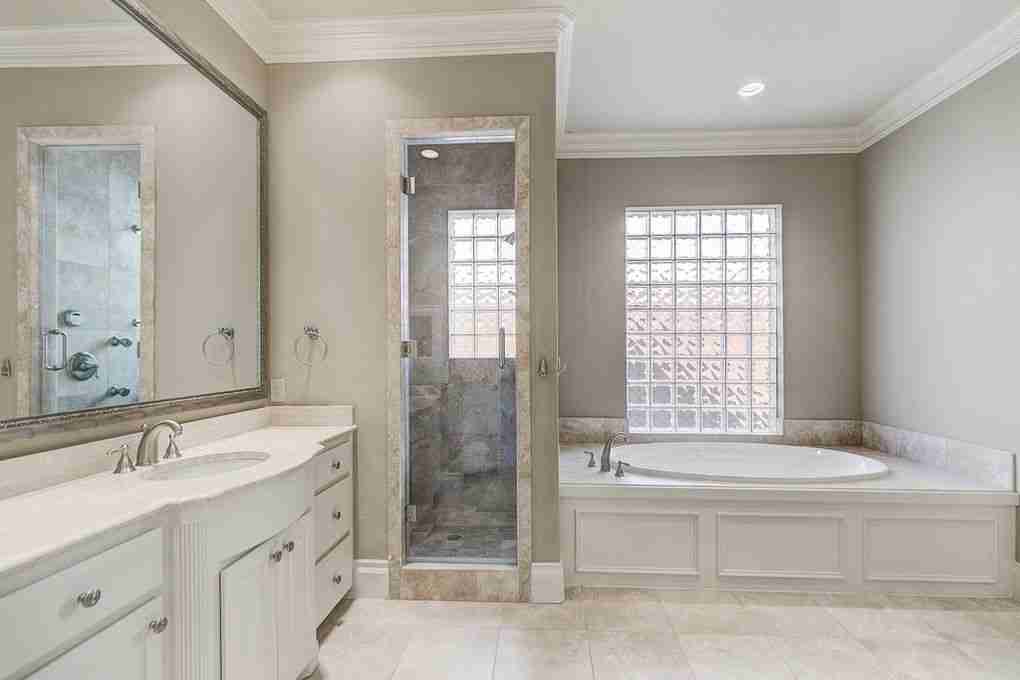

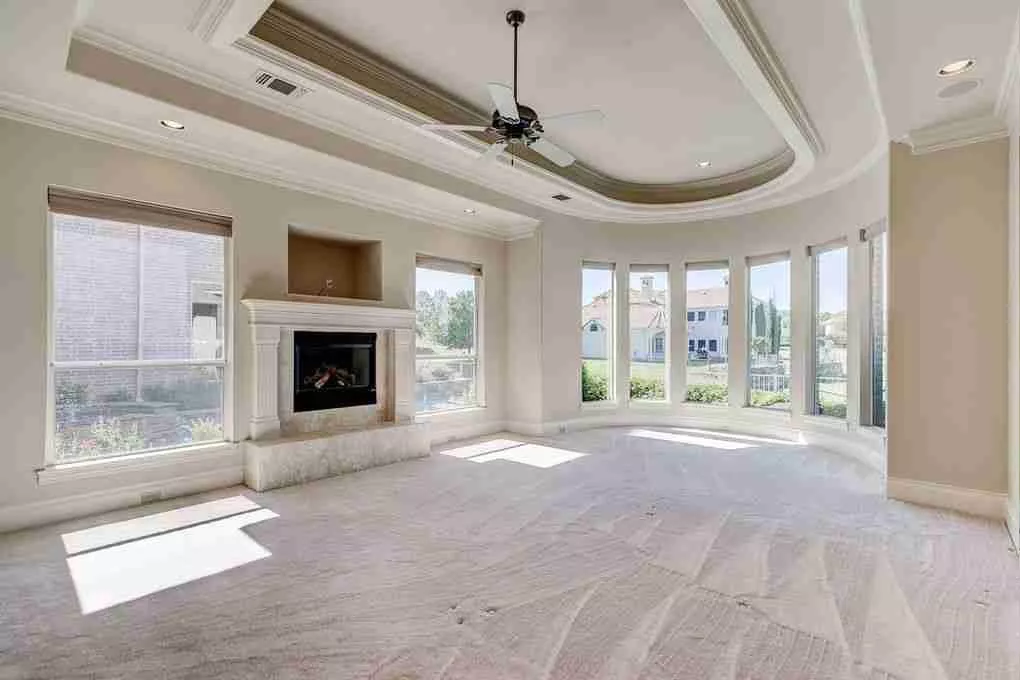

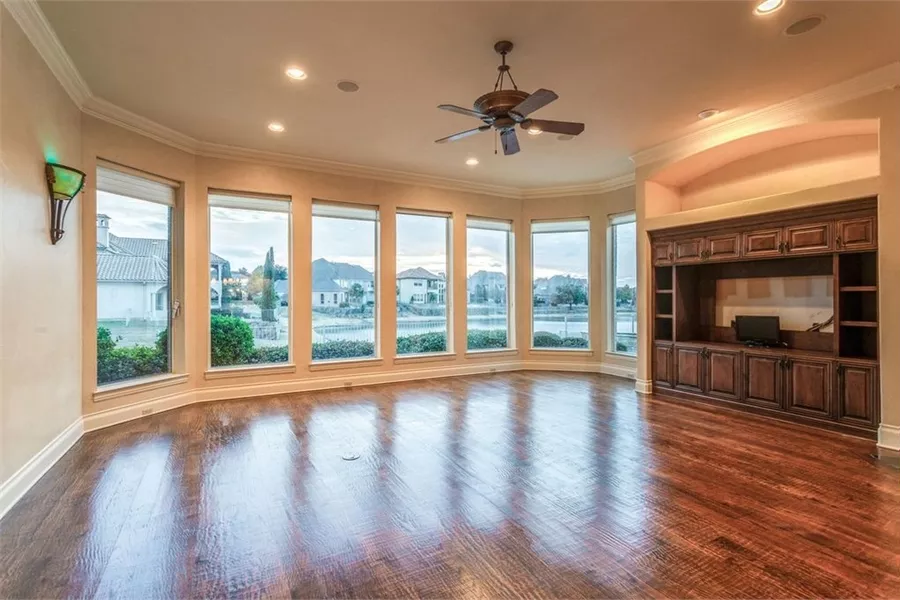

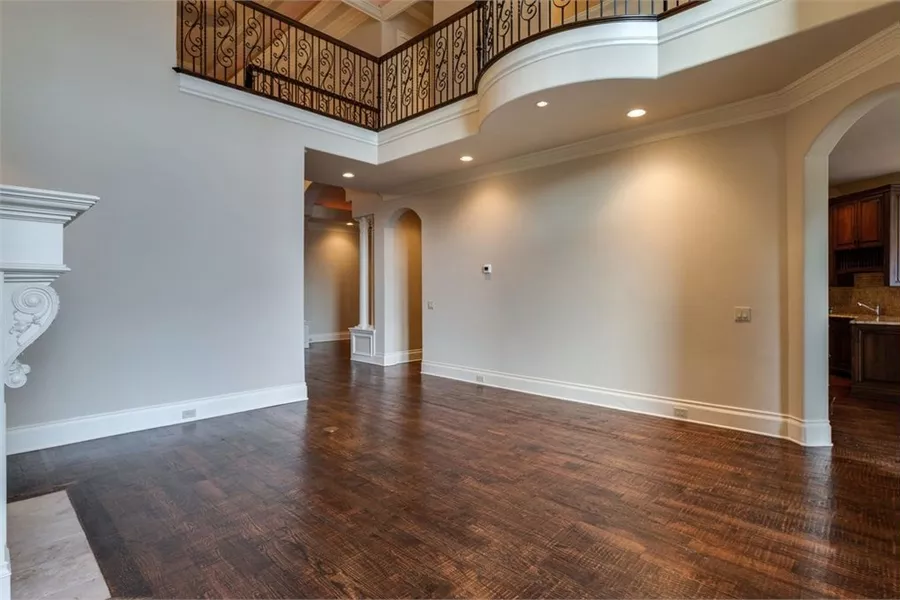

This French-inspired luxury mansion is a wonderful home for any family. The 24-ft. vaulted foyer offers a sweeping staircase and entrance to a family bedroom that could be easily converted into a guest room or in-law suite. The bedroom has a bayed sitting area, walk-in closet and private bath. From the foyer, enter the elegant dining room, with its barrel vaulted ceiling and entrance to the butlery, utility room and kitchen for ease in serving. The breakfast room and family room are separated by a large decorative pillar, allowing the warmth of the family room's fireplace to be enjoyed in the breakfast area and kitchen. The family room offers built-ins and a large bank of windows along the back of the room. A bar and patio access from the breakfast room make entertaining convenient to the gathering area. The study features a coffered ceiling and opens to the living room. The luxurious master suite boasts a bayed sitting area, a tray ceiling, a fireplace, and a lavish master bath with his and hers vanities, separate shower and tub, and large wardrobe. The winding stairs lead to a loggia with views of the main level. There are three family bedrooms upstairs, two sharing a Jack and Jill bath and the other with a full bath and access to the balcony and game room. A bar and bonus room complete this level of this luxury mansion home plan.


FEATURES & DETAILS

Kitchen features
Butler's Pantry
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Guest Suite
Primary Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Foundation Options
Slab
Additional features
2 Story Volume
Arches
Bonus Room
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl

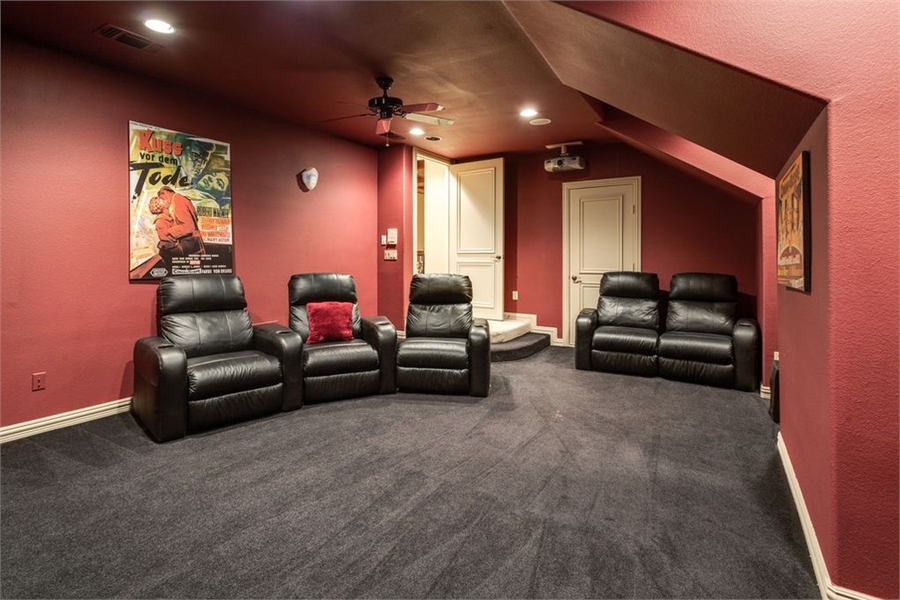

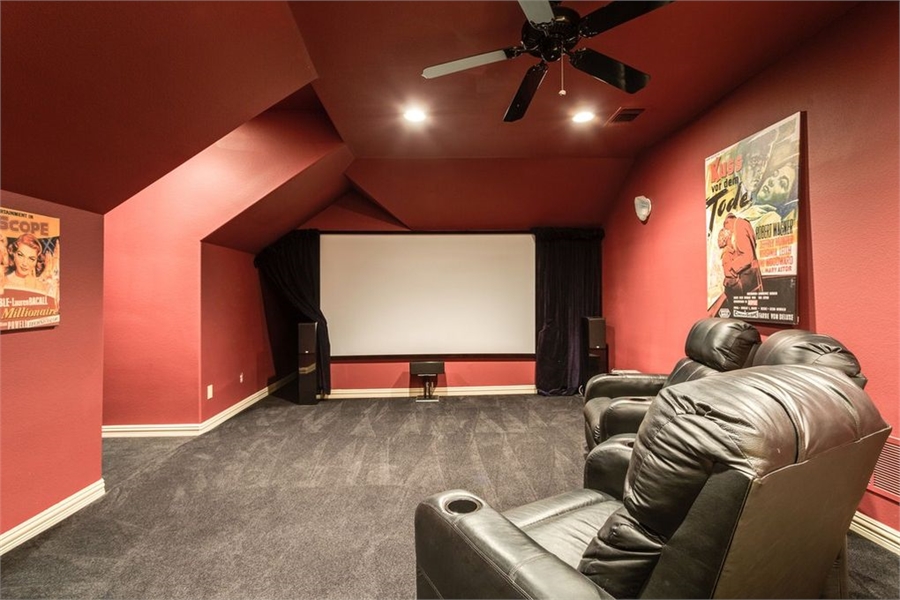

Library/Media Rm
Open Floor Plan
Vaulted Ceilings
Garage Location
Rear
Garage Options
Attached
Rear-entry
6,546 Ft
2
Total Structure
4,850 Ft
2
Total Heated
3,778 Ft
2
1st Floor
1,072 Ft
2
2nd Floor
5
Bedrooms
4
Bathrooms
3
Garage
2
Stories
69' 0"
Width
99' 0"
Depth
34' 0"
Height
11' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
Single
Dwelling Number

Unheated Living Space
751 Ft
2
Garage
87 Ft
2
Porch
149 Ft
2
Deck
181 Ft
2
Patio
528 Ft
2
Bonus Room


Plan Package Options

 Select Plan Package
$1,485
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,485
$1,665
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,665
$2,230
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,230
 Need To Reverse Plan? (Optional)
$175
Readable Reverse

Reverse house plans with readable text and dimensions

$175
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
