Sq Ft
4,044 FT²
Bed
4
Bath
4
Stories
2
Garage
1
Depth
41' 6"
Width
91' 9"
On Sale
$1,287.75
$1,515.00
© copyright by designer
View All 32 Images | Photographs may reflect modified home
Sq Ft
4,044 FT²
From
$1,287.75
Bed
4
Bath
4
Stories
2
Garage
1
Depth
41' 6"
Width
91' 9"

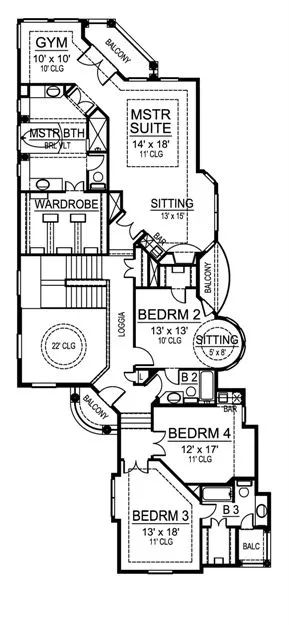

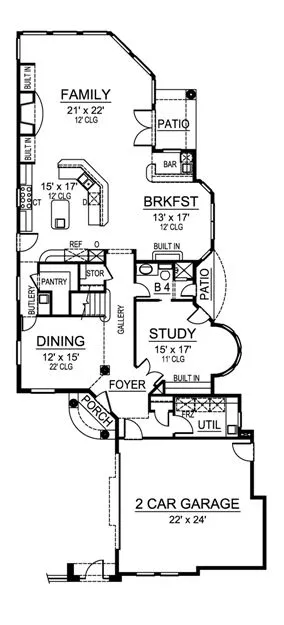

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

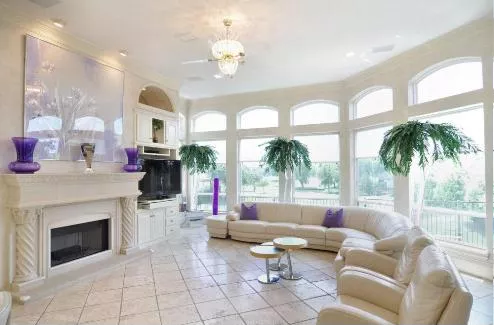

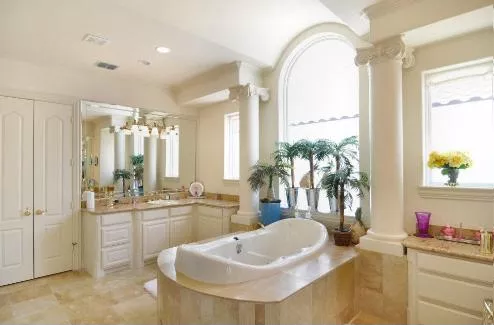

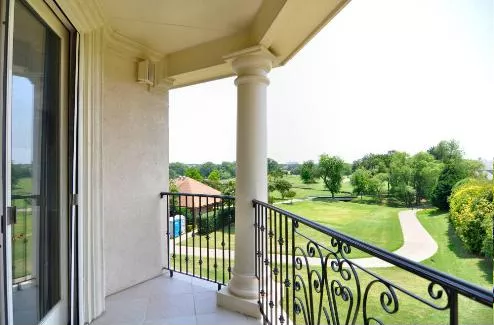

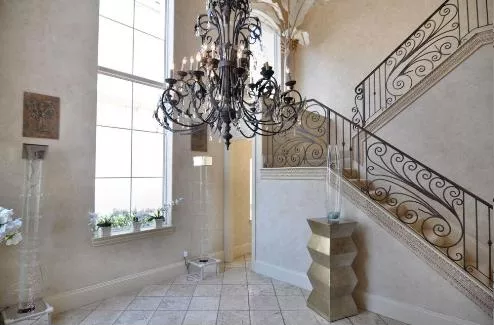

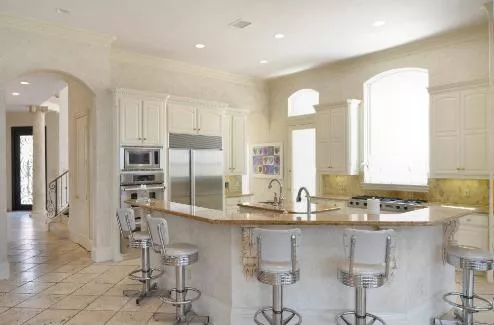

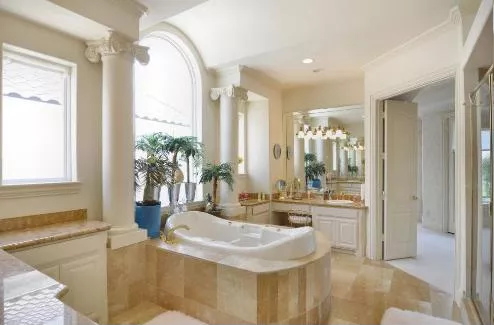

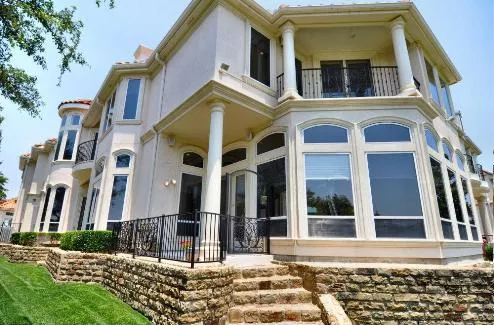

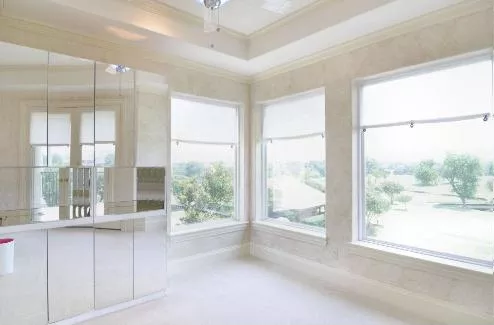

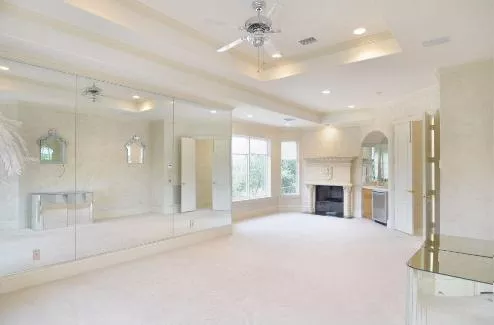

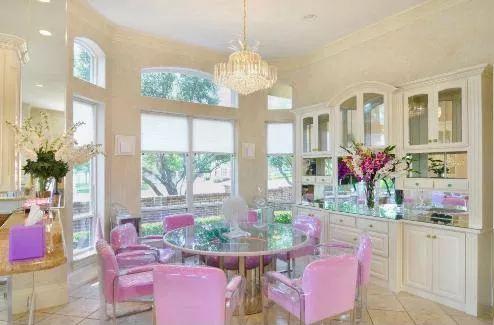

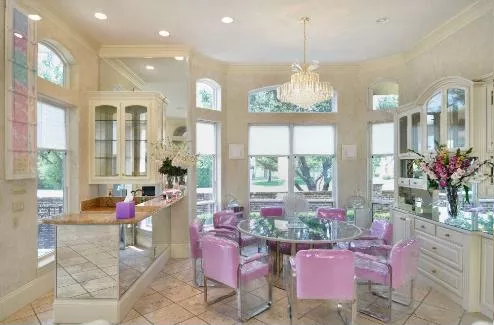

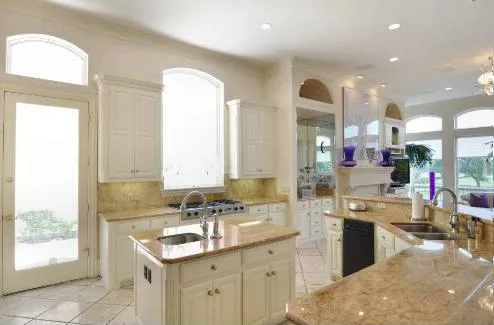

This Mediterranean luxury house plan is perfect for a narrow lot. The spacious foyer is flanked by the quiet study with built-ins, and the elegant dining room to the left. A large Tuscan-inspired pillar defines the perimeter of the dining room/foyer. The butlery, pantry and kitchen are off the dining room, and offer ease of access. The kitchen provides a free-standing island and breakfast bar for use by the breakfast area and family room. The family room has built-ins and a warming fireplace to keep the entire family gathering area cozy. The breakfast area has built-ins, a bar and views of the garden from the covered patio. Upstairs, three family bedrooms share space with the luxurious master suite. The master suite boasts a large sitting area, tray ceiling, private covered balcony, exercise area, and lavish master bath with his and hers vanities, separate shower and tub, and a large wardrobe. You'll enjoy the views from above to the main level below, completing this Mediterranean luxury house plan.


FEATURES & DETAILS

Kitchen features
Butler's Pantry
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry
Bedroom features
Double Vanity Sink
Master Bdrm Upstairs
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet
Exterior features
Covered Front Porch
Covered Rear Porch
Deck
Front Porch
Rear Porch
Foundation Options
Slab
Additional features
Dining Room
Exercise Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Open Floor Plan
Garage Options
Attached
4,908 Ft
2
Total Structure
4,044 Ft
2
Total Heated
1,914 Ft
2
1st Floor
2,130 Ft
2
2nd Floor
4
Bedrooms
4
Bathrooms
1
Garage
2
Stories
91' 9"
Width
41' 6"
Depth
34' 4"
Height
11' 0"
Main Floor Ceiling
10' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
8
Primary Roof Pitch
8
Secondary Roof Pitch
8
Porch Roof Pitch
Single
Dwelling Number

Unheated Living Space
542 Ft
2
Garage
70 Ft
2
Porch
184 Ft
2
Deck
68 Ft
2
Patio


Plan Package Options

 Select Plan Package
$1,365
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,365
$2,050
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,050
$2,360
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,360
 Need To Reverse Plan? (Optional)
$175
Readable Reverse

Reverse house plans with readable text and dimensions

$175
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
