Search Plans

Sq Ft
5,489 FT²
Bed
5
Bath
5.5
Stories
2
Garage
3
Depth
113' 4"
Width
87' 9"
From
$2,300.00
© copyright by designer

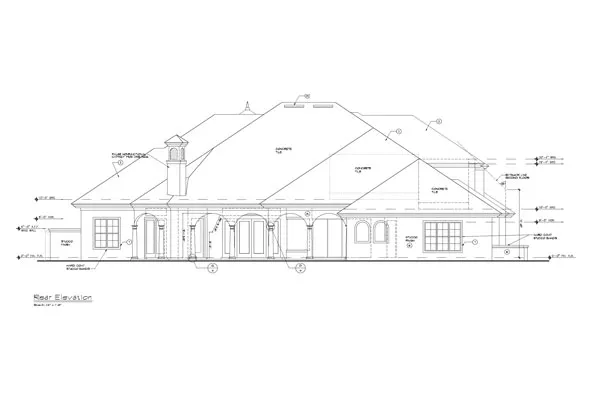

View All 2 Images | Photographs may reflect modified home
Sq Ft
5,489 FT²
From
$2,300.00
Bed
5
Bath
5.5
Stories
2
Garage
3
Depth
113' 4"
Width
87' 9"

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

Strong, traditional lines define the streetscape of this Mediterranean-style manor. Carved brackets line deeply overhanging eaves and a classic arcade surrounds the recessed entry. Fan lights and hipped rooflines distinguish the historic elements of the facade, with a pronounced reference to the architectural forms of this Italian Renaissance design. This five bedroom, six bath floor plan with study, billiard room and media room also has a 150 square foot accessible attic space. This finely detailed house design also features an exterior garden with an open air shower area, plus a summer kitchen and an outside living room with fireplace.


FEATURES & DETAILS

Kitchen features
Butler's Pantry
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry
Bedroom features
Double Vanity Sink
His and Hers Primary Closets
Primary Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet
Exterior features
Covered Front Porch
Covered Rear Porch
Foundation Options
Slab
Lot Options
Suited for view lot
Additional features
2 Story Volume
Arches
Bonus Room
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Mud Room
Open Floor Plan
Rec Room
Storage Space
Vaulted Ceilings
Workshop
Garage Location
Side
Garage Options
Attached
Oversized
Side-entry
7,368 Ft
2
Total Structure
5,489 Ft
2
Total Heated
4,791 Ft
2
1st Floor
698 Ft
2
2nd Floor
5
Bedrooms
5.5
Bathrooms
3
Garage
2
Stories
87' 9"
Width
113' 4"
Depth
35' 0"
Height
12' 0"
Main Floor Ceiling
10' 0"
Upper Floor Ceiling
8" Block
Framing
Combination
Roof Framing
8/12
Primary Roof Pitch
8:12
Secondary Roof Pitch
8:12
Teritary Roof Pitch
Single
Dwelling Number
1st Floor, 2nd Floor
Bonus Access

Unheated Living Space
828 Ft
2
Garage
150 Ft
2
Storage
86 Ft
2
Porch
815 Ft
2
Patio


Plan Package Options

 Select Plan Package
$900
PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$900
$2,300
PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,300
$2,500
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,500
$2,650
5 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,650
$4,600
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$4,600
  Select Foundation Option
  Add-Ons (Optional)

Free Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
