HOUSE PLANS
START AT $1,515
SQ FT
4,173
BEDS
4
BATHS
4
STORIES
2
CARS
3
WIDTH
95'
DEPTH
65'
© copyright by designer

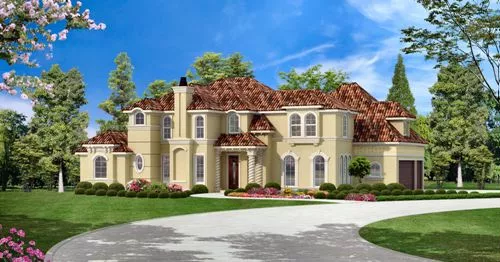

Photographs may reflect modified homes.   View all 6 photos
SQ FT
4,173
BEDS
4
BATHS
4
STORIES
2
CARS
3



House Plan 4883: OAK PARK

This Mediterranean luxury house plan brings your dreams to the door step. The two story foyer opens to a spiral staircase and bar/wine room, and is flanked by the quiet study with warming fireplace and the elegant dining room. Access into the pantry and butlery allows for ease in serving. The family gathering area consists of the breakfast area, kitchen and family room. Built-ins, a warming firep...  Read more >
Click to Zoom In on Floor Plan

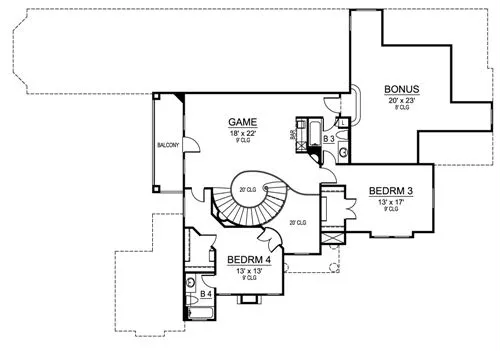

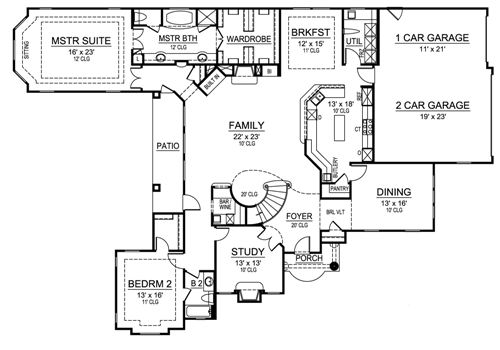

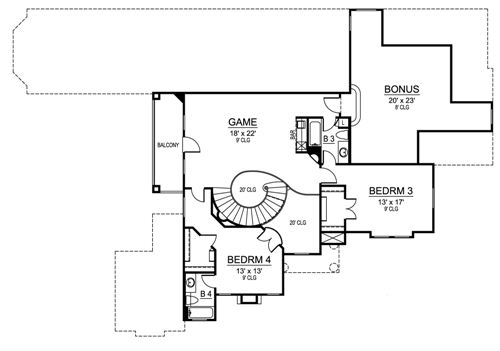

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$1,515

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,715

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$2,275
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$175
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Additional features
2 Story Volume
Bonus Room
Dining Room
Family Room
Fireplace
Home Office
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Vaulted Ceilings
Garage Location
Side
Garage Features
Attached
Side-entry

Hide Plan Features
Details:
View All Plan Details
5,695 Ft
2
Total Structure:
4,173 Ft
2
Total Heated:
2,946 Ft
2
1st Floor:
1,227 Ft
2
2nd Floor:
4
Bedrooms:
4
Bathrooms:
3
Garage:
2
Stories:
95' 0"
Width:
65' 0"
Depth:
31' 0"
Height:
10
Main Floor Ceiling:
9
Upper Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
Single
Dwelling Number:
Unheated Living Space
689 Ft
2
Garage:
44 Ft
2
Porch:
119 Ft
2
Deck:
140 Ft
2
Patio:
530 Ft
2
Bonus Room:
Exterior Styles
Mediterranean
Traditional
Tuscan
Collections
Open Floor Plan
Outdoor Living

Hide Plan Details
