Sq Ft
4,171 FT²
Bed
4
Bath
3
Stories
2
Garage
2
Depth
97'
Width
50'
On Sale
$1,287.75
$1,515.00
© copyright by designer
View All 13 Images | Photographs may reflect modified home
Sq Ft
4,171 FT²
From
$1,287.75
Bed
4
Bath
3
Stories
2
Garage
2
Depth
97'
Width
50'

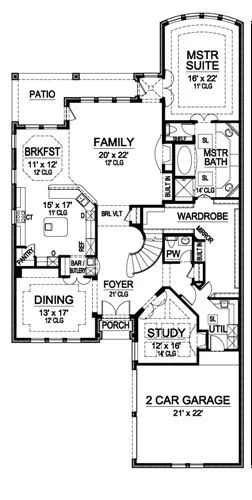

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

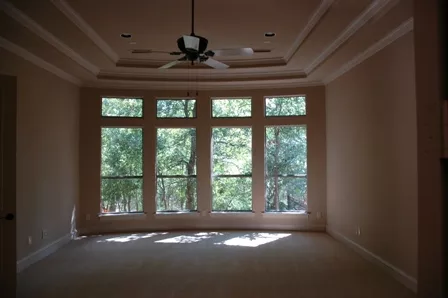

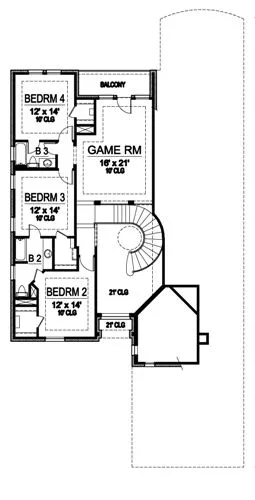

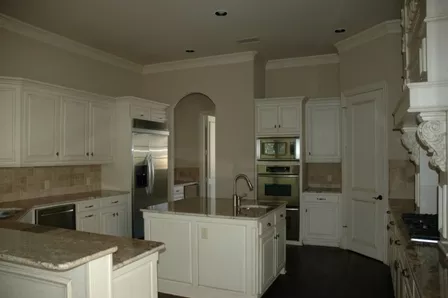

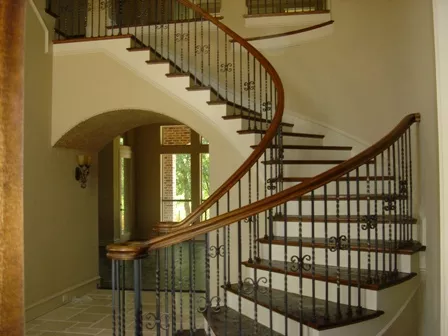

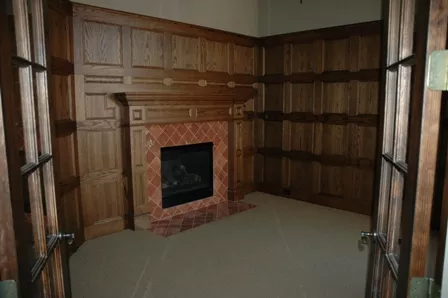

This Texas-inspired luxury house plan is perfect for a narrow lot or a zero lot line. With four bedrooms, this home would be large enough for most families. The two-story foyer with curved staircase and barrel vault ceiling is awesome. A coffered ceiling can be seen in the study through the double doors off the foyer. A private hall leads to the utility room and master suite wardrobe with built-ins and a tall mirror. The foyer also opens into the elegant dining room with tray ceiling and doors to the bar/butlery, making serving a breeze. The island kitchen offers built-ins, a pantry and a breakfast bar. The family room incorporates a bank of windows for sun to stream through, plus built-ins and a warming fireplace. The master suite boasts a curved wall of windows and a tray ceiling, plus a lavish bath with his and hers sinks, separate shower, tub and the large wardrobe. Upstairs, three bedrooms with tray ceilings, walk-in closets and direct bath access share space with a game room with a private balcony.


FEATURES & DETAILS

Kitchen features
Butler's Pantry
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Exterior features
Covered Front Porch
Covered Rear Porch
Deck
Front Porch
Rear Porch
Foundation Options
Slab
Additional features
2 Story Volume
Dining Room
Family Room
Fireplace
Home Office
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Options
Attached
Side-entry
5,039 Ft
2
Total Structure
4,171 Ft
2
Total Heated
2,890 Ft
2
1st Floor
1,281 Ft
2
2nd Floor
4
Bedrooms
3
Bathrooms
2
Garage
2
Stories
50' 0"
Width
97' 0"
Depth
35' 0"
Height
12' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
Single
Dwelling Number

Unheated Living Space
545 Ft
2
Garage
30 Ft
2
Porch
88 Ft
2
Deck
205 Ft
2
Patio


Plan Package Options

 Select Plan Package
$1,365
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,365
$2,050
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,050
$2,360
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,360
 Need To Reverse Plan? (Optional)
$175
Readable Reverse

Reverse house plans with readable text and dimensions

$175
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
