Manatee 3 Bedroom Beach Style House, Plan 1627

Sq Ft
1,507 FT²
Bed
3
Bath
2.5
Stories
2
Garage
1
Depth
60'
Width
18' 8"
On Sale
$794.75
$935.00
© copyright by designer
View All 5 Images | Photographs may reflect modified home
Sq Ft
1,507 FT²
From
$794.75
Bed
3
Bath
2.5
Stories
2
Garage
1
Depth
60'
Width
18' 8"

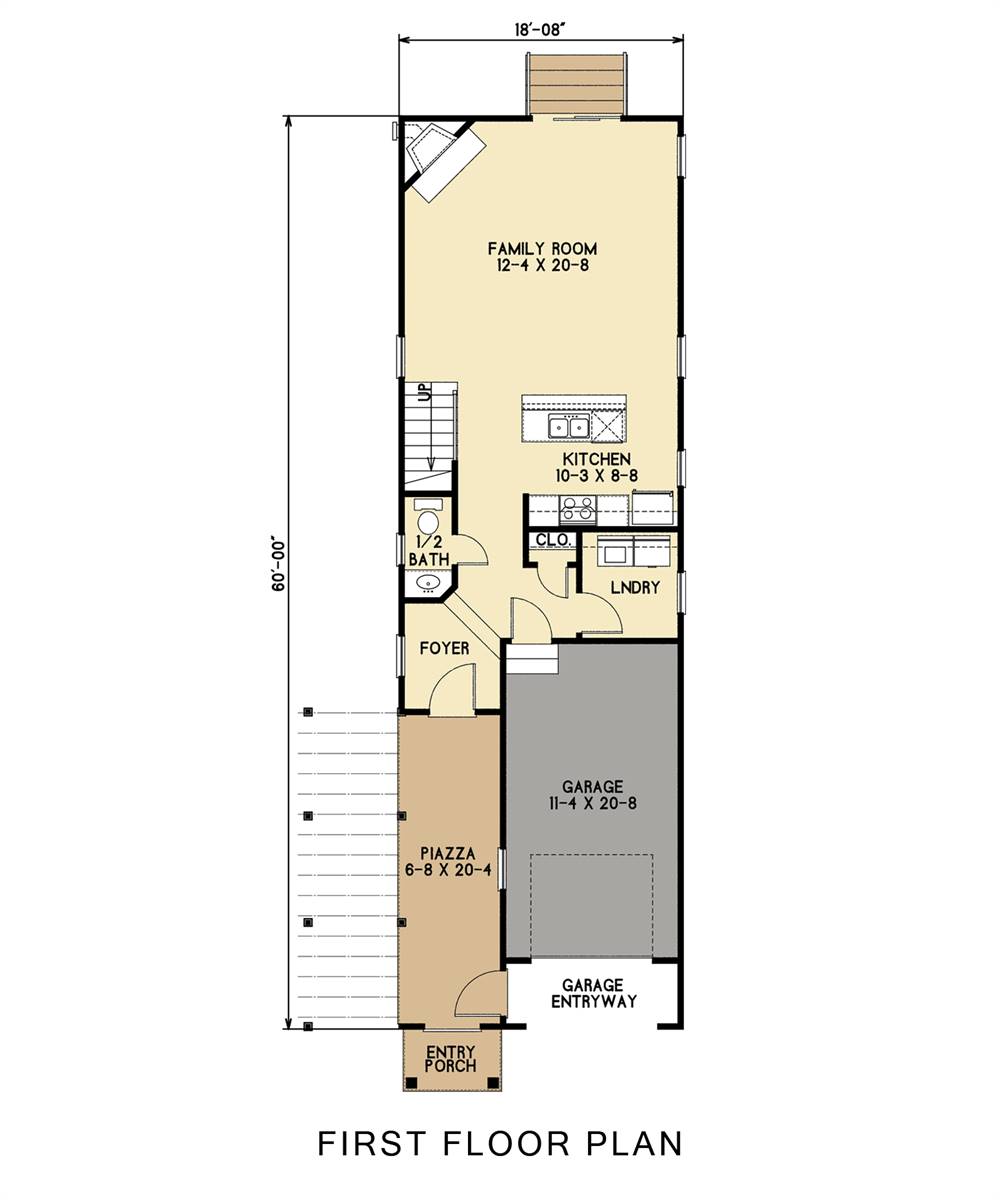

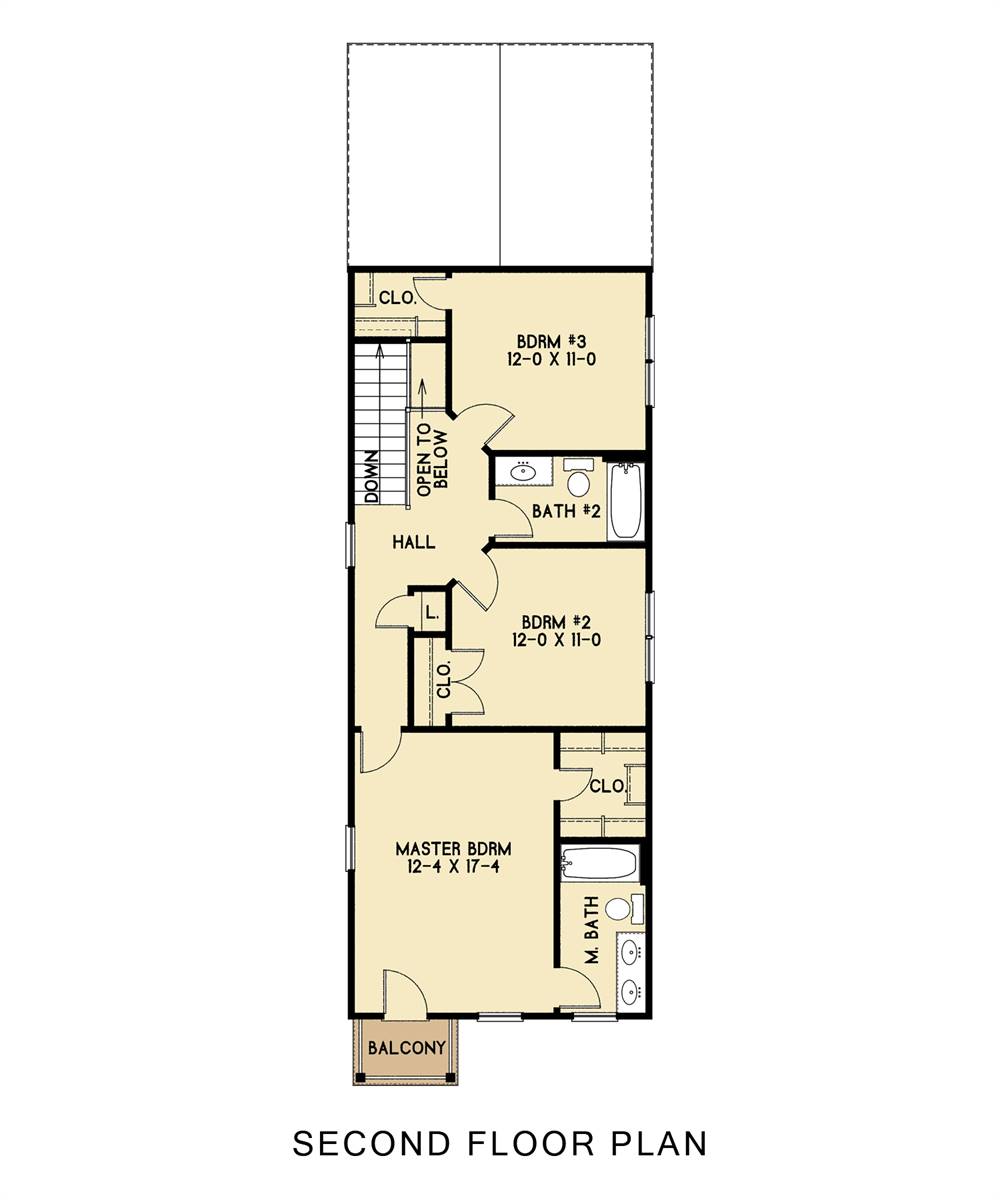

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

Homes that surround the marinas where manatees congregate in the brackish rivers in Florida would be a picturesque setting for this model plan. The 3 bedroom design is very popular in wide variety of communities in the South and Caribbean. It is designed for a narrow lot site, just 25' wide would be ideal. (Since the front door to the house is set well back from the wall of the house a sheltered patio is created for outdoor entertainment.) A one-car garage is recessed front the front face of a plain flat stucco profile with a small balcony that projects from the master bedroom on the second floor. There is a very open first floor living area with a vaulted family room. It adds up to a home with very contemporary features for a very tiny site.


FEATURES & DETAILS

Kitchen features
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Guest Suite
Primary Bdrm Upstairs
Walk-in Closet
Exterior features
Front Porch
Foundation Options
Crawlspace
Lot Options
Suited for corner lot
Suited for narrow lot
Suited for sloping lot
Additional features
Family Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Loft / Balcony
Open Floor Plan
Garage Location
Front
Garage Options
Attached
Front-entry
1,694 Ft
2
Total Structure
1,507 Ft
2
Total Heated
642 Ft
2
1st Floor
865 Ft
2
2nd Floor
3
Bedrooms
2.5
Bathrooms
1
Garage
2
Stories
18' 8"
Width
60' 0"
Depth
29' 5"
Height
8' 0"
Main Floor Ceiling
8' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
10/12
Primary Roof Pitch
4/12
Porch Roof Pitch
Single
Dwelling Number
None
Bonus Access

Unheated Living Space
302 Ft
2
Garage
187 Ft
2
Porch


Plan Package Options

 Select Plan Package
$200
PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$200
$935
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$935
$1,035
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,035
$1,510
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,510
 Need To Reverse Plan? (Optional)
$150
Readable Reverse

Reverse house plans with readable text and dimensions

$150
  Select Foundation Option
  Add-Ons (Optional)

Free Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
