Sq Ft
6,024 FT²
Bed
4
Bath
5.5
Stories
2
Garage
3
Depth
112' 2"
Width
73' 2"
On Sale
$2,431.00
$2,431.00
© copyright by designer
View All 27 Images | Photographs may reflect modified home
Sq Ft
6,024 FT²
From
$2,431.00
Bed
4
Bath
5.5
Stories
2
Garage
3
Depth
112' 2"
Width
73' 2"

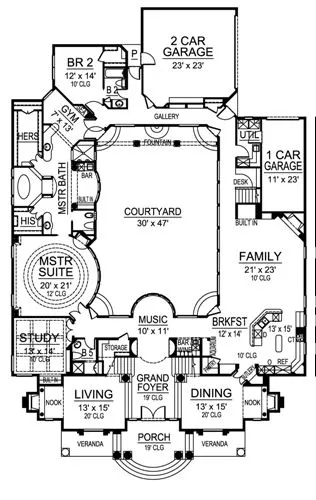

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

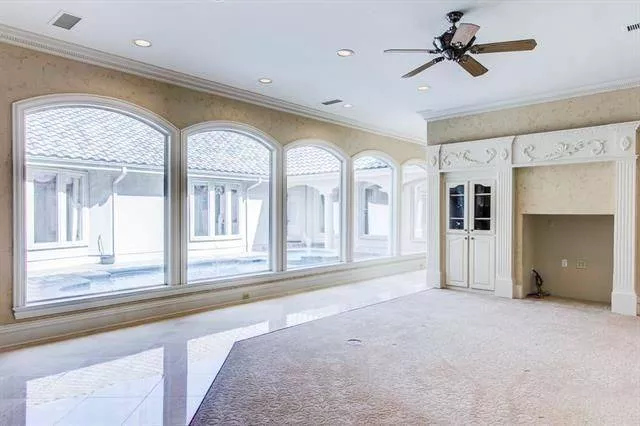

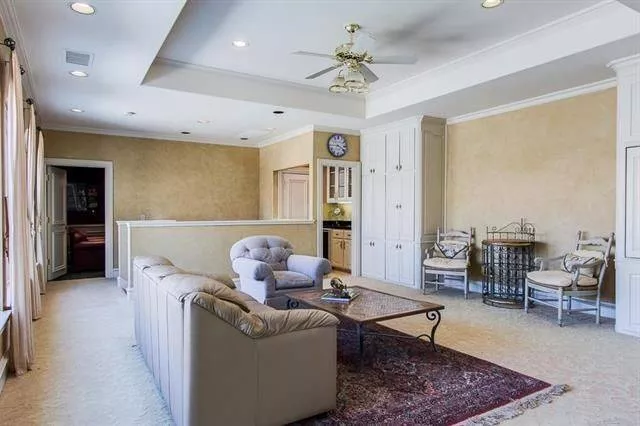

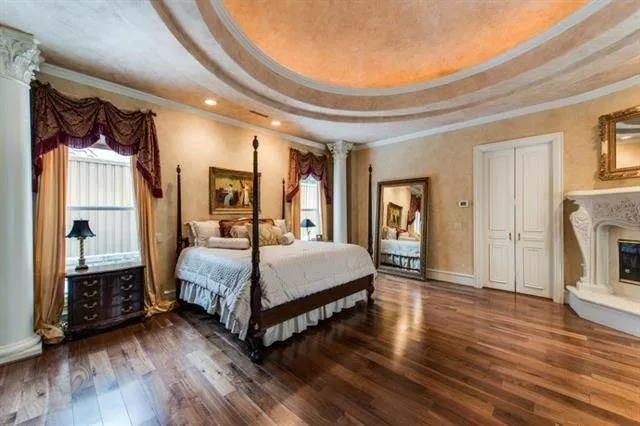

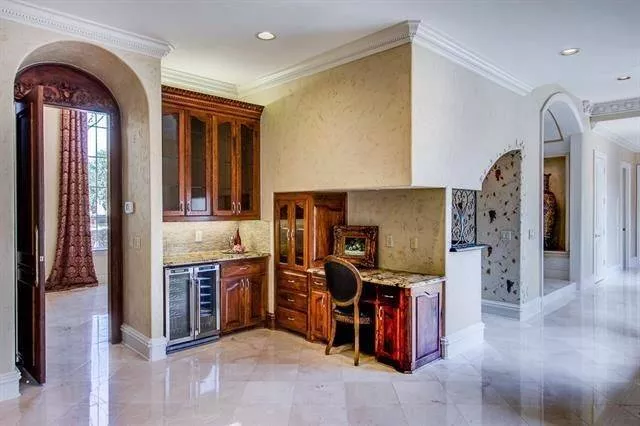

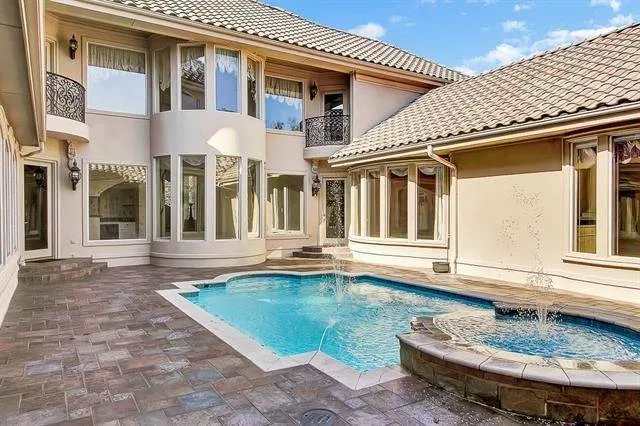

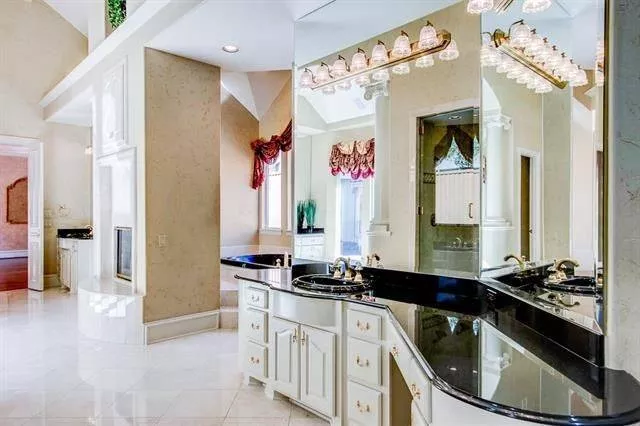

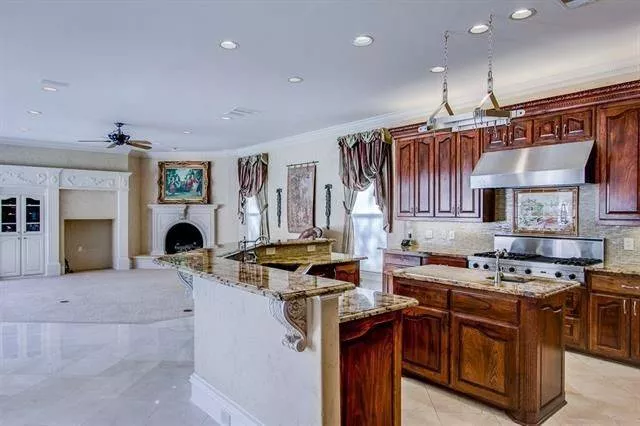

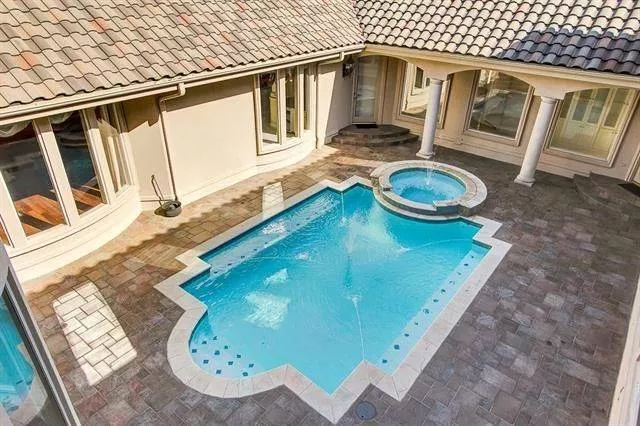

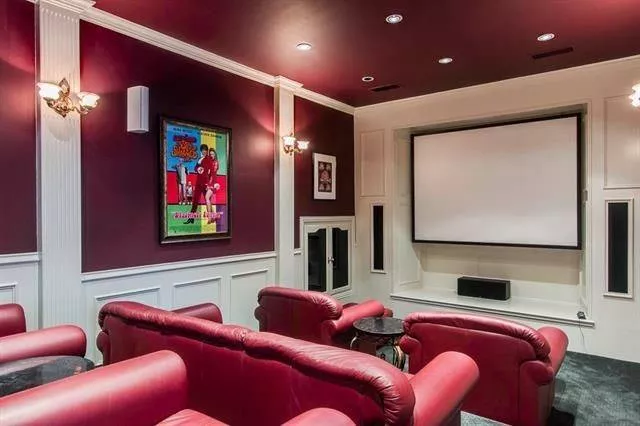

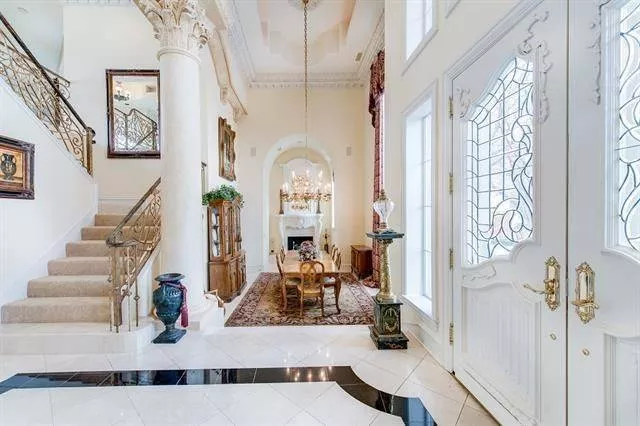

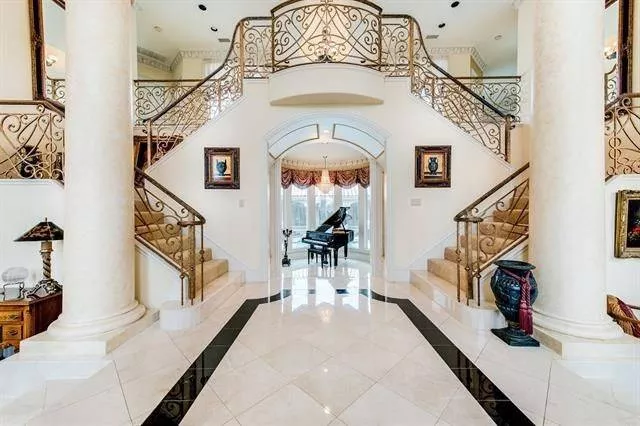

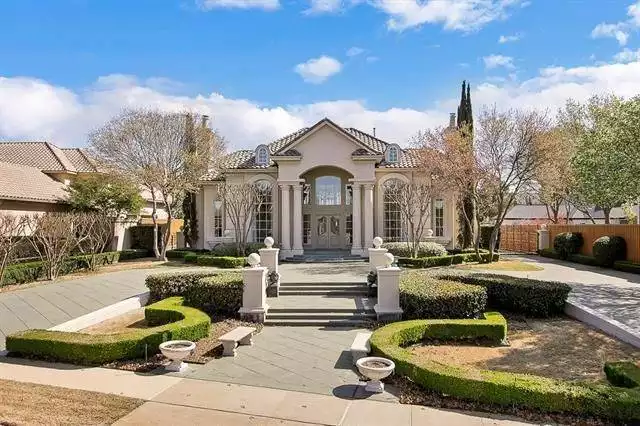

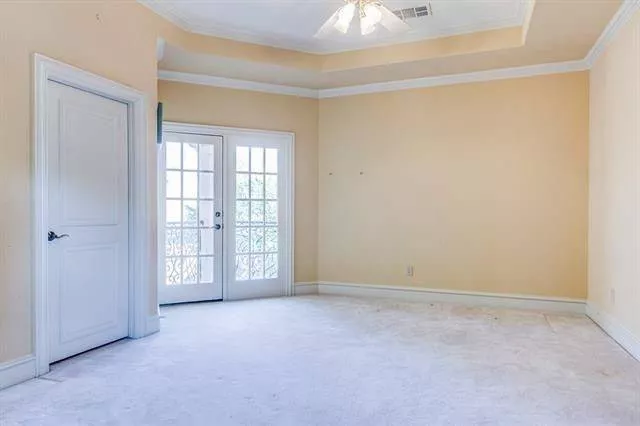

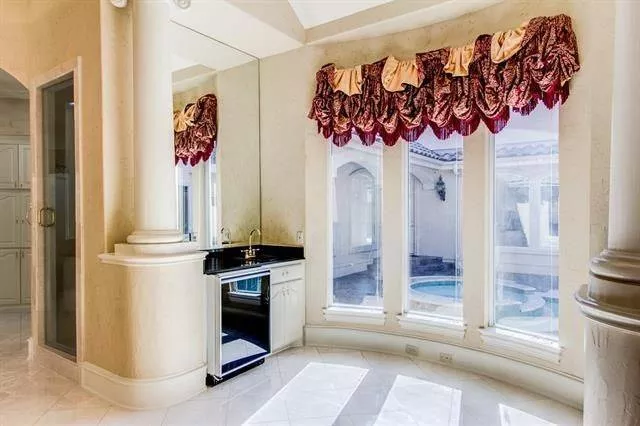

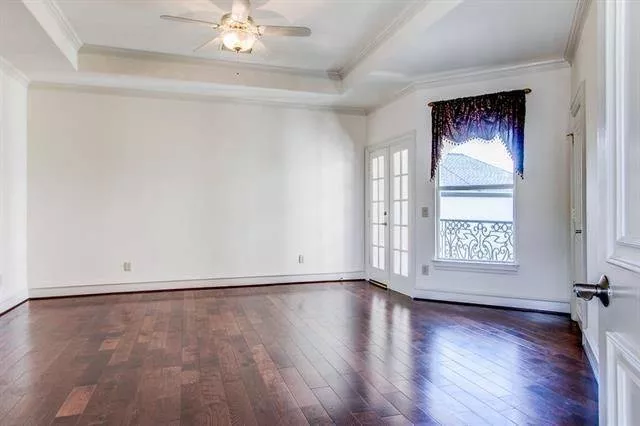

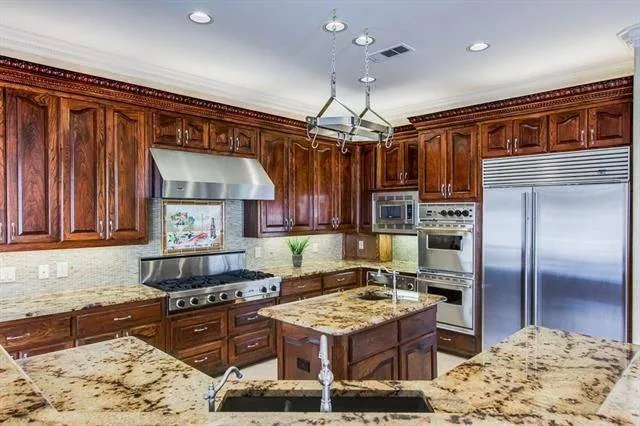

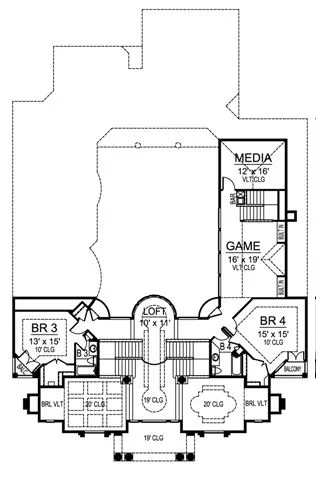

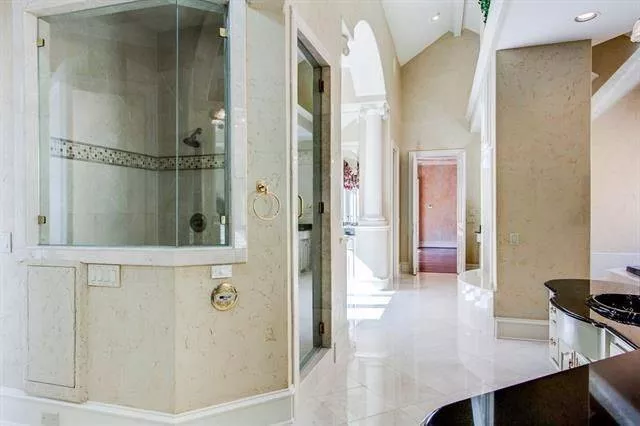

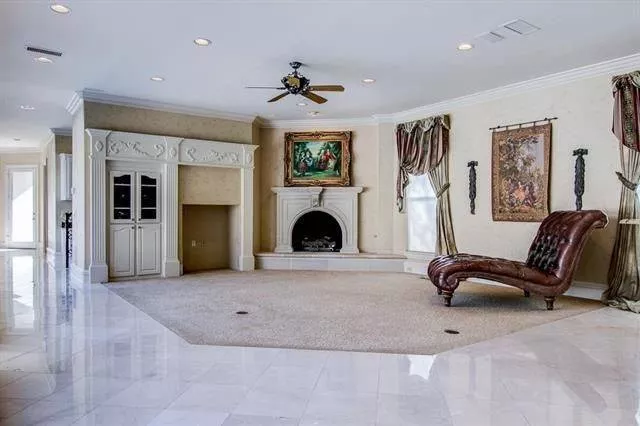

This Mediterranean beauty with an interior courtyard will amaze both visitors and passersby. Enter the grand foyer with its 19-ft. ceiling and double stairs, through to the music room. Large decorative pillars define the perimeters of the living room, grand foyer and dining room. The living room and dining room each have a nook and veranda access. A coffered study, a bar, and plenty of storage are welcome extras. The breakfast area, kitchen and family room make up the family gathering area. The butlery off the dining room will ease serving family and guests. A rear family bedroom has a walk-in closet and full bath access. Two separate garages, a one-car and a two-car, and a utility room make up the rest of the rear of the house. The glamorous master suite offers a gym, and a circular sleeping chamber with tray ceiling. The lavish bath boasts two vanities, a separate shower, an oval tub, a bar, and his and hers wardrobes. Upstairs, two family bedrooms with walk-in closets and direct bath access introduce a media room and a game room, both with vaulted ceilings. The 19-ft. ceiling offers stunning views to the courtyard below. Balconies on the second level complete this luxury mansion.




FEATURES & DETAILS

Kitchen features
Butler's Pantry
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry
Bedroom features
Double Vanity Sink
Guest Suite
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Foundation Options
Slab
Lot Options
Suited for corner lot
Suited for sloping lot
Additional features
2 Story Volume
Arches
Dining Room
Exercise Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
In-law Suite
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Open Floor Plan
Rec Room
Vaulted Ceilings
Garage Location
Rear
Garage Options
Rear-entry
Side-entry
7,361 Ft
2
Total Structure
6,024 Ft
2
Total Heated
4,359 Ft
2
1st Floor
1,665 Ft
2
2nd Floor
4
Bedrooms
5.5
Bathrooms
3
Garage
2
Stories
73' 2"
Width
112' 2"
Depth
32' 10"
Height
10' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
8
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
810 Ft
2
Garage
175 Ft
2
Porch
74 Ft
2
Deck
248 Ft
2
Patio


Plan Package Options

 Select Plan Package
$2,965
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,965
$3,145
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$3,145
$4,455
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$4,455
 Need To Reverse Plan? (Optional)
$250
Readable Reverse

Reverse house plans with readable text and dimensions

$250
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
