HOUSE PLANS
START AT $2,860
SQ FT
6,056
BEDS
5
BATHS
5
STORIES
2
CARS
3
WIDTH
119'
DEPTH
62'
© copyright by designer
Photographs may reflect modified homes.
SQ FT
6,056
BEDS
5
BATHS
5
STORIES
2
CARS
3



House Plan 4842: BROOKHAVEN

This contemporary mansion plan brings it all home. The two-story foyer is flanked by the quiet study with storage closet and built-ins, and the formal dining room, in close proximity to the pantry, utility room and kitchen. The kitchen offers a free-standing island for food prep. The family room provides a warming fireplace and large banks of windows for the sun to shine though the lanai and patio.  Read more >

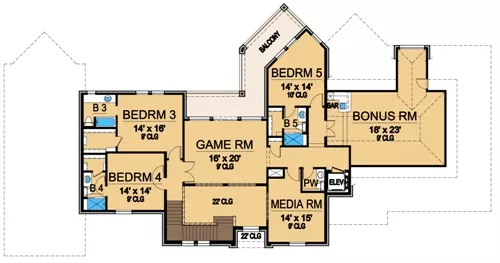

Click to Zoom In on Floor Plan

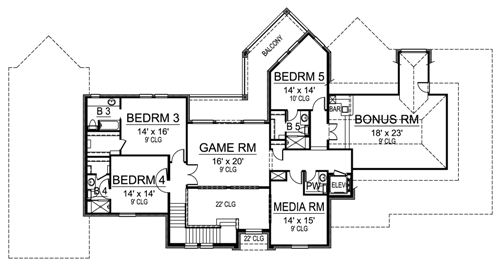

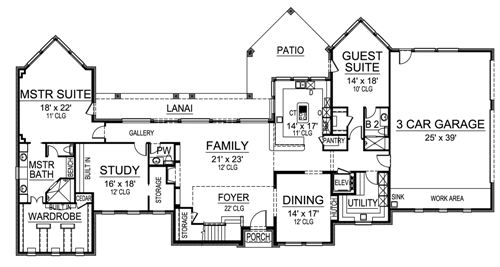

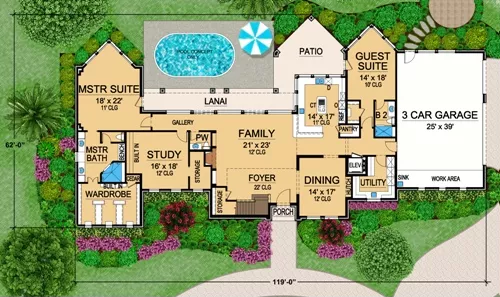

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format allowing minor changes, printing copies, and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$2,860

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$3,060

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$4,290
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$250
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Butler's Pantry
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Bedroom features
Master Bdrm Main Floor
Sitting Area
Additional features
2 Story Volume
Bonus Room
Dining Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Open Floor Plan
Vaulted Ceilings
Garage Location
Side
Garage Features
Attached
Side-entry

Hide Plan Features
Details:
View All Plan Details
7,974 Ft
2
Total Structure:
6,056 Ft
2
Total Heated:
3,539 Ft
2
1st Floor:
1,918 Ft
2
2nd Floor:
5
Bedrooms:
5
Bathrooms:
3
Garage:
2
Stories:
119' 0"
Width:
62' 0"
Depth:
30' 0"
Height:
12
Main Floor Ceiling:
9
Upper Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
Single
Dwelling Number:
Unheated Living Space
1,050 Ft
2
Garage:
29 Ft
2
Porch:
286 Ft
2
Deck:
553 Ft
2
Patio:
599 Ft
2
Bonus Room:
Exterior Styles
Contemporary

Hide Plan Details
