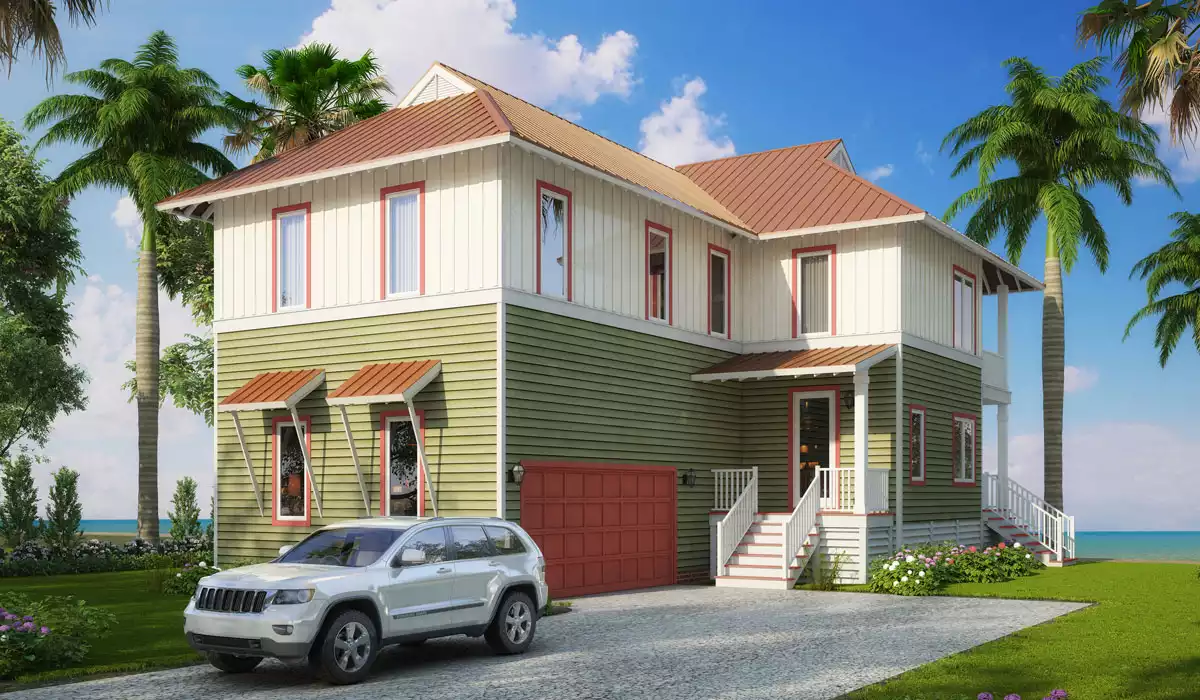

Key West Two Story Coastal Style House, Plan 1628

Sq Ft
2,300 FT²
Bed
3
Bath
2.5
Stories
2
Garage
2
Depth
57'
Width
35'
On Sale
$913.75
$1,075.00
© copyright by designer
View All 5 Images | Photographs may reflect modified home
Sq Ft
2,300 FT²
From
$913.75
Bed
3
Bath
2.5
Stories
2
Garage
2
Depth
57'
Width
35'

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

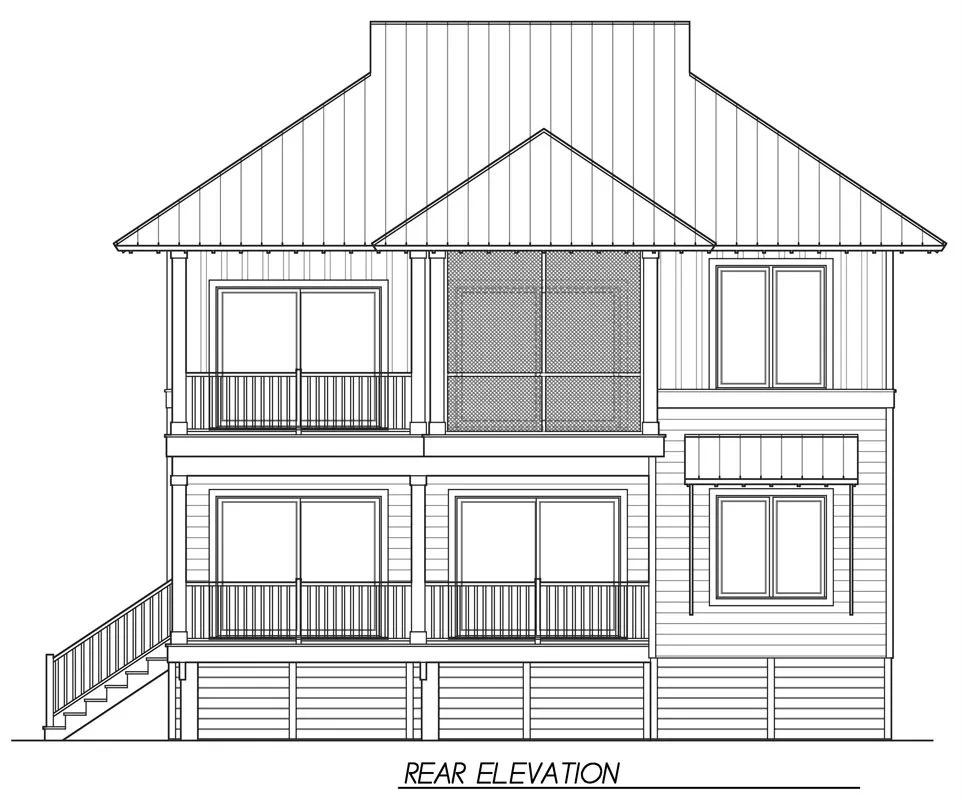

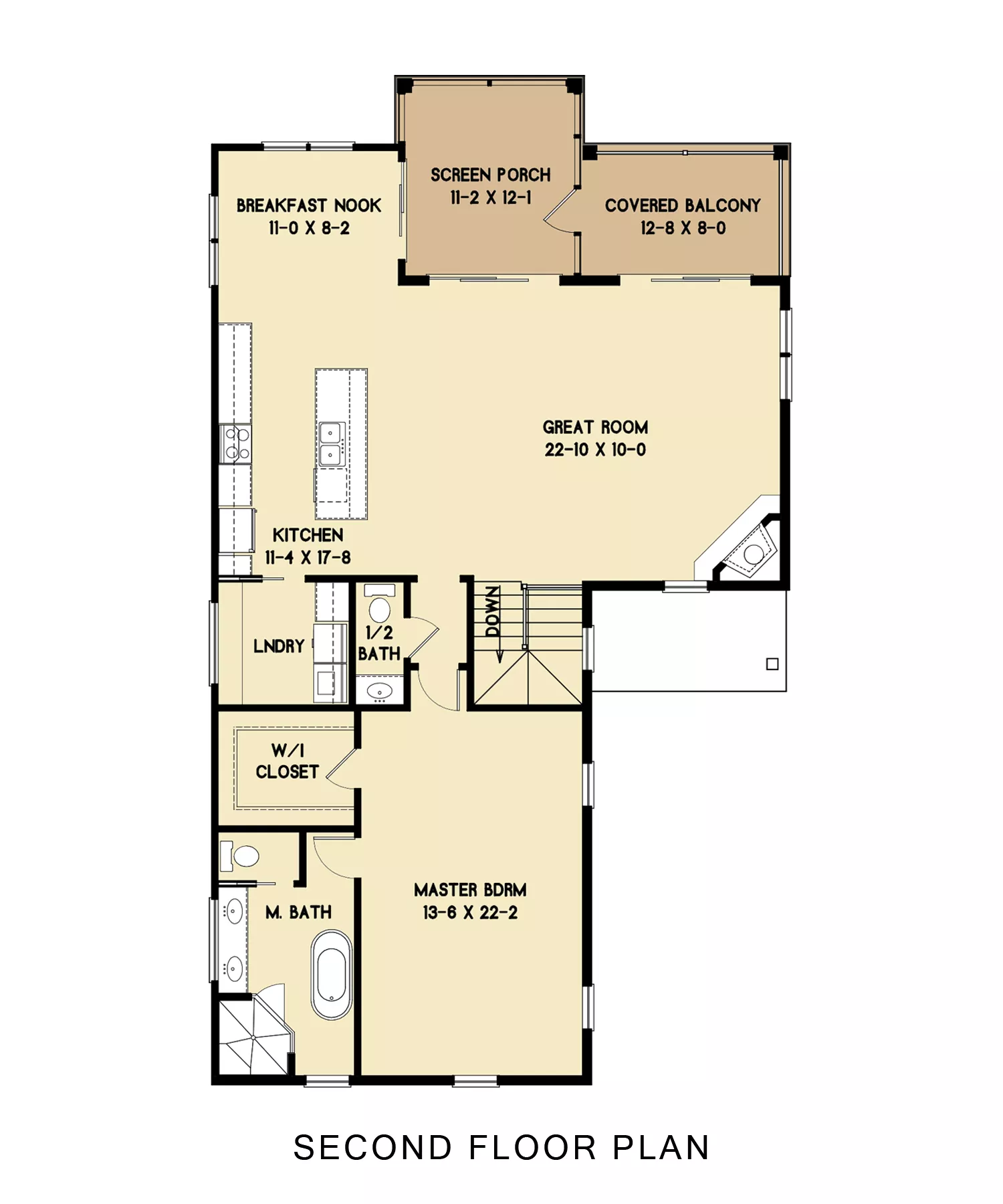

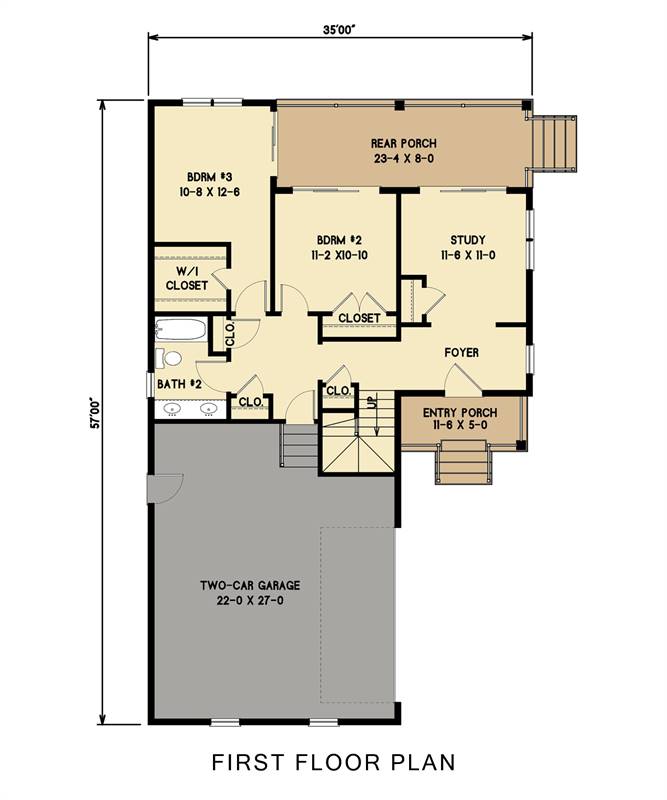

This two-story Coastal home is designed for entertaining and comfort. It boasts almost 500 SF or outdoor living space. The lower level features 2 bedrooms plus a study as well as a large rear porch. The upper level features a large maser ensuite, large open kitchen, a screened porch plus a covered balcony. The master bath features two sinks, a soaker tub as well as a separate shower.


FEATURES & DETAILS

Kitchen features
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Master Bdrm Upstairs
Separate Tub and Shower
Sitting Area
Walk-in Closet
Exterior features
Covered Rear Porch
Rear Porch
Foundation Options
Crawlspace
Lot Options
Suited for corner lot
Suited for sloping lot
Additional features
Fireplace
Foyer
Great Room
Home Office
Laundry 2nd Fl
Loft / Balcony
Open Floor Plan
Garage Location
Side
Garage Options
Attached
Side-entry
2,778 Ft
2
Total Structure
2,300 Ft
2
Total Heated
852 Ft
2
1st Floor
1,448 Ft
2
2nd Floor
3
Bedrooms
2.5
Bathrooms
2
Garage
2
Stories
35' 0"
Width
57' 0"
Depth
34' 9"
Height
9' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
8/12
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
594 Ft
2
Garage
294 Ft
2
Porch
187 Ft
2
Deck
Exterior Styles
Collections


Plan Package Options

 Select Plan Package
$250
PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$250
$1,075
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,075
$1,175
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,175
$1,865
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,865
 Need To Reverse Plan? (Optional)
$150
Readable Reverse

Reverse house plans with readable text and dimensions

$150
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
