House Plan 8406: Harbor Cove

Whether dining in the elegant Dining Room with tray ceiling or moving through the double French doors between the formal Living Room and informal Family Room, one senses the livability of this charming home. The Kitchen boasts a large pantry, cook top island and eating bar.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
3,435
Beds
3
Baths
2.1
Stories
3
Garages
2
Width
40' 4"
Depth
62' 0"
1st Floor
1,329
2nd Floor
1,917
3rd Floor
189
Bonus
156
Customize this Home Plan
Estimate Cost to Build
Free Cost Estimator >
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
Vellum
$1065
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $1065
SEE DETAILED PLAN OPTIONS
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

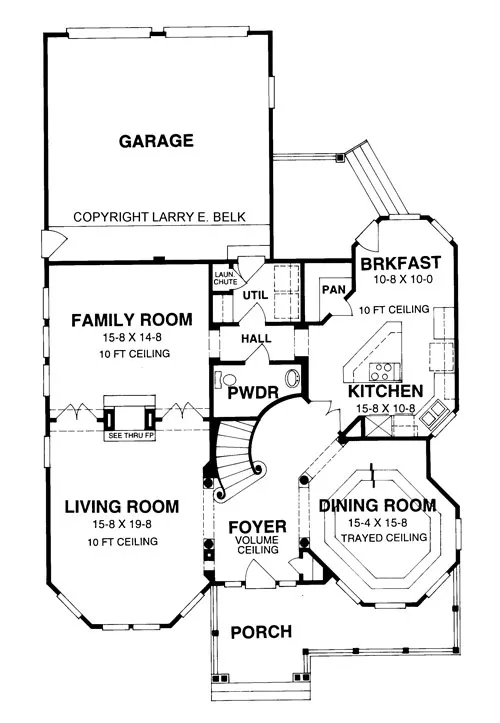

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.1
Garage: 2
Stories: 3
Exterior Style
Victorian
Dimensions
Width: 40' 4"
Height: 41' 0"
Depth: 62' 0"
Heated Living Space
Total Sq. Ft: 3,435
1st Floor: 1,329

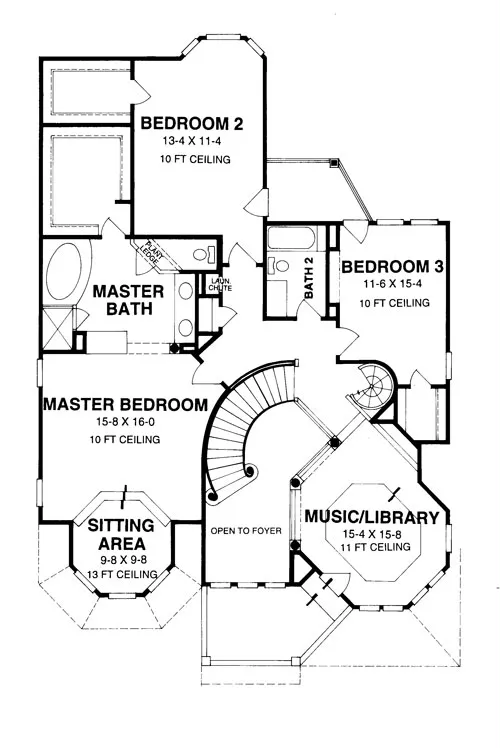

2nd Floor: 1,917

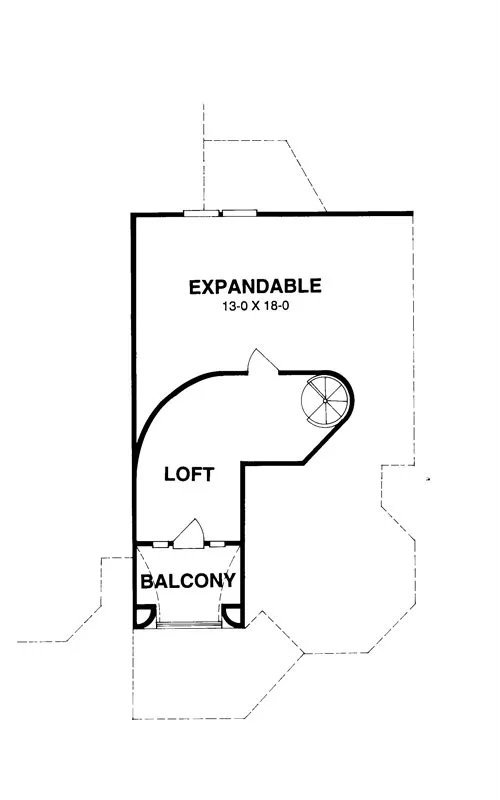

3rd Floor: 189
Bonus: 156
Unheated Living Space
Garage: 484
Porch: 330
Ceiling
Upper Ceiling Ft: 10
Main Ceiling Ft: 10
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Walk-in Closet
Walk-in Closet
Kitchen Features
Kitchen Island
Kitchen Island
Walk-in Pantry
Walk-in Pantry
Additional Room Features
2 Story Volume
2 Story Volume
Arches
Arches
Bonus Room
Bonus Room
Dining Room
Dining Room
Family Room
Family Room
Fireplace
Fireplace
Formal LR
Formal LR
Laundry 1st Fl
Laundry 1st Fl
Loft / Balcony
Loft / Balcony
Open Floor Plan
Open Floor Plan
Garage Location
Rear
Garage Features
Attached
Attached
Lot Features
Roof Pitch
Primary: 12/12
