Search Plans


Sq Ft
1,249 FT²

Beds
2

Baths
2

Stories
1

Garage
2

Depth
50'

Width
45' 9"
From
$1,400.00
© copyright by designer
View All 6 Images | Photographs may reflect modified home
Sq Ft
1,249 FT²
From
$1,400.00
Beds
2
Baths
2
Stories
1
Garage
2
Depth
50'
Width
45' 9"

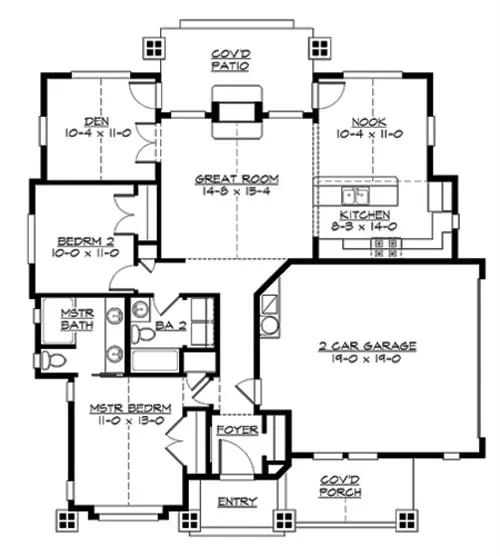

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

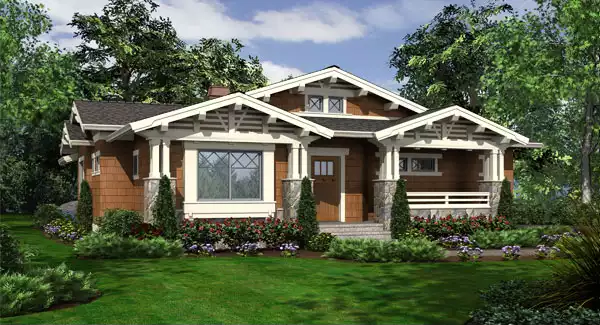

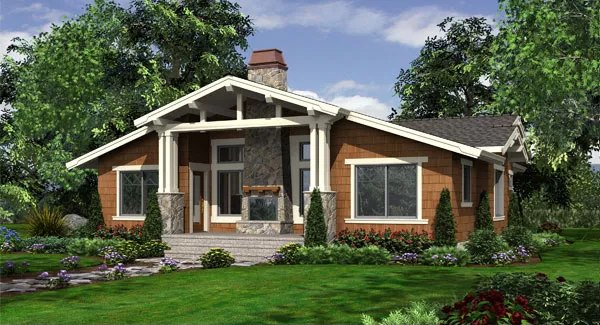

Designed to fit modern lifestyles while creatively integrating elegant arts-and-crafts details, the Fieldstone packs tremendous curb appeal and four-sided architecture into a compact footprint. The delightful facade is graced with sturdy four-piece columns atop rugged stone bases, robust beam brackets, and rustic shingle siding with inventively detailed, contrasting trim. The symmetrical entry opens to a strong internal axis that aligns through the vaulted great room and covered rear porch, linked by a dramatic see-thru fireplace. The kitchen and vaulted nook combine with the great room to create a spacious yet intimate family living area, with a vaulted den or third bedroom opposite. The vaulted master suite is located forward, with a second bedroom and bath/laundry in the center. The 2-car garage enhances the street elevation by locating its garage door on the side.


FEATURES & DETAILS

Kitchen features
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Primary Bdrm Main Floor
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Foundation Options
Crawlspace
Additional features
Fireplace
Foyer
Great Room
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Vaulted Ceilings
Garage Location
Side
Garage Options
Attached
Side-entry
1,249 Ft
2
Total Heated
2
Bedrooms
2
Bathrooms
2
Garage
1
Stories
45' 9"
Width
50' 0"
Depth
15' 6"
Height
9' 0"
Main Floor Ceiling
2x6
Framing
Truss
Roof Framing
4
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
423 Ft
2
Garage


Plan Package Options

 Select Plan Package
$1,400
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,400
$2,600
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,600
 Need To Reverse Plan? (Optional)
$300
Readable Reverse

Reverse house plans with readable text and dimensions

$300
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping
IMPORTANT NOTE: Due to state regulations, this home is not available for purchase in the State of Washington. Contact us for more information.

Note: This plan cannot be purchased for construction in Washington State.
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
