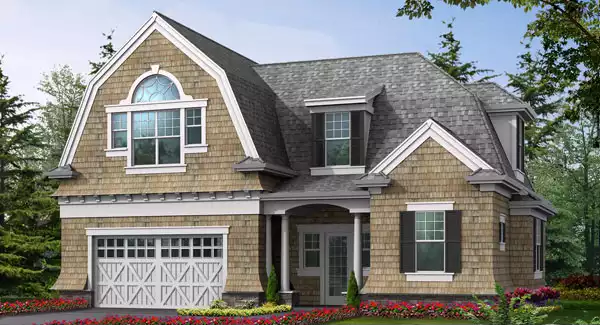

House Plan 3205: Chatham Cottage

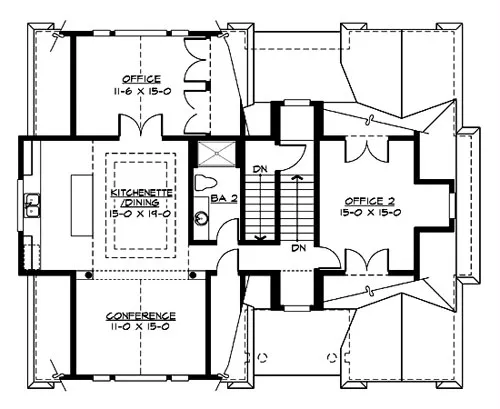

The Chatham Cottage was designed as a matching guesthouse with garage and shop for our elegant Chatham plan, but is also a delightful small starter home. Hobbyists will love the four-car tandem garage, storage and shop, while the upper floor can be configured as a spacious 2-bedroom residence or a luxurious studio or home office.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
1,285
Beds
1
Baths
1.0
Stories
2
Garages
4
Width
52' 0"
Depth
40' 0"
1st Floor
215
2nd Floor
1,070
Garage
995
Customize this Home Plan
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
PDF Files - Single Use Li
$1100
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $1100
SEE DETAILED PLAN OPTIONS
What You Should Know Before Buying! >
Note: This plan cannot be purchased for construction in Washington State.

PLAN IMAGES

Add to Favorites   Save

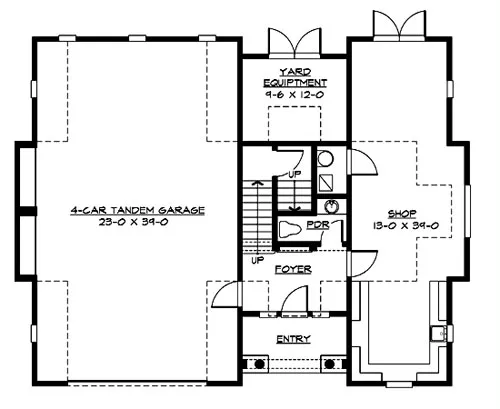

Main Floor

Main Floor
© copyright by designer

Plan Details

Basic Information
Bedrooms: 1
Bathrooms: 1.0
Garage: 4
Stories: 2
Exterior Style
Cape Cod
Cottage
Traditional
Dimensions
Width: 52' 0"
Height: 31' 6"
Depth: 40' 0"
Heated Living Space
Total Sq. Ft: 1,285
1st Floor: 215
2nd Floor: 1,070
Unheated Living Space
Garage: 995
Ceiling
Upper Ceiling Ft: 9
Main Ceiling Ft: 10
Framing Information
Framing: 2x6
Roof Framing: Truss
Bedroom Features
Split Bedrooms
Kitchen Features
Kitchen Island
Additional Room Features
Open Floor Plan
Storage Space
Workshop
Garage Location
Front
Garage Features
Attached
Tandem
With Living Space
Lot Features
Roof Pitch
Primary: 10
Secondary: 28
Dormer: 4
