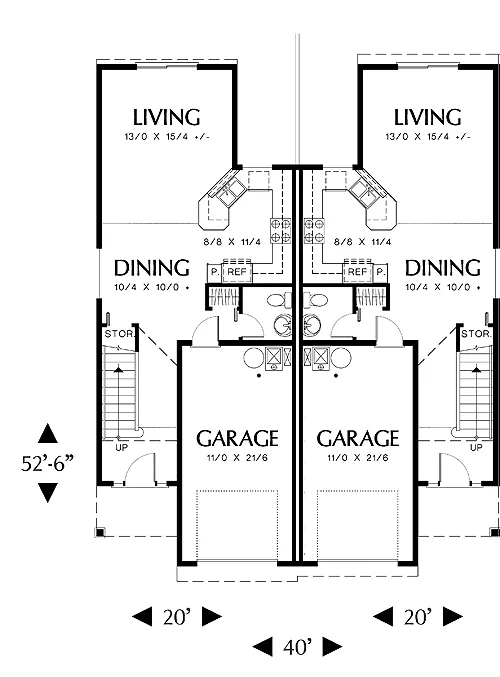

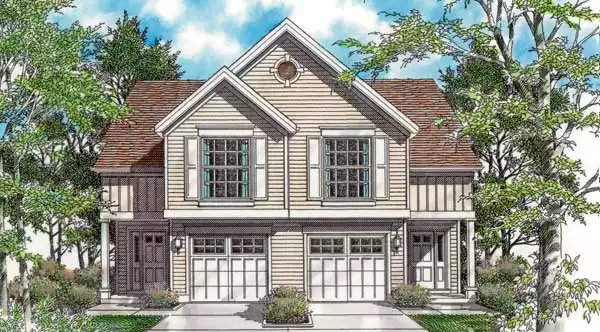

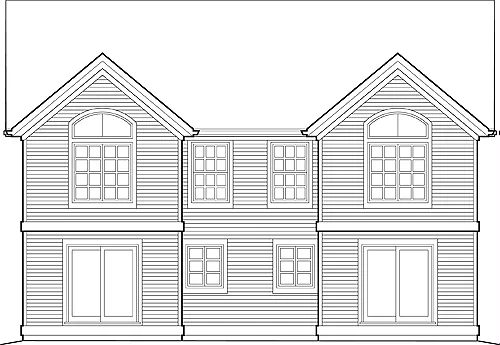

Wonderful traditional elements mark the exterior of this duplex plan and give it plenty of curb appeal. Though smaller in square footage, each side holds plenty of living space and three bedrooms. The two units are identical, though mirror imaged, with one small exception: the left-hand unit has a slightly larger master bedroom. A covered entry opens each plan and leads down a hall, past the open-rail staircase to a dining room and a living room. The living room contains sliding glass doors to the rear yard. The kitchen has a peninsula with double sink overlooking the living room. The single-car garage is accessed via a service entry with half-bath.

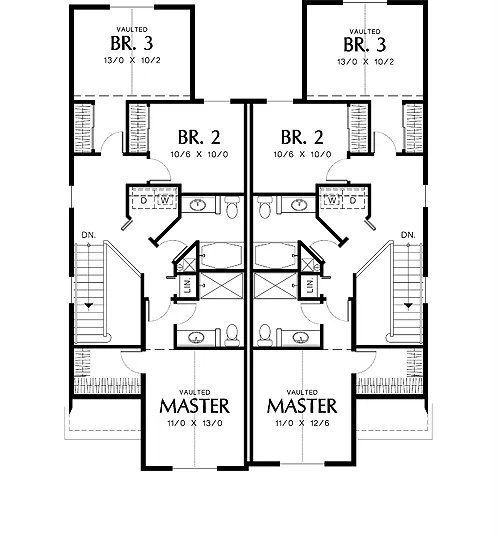

The bedrooms are on the upper level: two family bedrooms and a master suite. Both the master salon and Bedroom 3 are vaulted. A laundry alcove is also on the upper level.

FEATURES & DETAILS

Kitchen features

Country Kitchen
Peninsula / Eating Bar

Bedroom features

Primary Bdrm Upstairs
Walk-in Closet

Exterior features

Front Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for narrow lot

Additional features

Dining Room
Foyer
Great Room
Laundry 2nd Fl
Open Floor Plan
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry

2,904 Ft

Total Structure

1,452 Ft

Unit Heated

620 Ft

1st Floor

832 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

20' 0"

Width

53' 0"

Depth

30' 0"

Height

8' 0"

Main Floor Ceiling

Varies' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

8/12

Primary Roof Pitch

10/12

Gable Roof Pitch

Duplex

Dwelling Number

None

Bonus Access

Unheated Living Space

253 Ft

Garage

Exterior Styles

Craftsman

Traditional

Collections

Open Floor Plan

Texas

Plan Package Options

Important info before you buy

Select Plan Package

$2,172

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,172

$2,372

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,372

$2,422

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,422

$4,344

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$4,344

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
